TIPO DI TUBO
TYPE OF PIPE
TIPO DE TUBO
Ø
≤ mm. ≤ mm.
Tubi in rame ricotto
Annealed copper pipes
Tubos de cobre recocido
22
1,5
Tubo multistrato
Double coated aluminium
pipe (type Mepla, Alupex
and similar ones)
Tubo multicapa
32
3
VERSIONI STANDARD
STANDARD VERSIONS
VERSIONES STANDARD
A
10 - 22
Cod.
9010001
B
10 - 22
Cod.
9010005
C
1/4” - 7/8”
Cod.
9010045
D
3/8” - 7/8”
Cod.
9010040
E
10 - 26
Cod.
9010026
F
10 - 32
Cod.
9010029
Corpo/Body
Cuerpo c. 000030.2
•
•
•
•
•
•
Valigetta PVC
c.010022
PVC carrying case
Maletín de PVC c.010091
•
•
•
•
•
•
Forme/Formers/Formas
10-12-14-16
18-20-22
10-12-14-16
18-20-22
1/4”-5/16”
5/8”-1/2”
3/8”-3/4"
7/8"
3/8”-1/2”
5/8”-3/4"
7/8"
10-12-14
16-18-20
22-26
10-12-14
16-18-20
22-26-32
Controforme/Counterformers
Contraformas
10-12
14-17
18-22
14-17
18-22
10-12
14-17
18-22
14-17
18-22
10-12
14-17
18-22
26
10-12
14-17
18-22
26
32
Peso/Weight/ Peso
kg 5
kg 4,9
kg 4,9
kg 4,5
kg 5,7
kg 6,4
Ø Forme - Formers - Formas
5 - 6 - 8 - 10 - 12
1/4” - 5/16” - 3/8”
Ø Forme - Formers - Formas
10 - 12 - 14 - 15 - 16 - 17
3/8” - 1/2” - 5/8”
Ø Forme - Formers - Formas
18 - 20 - 22 - 24
3/4” - 7/8”
Ø Forme - Formers - Formas
26
Ø Forme - Formers - Formas
32
Ø Esterno del tubo
FORME
Pipe outside Ø
FORMERS
Ø Externo del tubo
FORMAS
R = mm
5
6
8
10
12
14
15
16
17
17
18
20
22
24
26
ß
32
ß
1/4”
(6,35)
5/16” 3/8”
(7,94) (9,52)
1/2”
(12,70)
5/8”
(15,88)
3/4”
(19,05)
7/8”
(22,22)
31
31
31
31
34
41
48
49
51
64
72
80
88
90
95
114
31
31
31
34
49
80
88
CONTROFORME
COUNTERFORMERS
CONTRAFORMAS
10 - 12
14 - 17
18 - 22
26
32
19

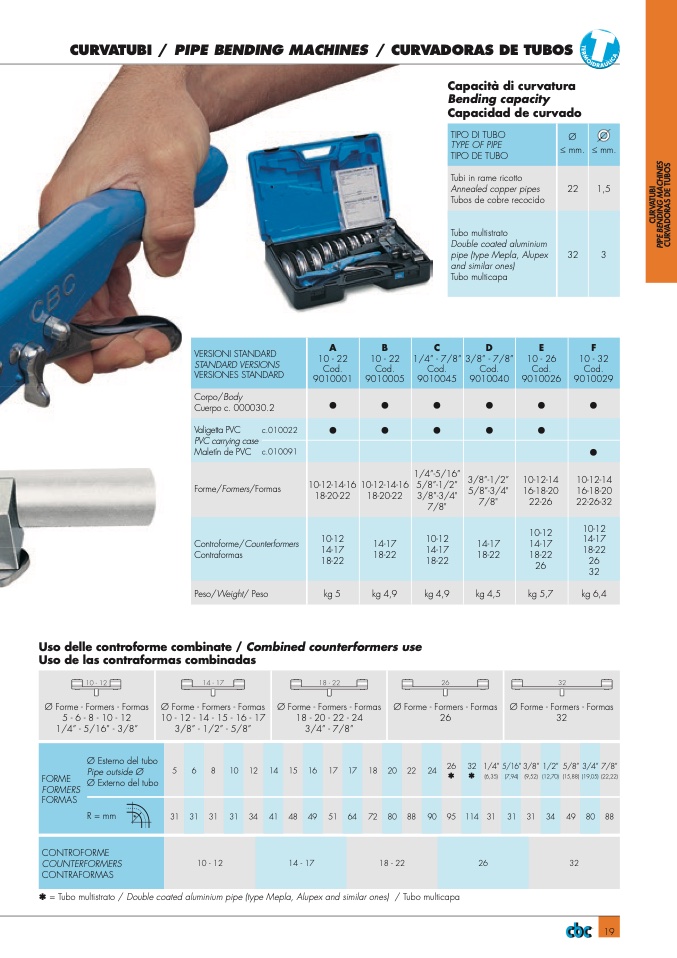

CURVATUBI / PIPE BENDING MACHINES / CURVADORAS DE TUBOS
Capacità di curvatura
Bending capacity
Capacidad de curvado
Uso delle controforme combinate / Combined counterformers use
Uso de las contraformas combinadas
ß = Tubo multistrato / Double coated aluminium pipe (type Mepla, Alupex and similar ones) / Tubo multicapa
