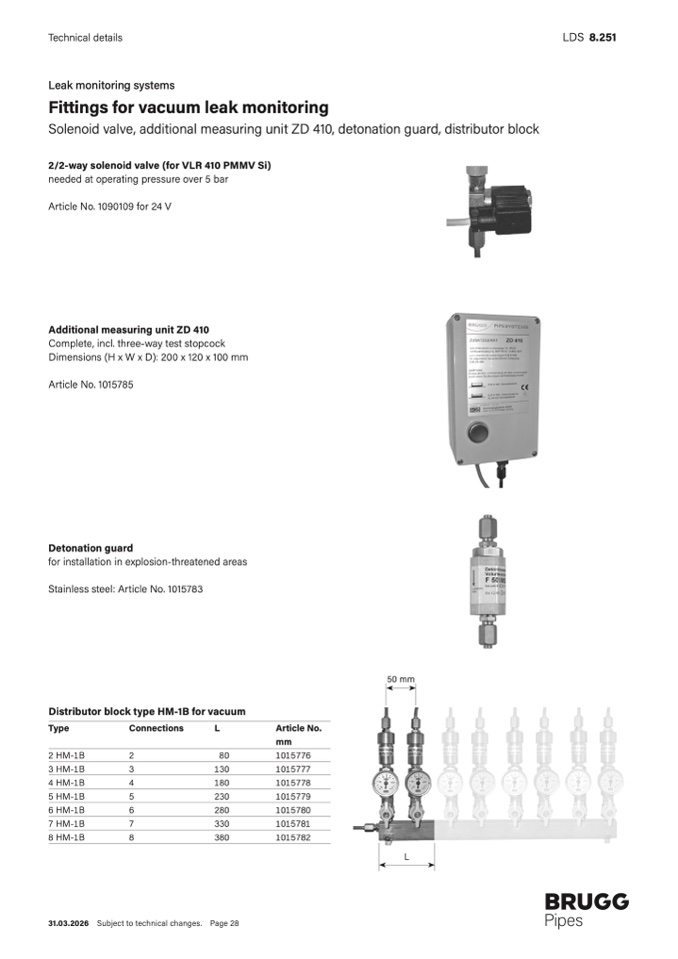

Technical details

LD

S

8.251

Leak monitoring system

s

Fittings for vacuum leak monitoring

Solenoid valve, additional measuring unit ZD 410, detonation guard, distributor bloc

k

2/2-way solenoid valve (for VLR 410 PMMV Si)

needed at operating pressure over 5 bar

Article No. 1090109 for 24

V

Additional measuring unit ZD 410

Complete, incl. three-way test stopcock

Dimensions (H x W x D): 200 x 120 x 100 mm

Article No. 1015785

Detonation guar

d

for installation in explosion-threatened areas

Stainless steel: Article No. 1015783

50 m

m

Distributor block type HM-1B for vacuu

m

Type

Connections

L

Article No.

m

m

2 HM-1B

2

80

101577

6

3 HM-1B

3

130

101577

7

4 HM-1B

4

180

101577

8

5 HM-1B

5

230

101577

9

6 HM-1B

6

280

101578

0

7 HM-1B

7

330

101578

1

8 HM-1B

8

380

101578

2

L

31.03.2026 Subject to technical changes. Page 28
