8.324

Leak monitoring system

s

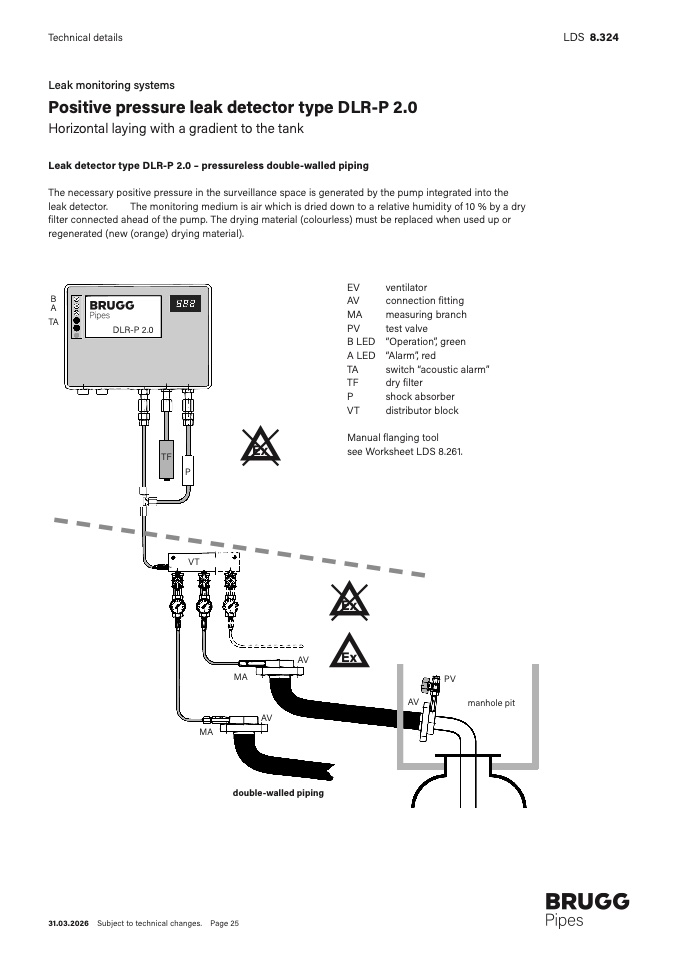

Positive pressure leak detector type DLR-P 2.0

Horizontal laying with a gradient to the tan

k

Leak detector type DLR-P 2.0 – pressureless double-walled piping

The necessary positive pressure in the surveillance space is generated by the pump integrated into the

leak detector.

The monitoring medium is air which is dried down to a relative humidity of 10 % by a dr

y

filter connected ahead of the pump. The drying material (colourless) must be replaced when used up or

regenerated (new (orange) drying material).

B

A

TA

DLR-P 2.0

EV

ventilator

AV

connection fitting

MA

measuring branch

PV

test valve

B LED “Operation”, green

A LED “Alarm”, re

d

TA

switch “acoustic alarm”

TF

dry filter

P

shock absorber

VT

distributor block

E

x

Manual flanging tool

see Worksheet LDS 8.261.

TF

P

V

T

E

x

AV

E

x

M

A

P

V

A

V

manhole pi

t

A

V

M

A

double-walled pipin

g
