Leak monitoring system

s

Positive pressure leak detector type DLR-P 2.0

Overview, technical data, constructio

n

Application

Positive pressure LD type DLR-P 2.

0

Area of use

water-hazardous

fluids with a flashpoint > 55 °C and < 55 °

C

Monitorable

pipe length

single monitorable pipe length for all SECON®-X sizes up to 500

m

or sum of all pipe lengths L max. = 2000

m

Electric connection

230 V, 50 Hz A

C

power supply 1/2

potential-free contacts ALAR

M

230 V, 16 A maximu

m

distributor block 11/1

2

Installation

Wherever possible, install inside a closed, dry room with no access for unauthorized personnel.

Installation in explosion-proof areas is not permitted

.

Extra pressur

e

integrated pump in leak detecto

r

Extra functions

via potential-free relay, contacts 11 + 1

2

Additional criteria

leak detector adapted to the operating pressure of double-walled pipin

g

Housing dimension

s

height

width

depth

210 mm 260 mm 110 m

m

Fittings

Distributor block, 2 – 8 connections to double-walled piping

.

Insulator type ET to separate the metal connection in earthed installations acc. to TRbF 52

1

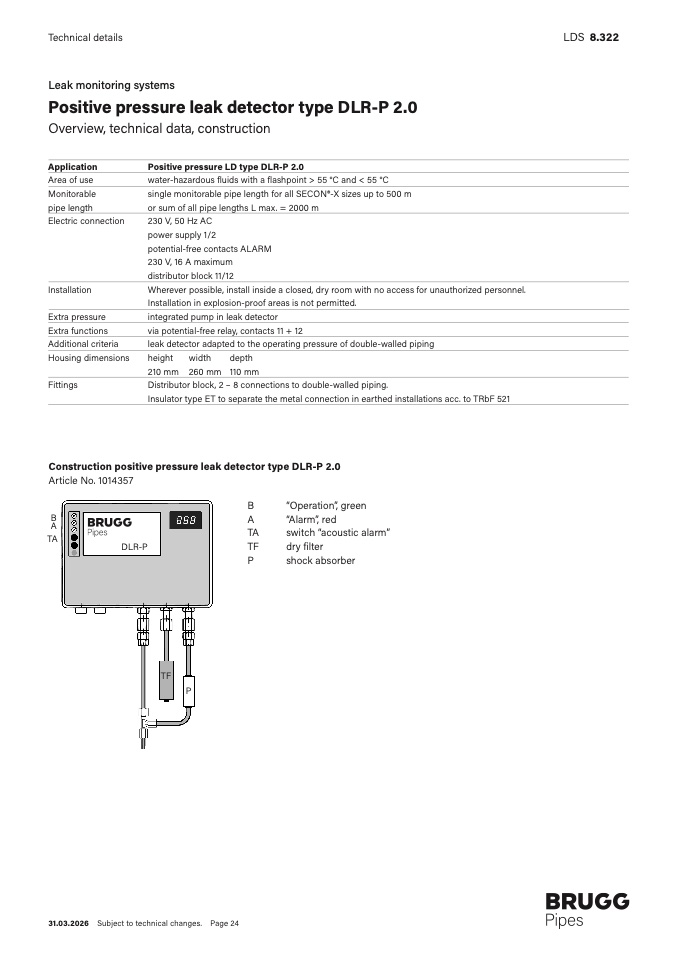

Construction positive pressure leak detector type DLR-P 2.

0

Article No. 1014357

B

A

TA

DLR-

P

B

“Operation”, gree

n

A

“Alarm”, red

TA

switch “acoustic alarm

”

TF

dry

filter

P

shock absorber

TF

P
