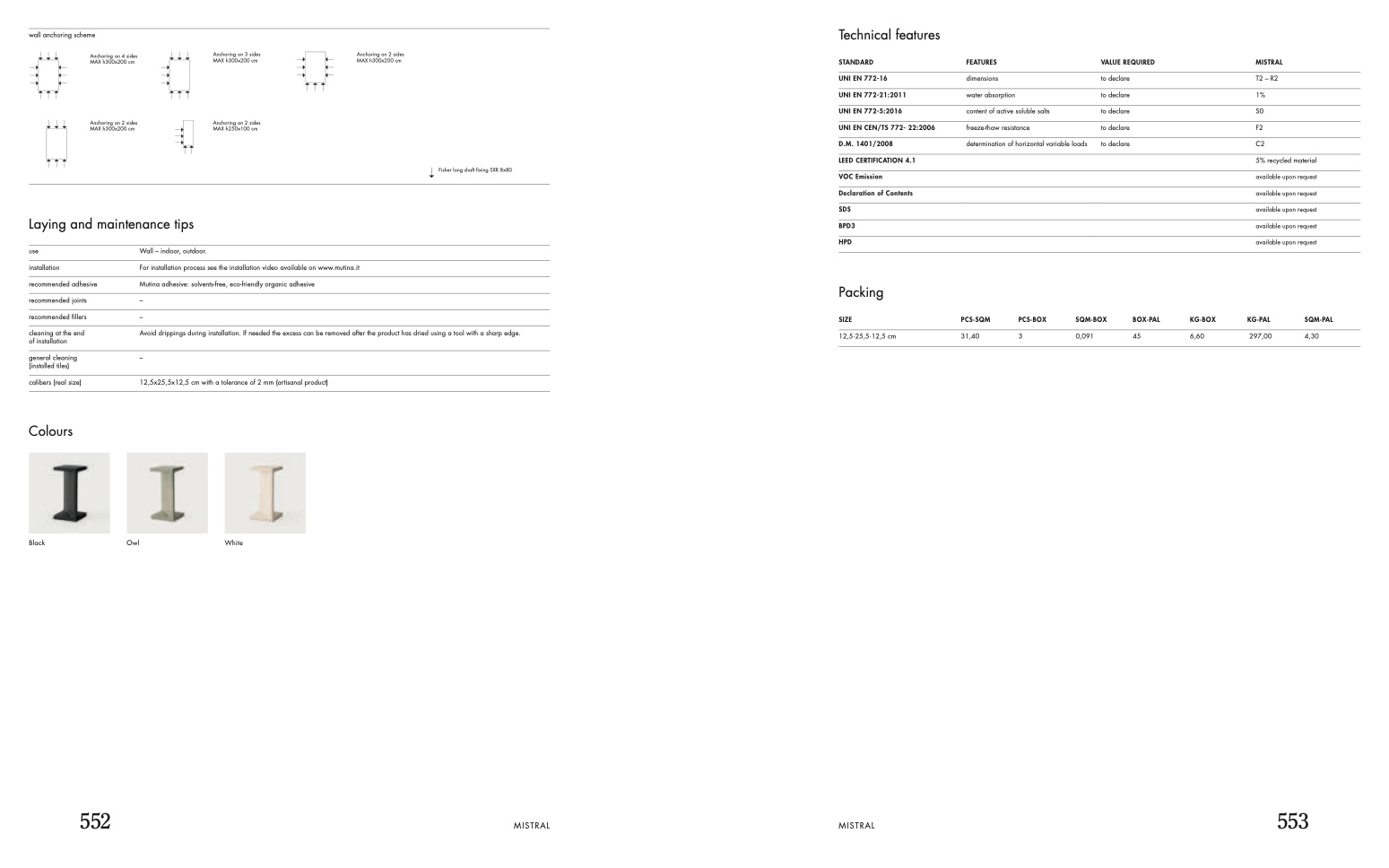

wall anchoring scheme

Technical features

STANDARD

UNI EN 772-16

UNI EN 772-21:2011

UNI EN 772-5:2016

UNI EN CEN/TS 772- 22:2006

D.M. 1401/2008

LEED CERTIFICATION 4.1

VOC Emission

Declaration of Contents

SDS

BPD3

HPD

Packing

SIZE

12,5·25,5·12,5 cm

Anchoring on 4 sides

MAX h300x200 cm

Anchoring on 2 sides

MAX h300x200 cm

Laying and maintenance tips

Anchoring on 3 sides

MAX h300x200 cm

Anchoring on 2 sides

MAX h250x100 cm

Anchoring on 2 sides

MAX h300x200 cm

FEATURES

dimensions

water absorption

content of active soluble salts

freeze-thaw resistance

determination of horizontal variable loads

VALUE REQUIRED

MISTRAL

T2 – R2

1%

S0

F2

C2

5% recycled material

available upon request

available upon request

available upon request

available upon request

available upon request

KG·PAL

SQM·PAL

297,00

4,30

to declare

to declare

to declare

to declare

to declare

Fisher long shaft fixing SXR 8x80

use

installation

recommended adhesive

recommended joints

recommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Colours

Black

Wall – indoor, outdoor.

For installation process see the installation video available on www.mutina.it

Mutina adhesive: solvents-free, eco-friendly organic adhesive

–

–

Avoid drippings during installation. If needed the excess can be removed after the product has dried using a tool with a sharp edge.

–

12,5x25,5x12,5 cm with a tolerance of 2 mm (artisanal product)

White

PCS·SQM

PCS·BOX

31,40

3

SQM·BOX

0,091

BOX·PAL

45

KG·BOX

6,60

552

MISTRAL

MISTRAL

553

Owl
