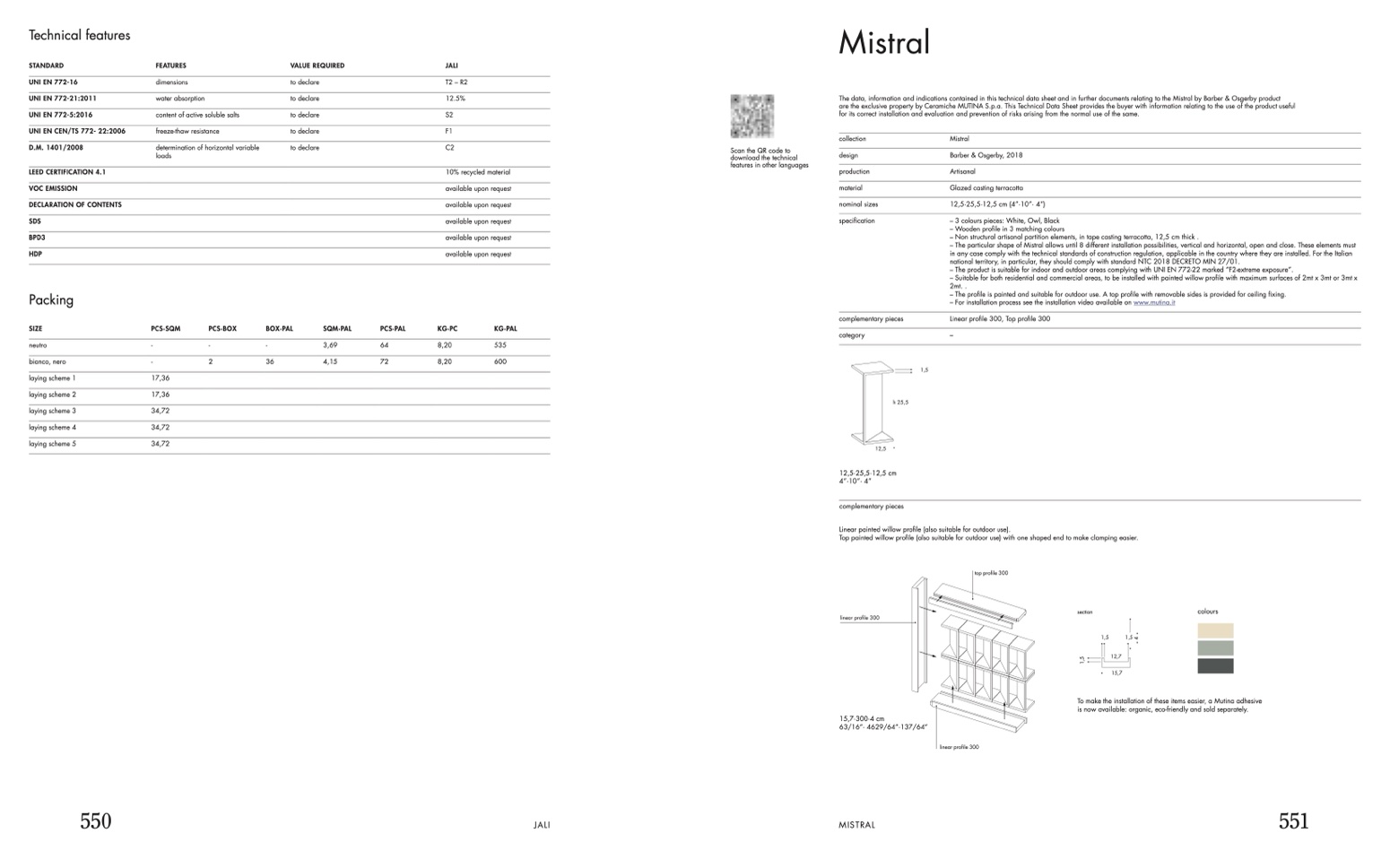

Technical features
Mistral
The data, information and indications contained in this technical data sheet and in further documents relating to the Mistral by Barber & Osgerby product
are the exclusive property by Ceramiche MUTINA S.p.a. This Technical Data Sheet provides the buyer with information relating to the use of the product useful
for its correct installation and evaluation and prevention of risks arising from the normal use of the same.
STANDARD
UNI EN 772-16
UNI EN 772-21:2011
UNI EN 772-5:2016
UNI EN CEN/TS 772- 22:2006
D.M. 1401/2008
LEED CERTIFICATION 4.1
VOC EMISSION
DECLARATION OF CONTENTS
SDS
BPD3
HDP
Packing
SIZE
neutro
bianco, nero
laying scheme 1
laying scheme 2
laying scheme 3
laying scheme 4
laying scheme 5
FEATURES
dimensions
water absorption
content of active soluble salts
freeze-thaw resistance
determination of horizontal variable
loads
VALUE REQUIRED
JALI
to declare
T2 – R2
to declare
12.5%
to declare
S2
to declare
F1
to declare
C2
10% recycled material
available upon request
available upon request
available upon request
available upon request
available upon request
Scan the QR code to
download the technical
features in other languages
collection
design
production
material
nominal sizes
specification
complementary pieces
category
Mistral
Barber & Osgerby, 2018
Artisanal
Glazed casting terracotta
12,5·25,5·12,5 cm (4”·10”· 4”)
– 3 colours pieces: White, Owl, Black
– Wooden profile in 3 matching colours
– Non structural artisanal partition elements, in tape casting terracotta, 12,5 cm thick .
– The particular shape of Mistral allows until 8 different installation possibilities, vertical and horizontal, open and close. These elements must
in any case comply with the technical standards of construction regulation, applicable in the country where they are installed. For the Italian
national territory, in particular, they should comply with standard NTC 2018 DECRETO MIN 27/01.
– The product is suitable for indoor and outdoor areas complying with UNI EN 772-22 marked “F2-extreme exposure”.
– Suitable for both residential and commercial areas, to be installed with painted willow profile with maximum surfaces of 2mt x 3mt or 3mt x
2mt. .
– The profile is painted and suitable for outdoor use. A top profile with removable sides is provided for ceiling fixing.
– For installation process see the installation video available on www.mutina.it
550
JALI
MISTRAL
551
PCS·SQM
PCS·BOX
BOX·PAL
SQM·PAL
PCS·PAL
KG·PC
KG·PAL
-
-
-
3,6
9
6
4
8,2
0
535
-
2
3
6
4,1
5
7
2
8,2
0
600
17,36
17,36
34,72
34,72
34,72
Linear profile 300, Top profile 300
–
12,5·25,5·12,5 cm
4”·10”· 4”
complementary pieces
1,5
h 25,5
12,5
Linear painted willow profile (also suitable for outdoor use).
Top painted willow profile (also suitable for outdoor use) with one shaped end to make clamping easier.
linear profile 300
15,7·300·4 cm
63/16”· 4629/64”·137/64”
section
1,5
colours
linear profile 300
top profile 300
12,7
15,7
1,5
To make the installation of these items easier, a Mutina adhesive
is now available: organic, eco-friendly and sold separately.
