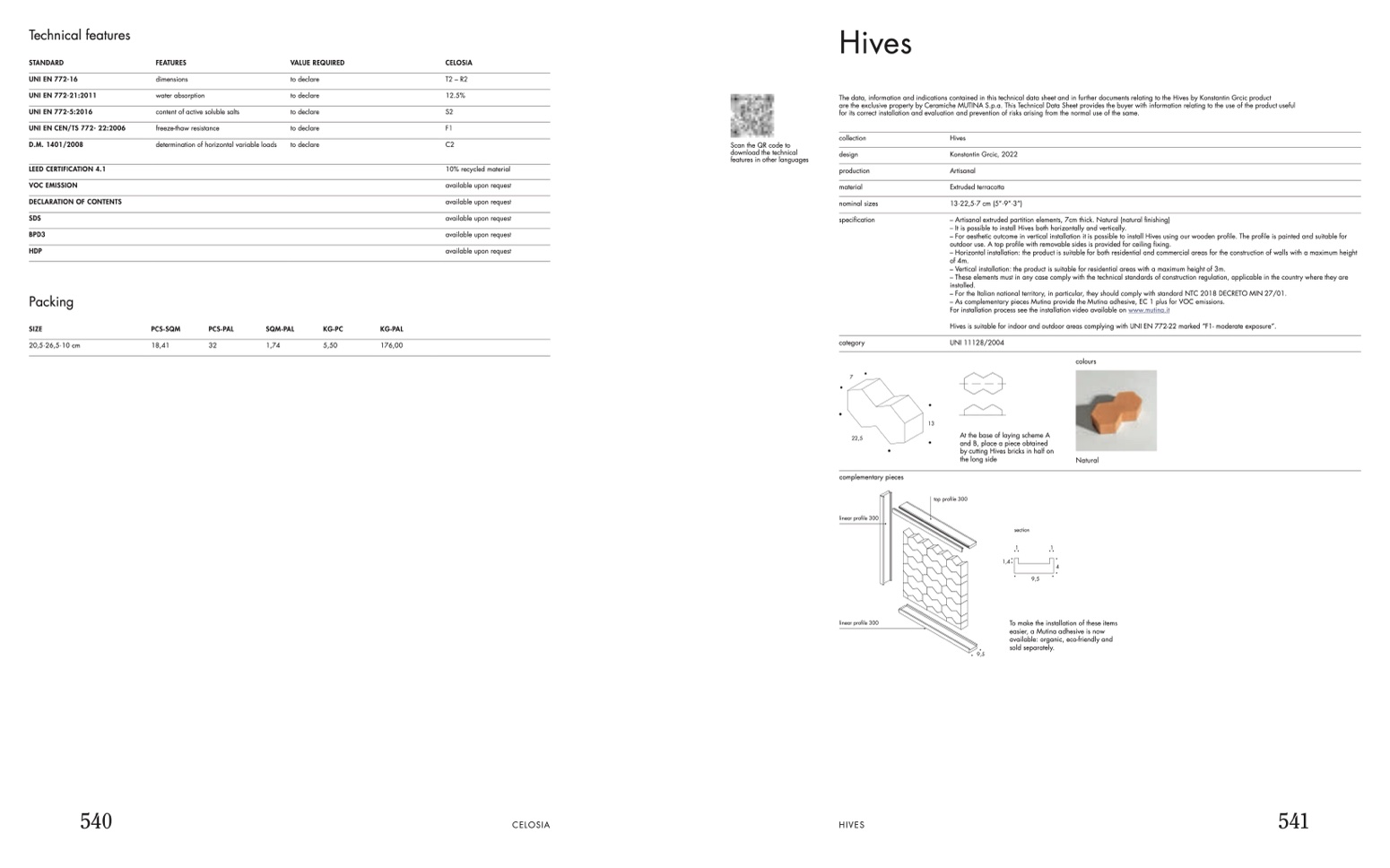

Technical features

STANDARD

UNI EN 772-16

UNI EN 772-21:2011

UNI EN 772-5:2016

UNI EN CEN/TS 772- 22:2006

D.M. 1401/2008

LEED CERTIFICATION 4.1

VOC EMISSION

DECLARATION OF CONTENTS

SDS

BPD3

HDP

Packing

SIZE

20,5·26,5·10 cm

FEATURES

dimensions

water absorption

content of active soluble salts

freeze-thaw resistance

determination of horizontal variable loads

VALUE REQUIRED

CELOSIA

T2 – R2

12.5%

S2

F1

C2

10% recycled material

available upon request

available upon request

available upon request

available upon request

available upon request

Hives

The data, information and indications contained in this technical data sheet and in further documents relating to the Hives by Konstantin Grcic product

are the exclusive property by Ceramiche MUTINA S.p.a. This Technical Data Sheet provides the buyer with information relating to the use of the product useful

for its correct installation and evaluation and prevention of risks arising from the normal use of the same.

to declare

to declare

to declare

to declare

to declare

Scan the QR code to

download the technical

features in other languages

collection

design

production

material

nominal sizes

specification

category

7

22,5

complementary pieces

linear profile 300

linear profile 300

Hives

Konstantin Grcic, 2022

Artisanal

Extruded terracotta

13·22,5·7 cm (5”·9”·3”)

– Artisanal extruded partition elements, 7cm thick. Natural (natural finishing)

– It is possible to install Hives both horizontally and vertically.

– For aesthetic outcome in vertical installation it is possible to install Hives using our wooden profile. The profile is painted and suitable for

outdoor use. A top profile with removable sides is provided for ceiling fixing.

– Horizontal installation: the product is suitable for both residential and commercial areas for the construction of walls with a maximum height

of 4m.

– Vertical installation: the product is suitable for residential areas with a maximum height of 3m.

– These elements must in any case comply with the technical standards of construction regulation, applicable in the country where they are

installed.

– For the Italian national territory, in particular, they should comply with standard NTC 2018 DECRETO MIN 27/01.

– As complementary pieces Mutina provide the Mutina adhesive, EC 1 plus for VOC emissions.

For installation process see the installation video available on www.mutina.it

Hives is suitable for indoor and outdoor areas complying with UNI EN 772-22 marked “F1- moderate exposure”.

UNI 11128/2004

PCS·SQM

18,41

PCS·PAL

32

SQM·PAL

1,74

KG·PC

5,50

KG·PAL

176,00

13

colours

Natural

At the base of laying scheme A

and B, place a piece obtained

by cutting Hives bricks in half on

the long side

top profile 300

section

1

1

1,4

4

9,5

540

CELOSIA

HIVES

541

9,5

To make the installation of these items

easier, a Mutina adhesive is now

available: organic, eco-friendly and

sold separately.
