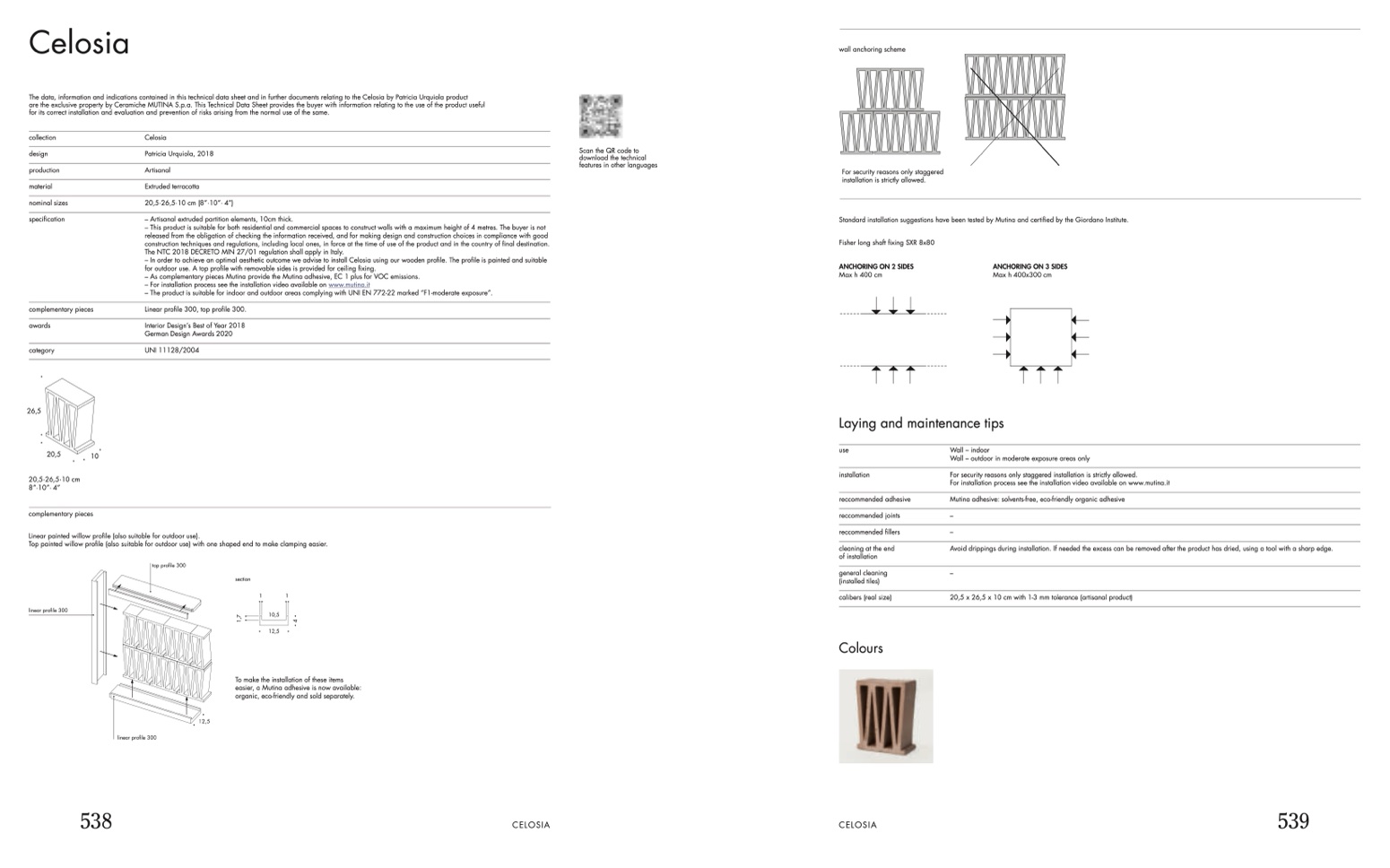

Celosia

The data, information and indications contained in this technical data sheet and in further documents relating to the Celosia by Patricia Urquiola product

are the exclusive property by Ceramiche MUTINA S.p.a. This Technical Data Sheet provides the buyer with information relating to the use of the product useful

for its correct installation and evaluation and prevention of risks arising from the normal use of the same.

wall anchoring scheme

collection

design

production

material

nominal sizes

specification

complementary pieces

awards

Celosia

Patricia Urquiola, 2018

Artisanal

Extruded terracotta

20,5·26,5·10 cm (8”·10”· 4”)

– Artisanal extruded partition elements, 10cm thick.

– This product is suitable for both residential and commercial spaces to construct walls with a maximum height of 4 metres. The buyer is not

released from the obligation of checking the information received, and for making design and construction choices in compliance with good

construction techniques and regulations, including local ones, in force at the time of use of the product and in the country of final destination.

The NTC 2018 DECRETO MIN 27/01 regulation shall apply in Italy.

– In order to achieve an optimal aesthetic outcome we advise to install Celosia using our wooden profile. The profile is painted and suitable

for outdoor use. A top profile with removable sides is provided for ceiling fixing.

– As complementary pieces Mutina provide the Mutina adhesive, EC 1 plus for VOC emissions.

– For installation process see the installation video available on www.mutina.it

– The product is suitable for indoor and outdoor areas complying with UNI EN 772-22 marked “F1-moderate exposure”.

Linear profile 300, top profile 300.

Interior Design’s Best of Year 2018

German Design Awards 2020

UNI 11128/2004

Scan the QR code to

download the technical

features in other languages

For security reasons only staggered

installation is strictly allowed.

Standard installation suggestions have been tested by Mutina and certified by the Giordano Institute.

Fisher long shaft fixing SXR 8x80

category

26,5

20,5

20,5·26,5·10 cm

8”·10”· 4”

complementary pieces

Laying and maintenance tips

10

use

installation

reccommended adhesive

reccommended joints

reccommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Colours

Wall – indoor

Wall – outdoor in moderate exposure areas only

For security reasons only staggered installation is strictly allowed.

For installation process see the installation video available on www.mutina.it

Mutina adhesive: solvents-free, eco-friendly organic adhesive

–

–

Avoid drippings during installation. If needed the excess can be removed after the product has dried, using a tool with a sharp edge.

–

20,5 x 26,5 x 10 cm with 1-3 mm tolerance (artisanal product)

Linear painted willow profile (also suitable for outdoor use).

Top painted willow profile (also suitable for outdoor use) with one shaped end to make clamping easier.

linear profile 300

section

1

1

10,5

12,5

To make the installation of these items

easier, a Mutina adhesive is now available:

organic, eco-friendly and sold separately.

538

CELOSIA

CELOSIA

539

linear profile 300

top profile 300

12,5

ANCHORING ON 2 SIDES

Max h 400 cm

ANCHORING ON 3 SIDES

Max h 400x300 cm

1

,

7

4
