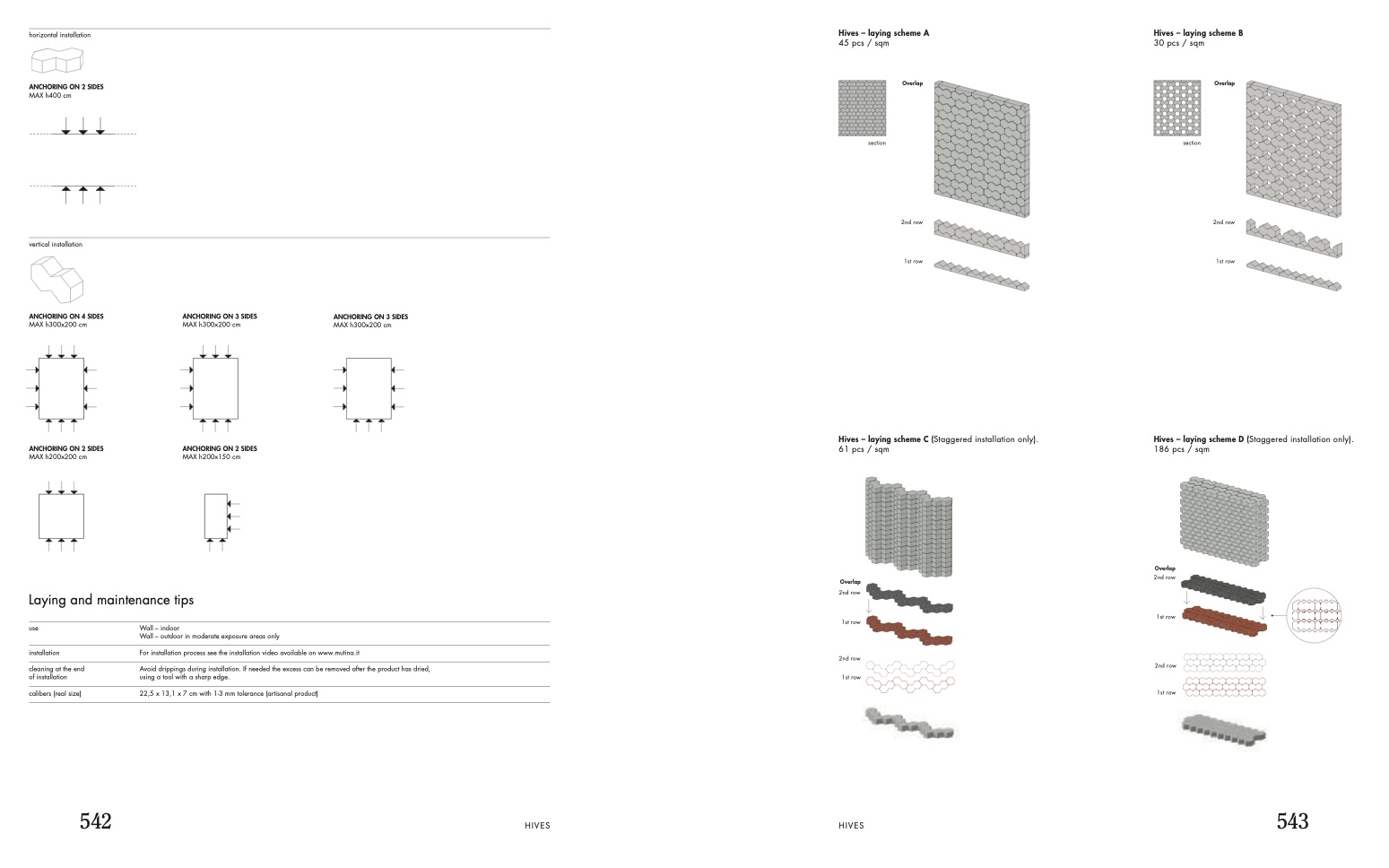

horizontal installation

Hives – laying scheme A

45 pcs / sqm

section

Hives – laying scheme B

30 pcs / sqm

Overlap

ANCHORING ON 2 SIDES

MAX h400 cm

Overlap

vertical installation

ANCHORING ON 4 SIDES

MAX h300x200 cm

ANCHORING ON 2 SIDES

MAX h200x200 cm

2nd row

1st row

2nd row

1st row

Laying and maintenance tips

Hives – laying scheme C (Staggered installation only).

61 pcs / sqm

Overlap

2nd row

1st row

2nd row

1st row

Hives – laying scheme D (Staggered installation only).

186 pcs / sqm

Overlap

2nd row

1st row

2nd row

1st row

use

installation

cleaning at the end

of installation

calibers (real size)

Wall – indoor

Wall – outdoor in moderate exposure areas only

542

HIVES

HIVES

543

ANCHORING ON 3 SIDES

MAX h300x200 cm

ANCHORING ON 2 SIDES

MAX h200x150 cm

ANCHORING ON 3 SIDES

MAX h300x200 cm

For installation process see the installation video available on www.mutina.it

Avoid drippings during installation. If needed the excess can be removed after the product has dried,

using a tool with a sharp edge.

22,5 x 13,1 x 7 cm with 1-3 mm tolerance (artisanal product)

section
