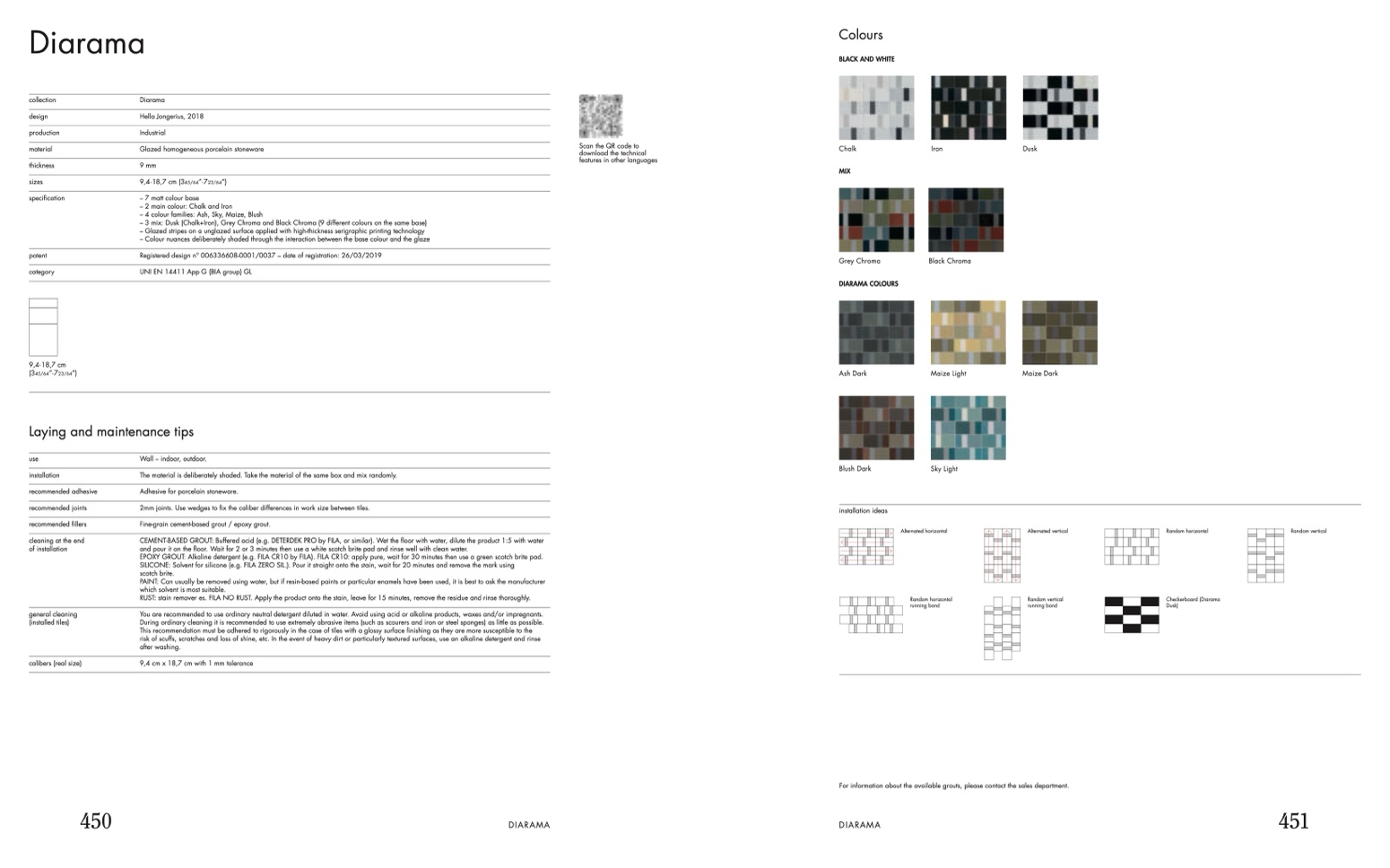

Diarama

Colours

BLACK AND WHITE

Chalk

MIX

Grey Chroma

DIARAMA COLOURS

Ash Dark

Blush Dark

installation ideas

collection

design

production

material

thickness

sizes

specification

patent

category

9,4·18,7 cm

(3

45/64

”·7

23/64

”)

Diarama

Hella Jongerius, 2018

Industrial

Glazed homogeneous porcelain stoneware

9 mm

9,4·18,7 cm (3

45/64

”·7

23/64

”)

– 7 matt colour base

– 2 main colour: Chalk and Iron

– 4 colour families: Ash, Sky, Maize, Blush

– 3 mix: Dusk (Chalk+Iron), Grey Chroma and Black Chroma (9 different colours on the same base)

– Glazed stripes on a unglazed surface applied with high-thickness serigraphic printing technology

– Colour nuances deliberately shaded through the interaction between the base colour and the glaze

Registered design n° 006336608-0001/0037 – date of registration: 26/03/2019

UNI EN 14411 App G (BIA group) GL

Scan the QR code to

download the technical

features in other languages

Iron

Black Chroma

Maize Light

Sky Light

Alternated horizontal

Random horizontal

running bond

Dusk

Maize Dark

Laying and maintenance tips

use

installation

recommended adhesive

recommended joints

recommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Wall – indoor, outdoor.

The material is deliberately shaded. Take the material of the same box and mix randomly.

Adhesive for porcelain stoneware.

2mm joints. Use wedges to fix the caliber differences in work size between tiles.

Fine-grain cement-based grout / epoxy grout.

CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water

and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.

EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.

SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using

scotch brite.

PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer

which solvent is most suitable.

RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.

You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.

During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.

This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the

risk of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse

after washing.

9,4 cm x 18,7 cm with 1 mm tolerance

Alternated vertical

Random vertical

running bond

Random horizontal

Checkerboard (Diarama

Dusk)

Random vertical

450

DIARAMA

DIARAMA

451

For information about the available grouts, please contact the sales department.
