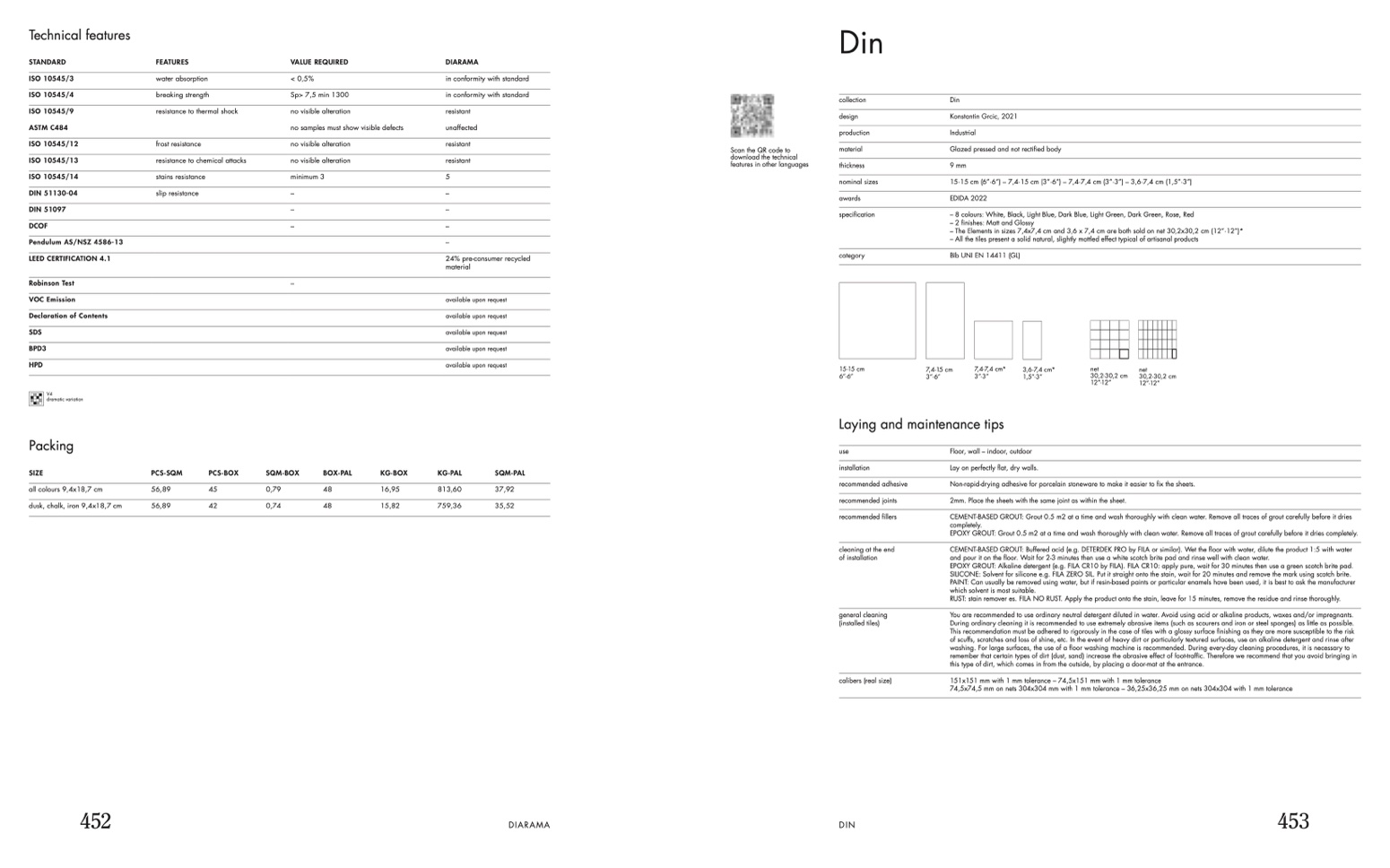

Technical features
STANDARD
ISO 10545/3
ISO 10545/4
ISO 10545/9
ASTM C484
ISO 10545/12
ISO 10545/13
ISO 10545/14
DIN 51130-04
DIN 51097
DCOF
Pendulum AS/NSZ 4586-13
LEED CERTIFICATION 4.1
Robinson Test
VOC Emission
Declaration of Contents
SDS
BPD3
HPD
FEATURES
water absorption
breaking strength
resistance to thermal shock
frost resistance
resistance to chemical attacks
VALUE REQUIRED
< 0,5%
Sp> 7,5 min 1300
no visible alteration
no samples must show visible defects
DIARAMA
in conformity with standard
in conformity with standard
resistant
unaffected
resistant
resistant
5
–
–
–
–
24% pre-consumer recycled
material
available upon request
available upon request
available upon request
available upon request
available upon request
Din
collection
design
production
material
thickness
nominal sizes
awards
specification
category
15·15 cm
6”·6”
Din
Konstantin Grcic, 2021
Industrial
Glazed pressed and not rectified body
9 mm
15·15 cm (6”·6”) – 7,4·15 cm (3”·6”) – 7,4·7,4 cm (3”·3”) – 3,6·7,4 cm (1,5”·3”)
EDIDA 2022
– 8 colours: White, Black, Light Blue, Dark Blue, Light Green, Dark Green, Rose, Red
– 2 finishes: Matt and Glossy
– The Elements in sizes 7,4x7,4 cm and 3,6 x 7,4 cm are both sold on net 30,2x30,2 cm (12”·12”)*
– All the tiles present a solid natural, slightly mottled effect typical of artisanal products
no visible alteration
no visible alteration
minimum 3
Scan the QR code to
download the technical
features in other languages
stains resistance
slip resistance
–
–
–
–
BIb UNI EN 14411 (GL)
7,4·15 cm
3”·6”
7,4·7,4 cm*
3”·3”
3,6·7,4 cm*
1,5”·3”
net
30,2·30,2 cm
12”·12”
net
30,2·30,2 cm
12”·12”
V4
dramatic variation
Packing
SIZE
all colours 9,4x18,7 cm
dusk, chalk, iron 9,4x18,7 cm
PCS·SQM
56,89
56,89
PCS·BOX
45
42
SQM·BOX
0,79
0,74
BOX·PAL
48
48
KG·BOX
16,95
15,82
KG·PAL
813,60
759,36
SQM·PAL
37,92
35,52
use
installation
recommended adhesive
recommended joints
recommended fillers
cleaning at the end
of installation
general cleaning
(installed tiles)
calibers (real size)
Floor, wall – indoor, outdoor
Lay on perfectly flat, dry walls.
Non-rapid-drying adhesive for porcelain stoneware to make it easier to fix the sheets.
2mm. Place the sheets with the same joint as within the sheet.
CEMENT-BASED GROUT: Grout 0.5 m2 at a time and wash thoroughly with clean water. Remove all traces of grout carefully before it dries
completely.
EPOXY GROUT: Grout 0.5 m2 at a time and wash thoroughly with clean water. Remove all traces of grout carefully before it dries completely.
CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA or similar). Wet the floor with water, dilute the product 1:5 with water
and pour it on the floor. Wait for 2-3 minutes then use a white scotch brite pad and rinse well with clean water.
EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.
SILICONE: Solvent for silicone e.g. FILA ZERO SIL. Put it straight onto the stain, wait for 20 minutes and remove the mark using scotch brite.
PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer
which solvent is most suitable.
RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.
You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.
During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.
This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk
of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after
washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to
remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing in
this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.
151x151 mm with 1 mm tolerance – 74,5x151 mm with 1 mm tolerance
74,5x74,5 mm on nets 304x304 mm with 1 mm tolerance – 36,25x36,25 mm on nets 304x304 with 1 mm tolerance
