BG

T

Technical details

1.81

0

BIOFLEX Pipe system

Biogas Technology

Type CNW

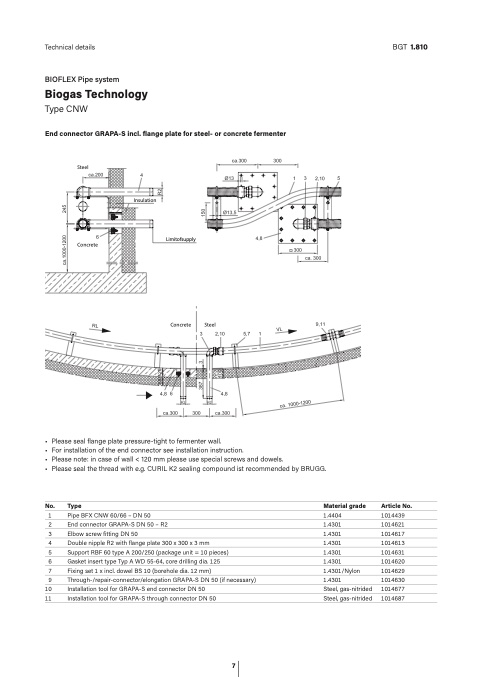

End connector GRAPA-S incl.

flange plate for steel- or concrete fermente

r

Steel

Insulation

Limit

of

suppl

y

Concrete

Concrete

Stee

l

• Please seal

flange plate pressure-tight to fermenter wall

.

• For installation of the end connector see installation instruction.

• Please note: in case of wall < 120 mm please use special screws and dowels.

• Please seal the thread with e.g. CURIL K2 sealing compound ist recommended by BRUGG

.

No.

Type

Material grade

Article No

.

1

Pipe BFX CNW 60/66 – DN 50

1.4404

101443

9

2

End connector GRAPA-S DN 50 – R2

1.4301

101462

1

3

Elbow screw

fitting DN 50

1.4301

101461

7

4

Double nipple R2 with flange plate 300 x 300 x 3 mm

1.4301

101461

3

5

Support RBF 60 type A 200/250 (package unit = 10 pieces)

1.4301

101463

1

6

Gasket insert type Typ A WD 55-64, core drilling dia. 125

1.4301

101462

0

7

Fixing set 1 x incl. dowel BS 10 (borehole dia. 12 mm)

1.4301/Nylon

1014629

9

Through-/repair-connector/elongation GRAPA-S DN 50 (if necessary)

1.4301

101463

0

10

Installation tool for GRAPA-S end connector DN 50

Steel, gas-nitrided 1014677

11

Installation tool for GRAPA-S through connector DN 50

Steel, gas-nitrided 1014687

24.02.2021 Subject to change without notice. T +49 5031 170-0 · brugg.de Page

2

7
