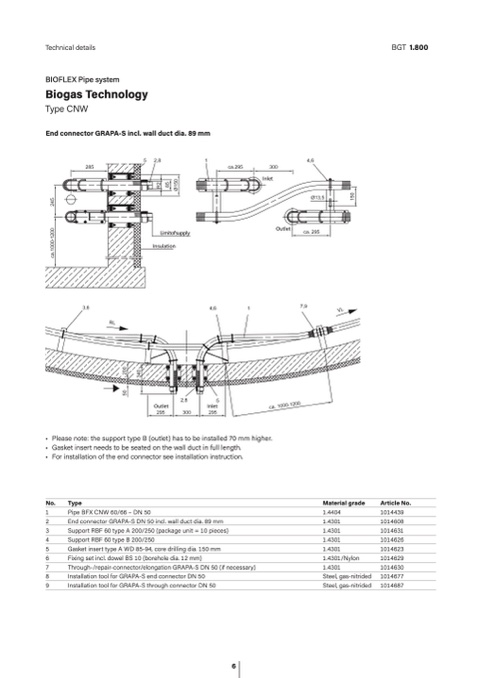

Technical details

1.800

BIOFLEX Pipe system

Biogas Technology

Type CN

W

End connector GRAPA-S incl. wall duct dia. 89 m

m

Inlet

Outle

t

Limit

of

suppl

y

Insulation

Outlet

Inlet

• Please note: the support type B (outlet) has to be installed 70 mm higher

.

• Gasket insert needs to be seated on the wall duct in full length

.

• For installation of the end connector see installation instruction.

No.

Type

Material grade

Article No.

1

Pipe BFX CNW 60/66 – DN 50

1.4404

1014439

2

End connector GRAPA-S DN 50 incl. wall duct dia. 89 mm

1.4301

1014608

3

Support RBF 60 type A 200/250 (package unit = 10 pieces)

1.4301

1014631

4

Support RBF 60 type B 200/250

1.4301

1014626

5

Gasket insert type A WD 85-94, core drilling dia. 150 mm

1.4301

1014623

6

Fixing set incl. dowel BS 10 (borehole dia. 12 mm)

1.4301/Nylon

1014629

7

Through-/repair-connector/elongation GRAPA-S DN 50 (if necessary)

1.4301

1014630

8

Installation tool for GRAPA-S end connector DN 50

Steel, gas-nitrided 1014677

9

Installation tool for GRAPA-S through connector DN 50

Steel, gas-nitrided 1014687
