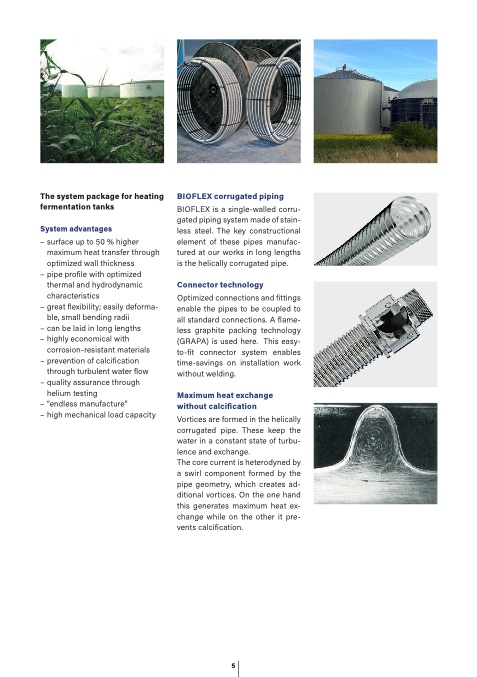

The system package for heatin

g

fermentation tank

s

System advantage

s

– surface up to 50 % higher

maximum heat transfer through

optimized wall thicknes

s

– pipe profile with optimized

thermal and hydrodynamic

characteristic

s

– great flexibility; easily deforma-

ble, small bending radii

– can be laid in long lengths

– highly economical with

corrosion-resistant material

s

– prevention of calcification

through turbulent water

flow

– quality assurance through

helium testing

– “endless manufacture”

– high mechanical load capacity

L

N

G

BIOFLEX corrugated piping

BIOFLEX is a single-walled corru

-

gated piping system made of stain

-

less steel. The key constructional

element of these pipes manufac

-

tured at our works in long length

s

is the helically corrugated pipe.

Connector technolog

y

Optimized connections and fitting

s

enable the pipes to be coupled t

o

all standard connections. A

flame-

less graphite packing technolog

y

(GRAPA) is used here. This easy

-

to-

fit connector system enable

s

time-savings on installation wor

k

without welding

.

Maximum heat exchang

e

without calci

ficatio

n

Vortices are formed in the helically

corrugated pipe. These keep th

e

water in a constant state of turbu

-

lence and exchange

.

The core current is heterodyned by

a swirl component formed by th

e

pipe geometry, which creates ad

-

ditional vortices. On the one hand

this generates maximum heat ex-

change while on the other it pre

-

vents calci

fication

.
