Installation instructions

1.707

BIOFLEX Pipe syste

m

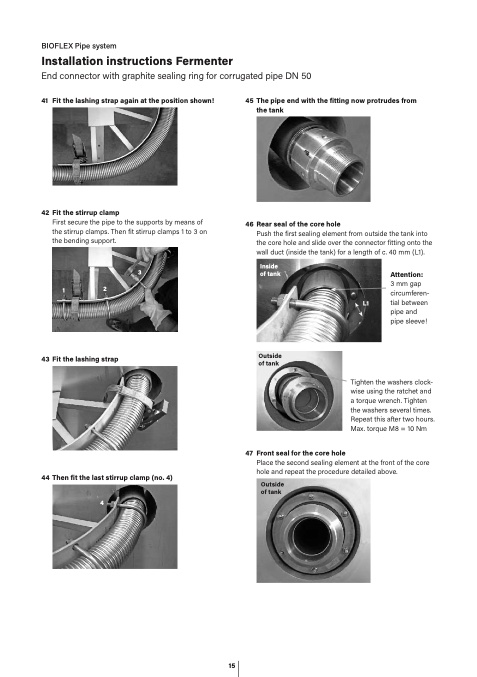

Installation instructions Fermente

r

End connector with graphite sealing ring for corrugated pipe DN 5

0

41 Fit the lashing strap again at the position shown!

45 The pipe end with the fitting now protrudes fro

m

the tan

k

42 Fit the stirrup clam

p

First secure the pipe to the supports by means of

the stirrup clamps. Then

fit stirrup clamps 1 to 3 o

n

the bending support.

3

1

2

46 Rear seal of the core hol

e

Push the first sealing element from outside the tank int

o

the core hole and slide over the connector fitting onto the

wall duct (inside the tank) for a length of c. 40 mm (L1)

.

Insid

e

of tank

Attention

:

L1

3 mm gap

circumferen

-

tial betwee

n

pipe and

pipe sleeve

!

43 Fit the lashing strap

Outsid

e

of tan

k

Tighten the washers clock

-

wise using the ratchet an

d

a torque wrench. Tighte

n

the washers several times.

Repeat this after two hours

.

Max. torque M8 = 10 N

m

44 Then fit the last stirrup clamp (no. 4)

47 Front seal for the core hol

e

Place the second sealing element at the front of the cor

e

hole and repeat the procedure detailed above

.

Outsid

e

of tan

k

4
