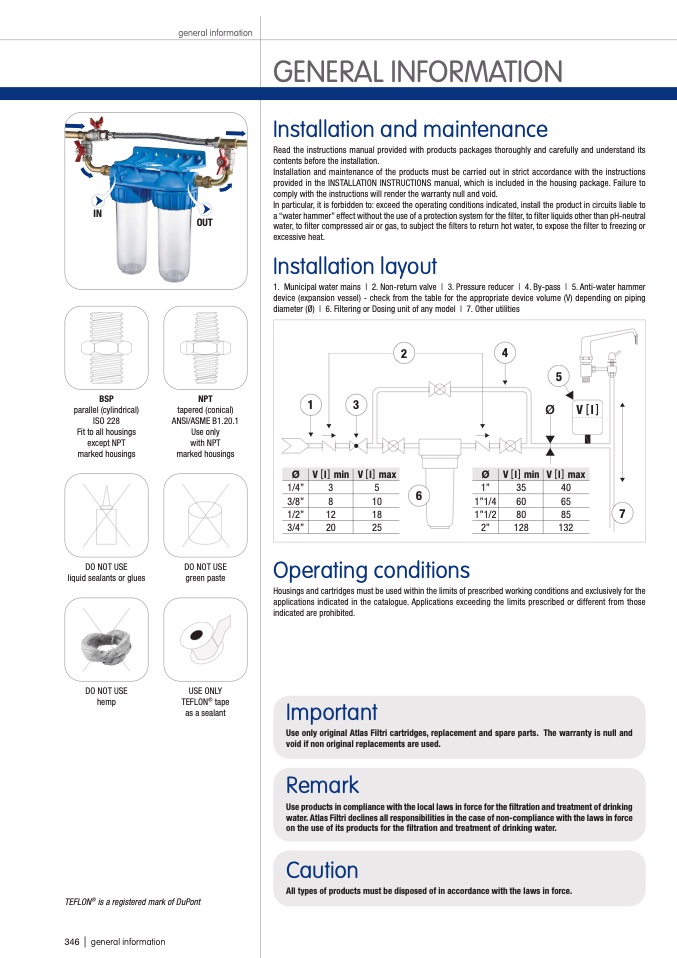

GENERAL INFORMATION

IN

OUT

BSP

parallel (cylindrical)

ISO 228

Fit to all housings

except NPT

marked housings

DO NOT USE

liquid sealants or glues

DO NOT USE

hemp

NPT

tapered (conical)

ANSI/ASME B1.20.1

Use only

with NPT

marked housings

DO NOT USE

green paste

USE ONLY

TEFLON

®

tape

as a sealant

TEFLON

®

is a registered mark of DuPont

346 | general information

Installation and maintenance

Read the instructions manual provided with products packages thoroughly and carefully and understand its

contents before the installation.

Installation and maintenance of the products must be carried out in strict accordance with the instructions

provided in the INSTALLATION INSTRUCTIONS manual, which is included in the housing package. Failure to

comply with the instructions will render the warranty null and void.

In particular, it is forbidden to: exceed the operating conditions indicated, install the product in circuits liable to

a “water hammer” effect without the use of a protection system for the filter, to filter liquids other than pH-neutral

water, to filter compressed air or gas, to subject the filters to return hot water, to expose the filter to freezing or

excessive heat.

Installation layout

1. Municipal water mains | 2. Non-return valve | 3. Pressure reducer | 4. By-pass | 5. Anti-water hammer

device (expansion vessel) - check from the table for the appropriate device volume (V) depending on piping

diameter (Ø) | 6. Filtering or Dosing unit of any model | 7. Other utilities

Ø

V [l] min

3

8

12

20

V [l] max

2

4

1

3

5

Ø

V[l]

1/4”

3/8”

1/2”

3/4”

5

6

1”

40

Ø

V [l] min

35

10

18

25

1”1/4

65

Operating conditions

Housings and cartridges must be used within the limits of prescribed working conditions and exclusively for the

applications indicated in the catalogue. Applications exceeding the limits prescribed or different from those

indicated are prohibited.

Important

Use only original Atlas Filtri cartridges, replacement and spare parts. The warranty is null and

void if non original replacements are used.

Remark

Use products in compliance with the local laws in force for the filtration and treatment of drinking

water. Atlas Filtri declines all responsibilities in the case of non-compliance with the laws in force

on the use of its products for the filtration and treatment of drinking water.

Caution

All types of products must be disposed of in accordance with the laws in force.

60

1”1/2

2”

132

80

128

V [l] max

85

7
