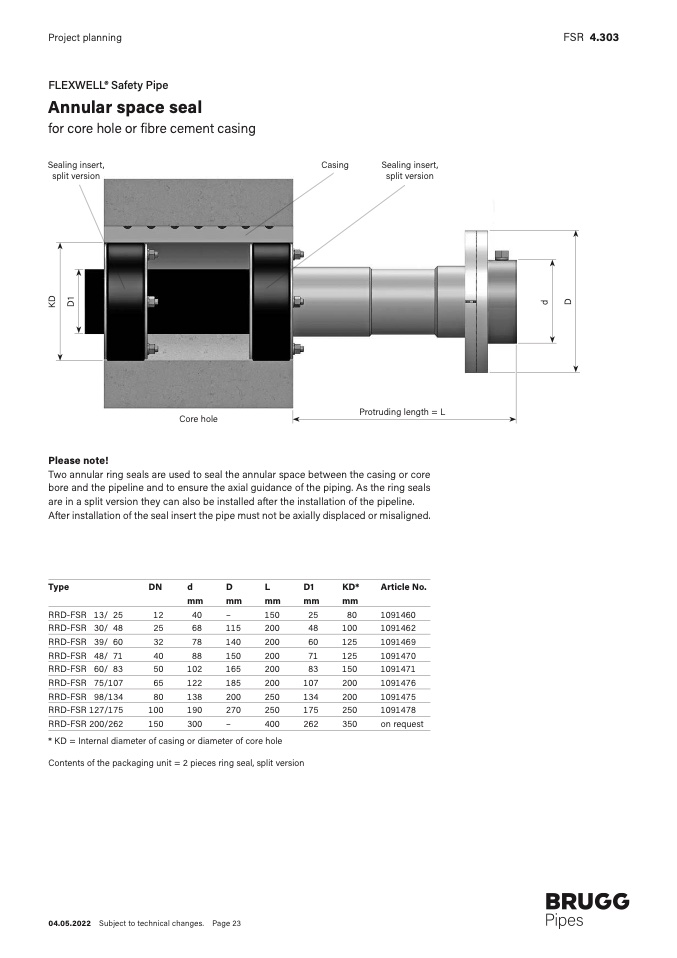

FSR

Project planning

4.303

FLEXWELL® Safety Pipe

Annular space seal

for core hole or fibre cement casing

Sealing insert

,

split version

Casing

Sealing insert

,

split version

K

D

D

1

d

D

Protruding length =

L

Core hole

Please note!

Two annular ring seals are used to seal the annular space between the casing or cor

e

bore and the pipeline and to ensure the axial guidance of the piping. As the ring seals

are in a split version they can also be installed after the installation of the pipeline

.

After installation of the seal insert the pipe must not be axially displaced or misaligned.

Type

DN

d

D

L

D1

KD*

Article No.

mm

mm

mm

mm

m

m

RRD-FSR 13/ 25

12

40

–

150

25

80

1091460

RRD-FSR 30/ 48

25

68

115

200

48

100

1091462

RRD-FSR 39/ 60

32

78

140

200

60

125

1091469

RRD-FSR 48/ 71

40

88

150

200

71

125

1091470

RRD-FSR 60/ 83

50

102

165

200

83

150

1091471

RRD-FSR 75/107

65

122

185

200

107

200

109147

6

RRD-FSR 98/134

80

138

200

250

134

200

109147

5

RRD-FSR 127/175

100

190

270

250

175

250

1091478

RRD-FSR 200/262

150

300

–

400

262

350

on request

* KD = Internal diameter of casing or diameter of core hole

Contents of the packaging unit = 2 pieces ring seal, split version

04.05.2022 Subject to technical changes. Page 23
