FSR

Project planning

4.302

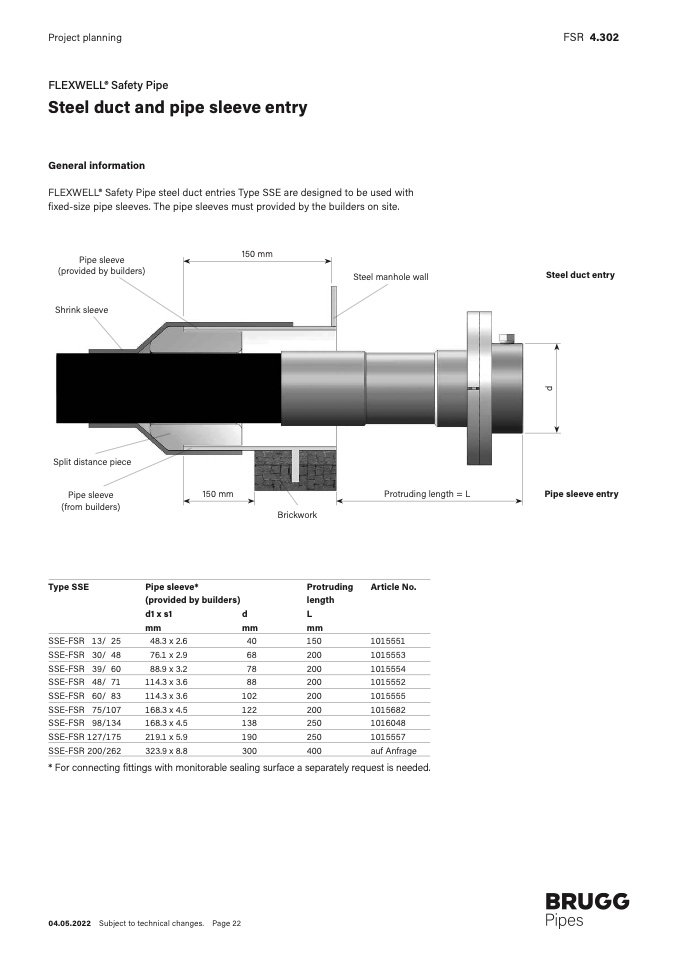

FLEXWELL® Safety Pipe

Steel duct and pipe sleeve entry

General information

FLEXWELL® Safety Pipe steel duct entries Type SSE are designed to be used wit

h

fixed-size pipe sleeves. The pipe sleeves must provided by the builders on site

.

150 m

m

Pipe sleev

e

(provided by builders)

Steel manhole wall

Steel duct entry

Shrink sleeve

d

Split distance piece

Pipe sleev

e

(from builders

)

150 mm

Protruding length =

L

Pipe sleeve entr

y

Brickwork

Type SSE

Pipe sleeve*

Protruding

Article No.

(provided by builders)

length

d1 x s1

d

L

mm

mm

mm

SSE-FSR 13/ 25

48.3 x 2.6

40

150

1015551

SSE-FSR 30/ 48

76.1 x 2.9

68

200

1015553

SSE-FSR 39/ 60

88.9 x 3.2

78

200

1015554

SSE-FSR 48/ 71

114.3 x 3.6

88

200

1015552

SSE-FSR 60/ 83

114.3 x 3.6

102

200

101555

5

SSE-FSR 75/107

168.3 x 4.5

122

200

101568

2

SSE-FSR 98/134

168.3 x 4.5

138

250

101604

8

SSE-FSR 127/175

219.1 x 5.9

190

250

101555

7

SSE-FSR 200/262

323.9 x 8.8

300

400

auf Anfrage

* For connecting fittings with monitorable sealing surface a separately request is needed.

04.05.2022 Subject to technical changes. Page 22
