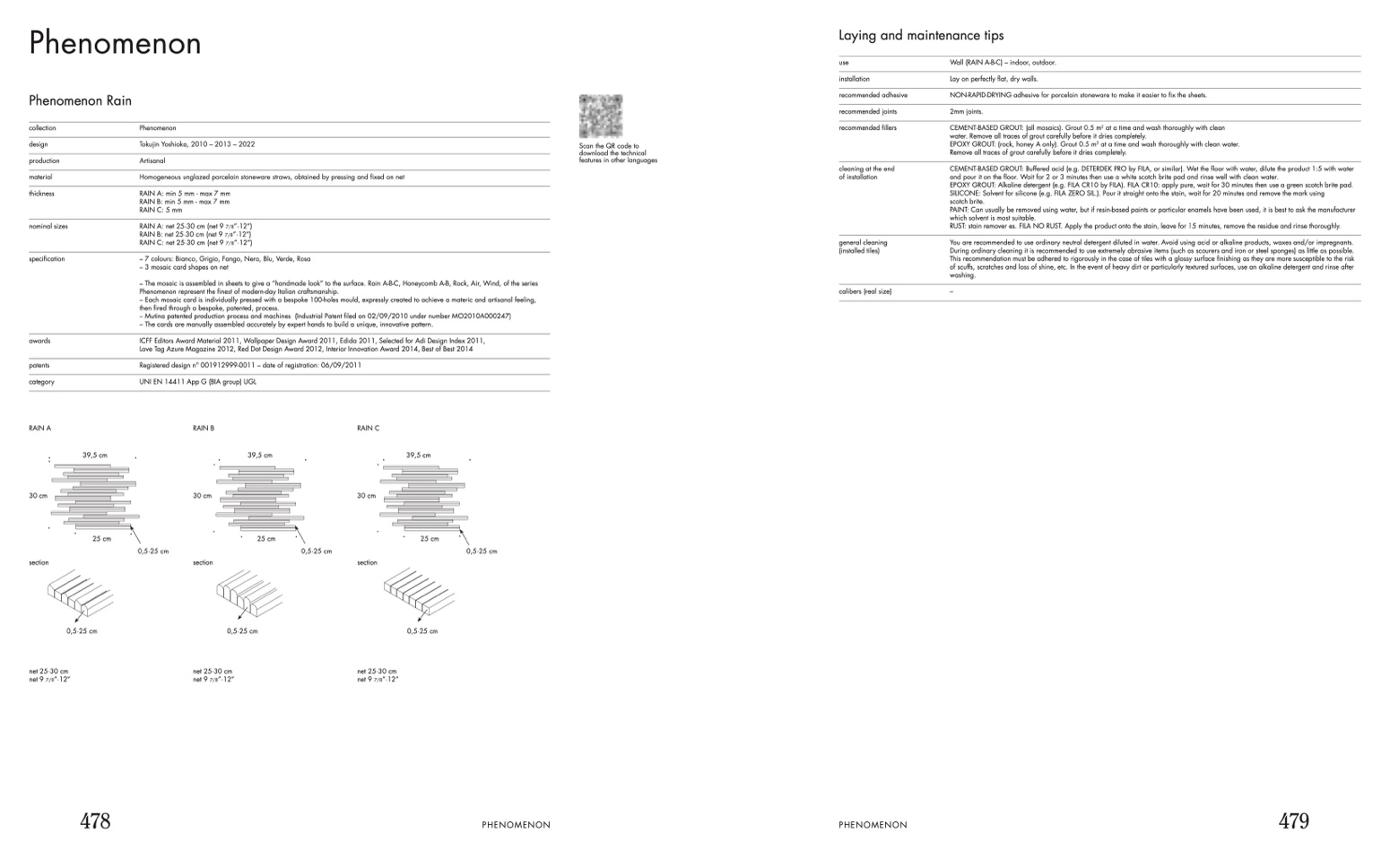

Phenomenon
Phenomenon Rain
Laying and maintenance tips
collection
design
production
material
thickness
nominal sizes
specification
awards
patents
category
RAIN A
30 cm
section
net 25·30 cm
net 9
7/8
”·12”
Phenomenon
Tokujin Yoshioka, 2010 – 2013 – 2022
Artisanal
Homogeneous unglazed porcelain stoneware straws, obtained by pressing and fixed on net
RAIN A: min 5 mm - max 7 mm
RAIN B: min 5 mm - max 7 mm
RAIN C: 5 mm
RAIN A: net 25·30 cm (net 9
7/8
”·12”)
RAIN B: net 25·30 cm (net 9
7/8
”·12”)
RAIN C: net 25·30 cm (net 9
7/8
”·12”)
– 7 colours: Bianco, Grigio, Fango, Nero, Blu, Verde, Rosa
– 3 mosaic card shapes on net
– The mosaic is assembled in sheets to give a “handmade look” to the surface. Rain A-B-C, Honeycomb A-B, Rock, Air, Wind, of the series
Phenomenon represent the finest of modern-day Italian craftsmanship.
– Each mosaic card is individually pressed with a bespoke 100-holes mould, expressly created to achieve a materic and artisanal feeling,
then fired through a bespoke, patented, process.
– Mutina patented production process and machines (Industrial Patent filed on 02/09/2010 under number MO2010A000247)
– The cards are manually assembled accurately by expert hands to build a unique, innovative pattern.
ICFF Editors Award Material 2011, Wallpaper Design Award 2011, Edida 2011, Selected for Adi Design Index 2011,
Love Tag Azure Magazine 2012, Red Dot Design Award 2012, Interior Innovation Award 2014, Best of Best 2014
Scan the QR code to
download the technical
features in other languages
use
installation
recommended adhesive
recommended joints
recommended fillers
cleaning at the end
of installation
general cleaning
(installed tiles)
calibers (real size)
Wall (RAIN A-B-C) – indoor, outdoor.
Lay on perfectly flat, dry walls.
NON-RAPID-DRYING adhesive for porcelain stoneware to make it easier to fix the sheets.
2mm joints.
CEMENT-BASED GROUT: (all mosaics). Grout 0.5 m
2
at a time and wash thoroughly with clean
water. Remove all traces of grout carefully before it dries completely.
EPOXY GROUT: (rock, honey A only). Grout 0.5 m
2
at a time and wash thoroughly with clean water.
Remove all traces of grout carefully before it dries completely.
CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water
and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.
EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.
SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using
scotch brite.
PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer
which solvent is most suitable.
RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.
You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.
During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.
This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk
of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after
washing.
–
Registered design n° 001912999-0011 – date of registration: 06/09/2011
UNI EN 14411 App G (BIA group) UGL
39,5 cm
25 cm
RAIN B
30 cm
section
net 25·30 cm
net 9
7/8
”·12”
39,5 cm
25 cm
RAIN C
39,5 cm
0,5·25 cm
0,5·25 cm
30 cm
section
25 cm
0,5·25 cm
0,5·25 cm
0,5·25 cm
0,5·25 cm
478
PHENOMENON
PHENOMENON
479
net 25·30 cm
net 9
7/8
”·12”
