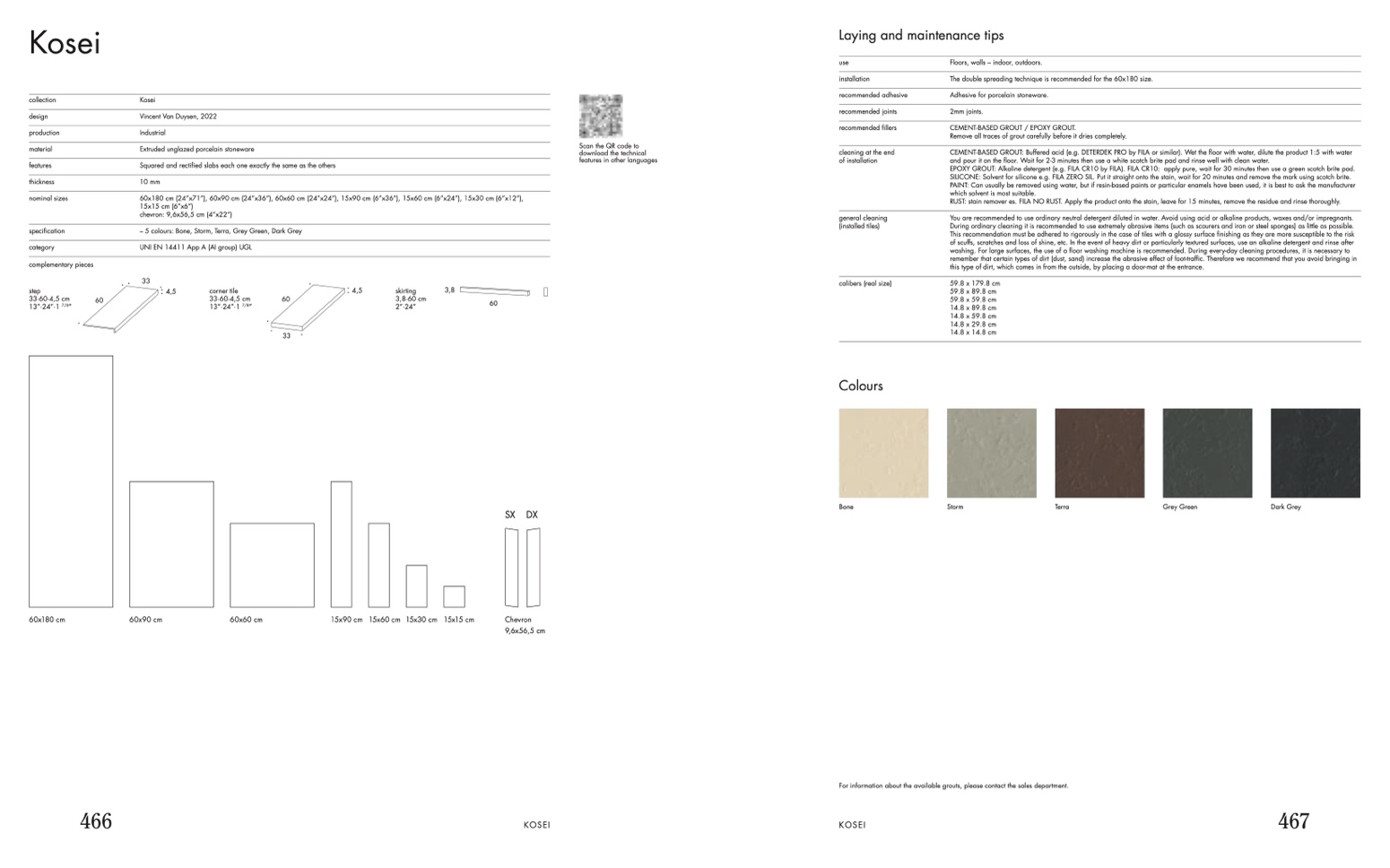

Kosei

collection

design

production

material

features

thickness

nominal sizes

specification

category

complementary pieces

step

33·60·4,5 cm

60

13”·24”·1

7/8

”

Laying and maintenance tips

Kosei

Vincent Van Duysen, 2022

Industrial

Extruded unglazed porcelain stoneware

Squared and rectified slabs each one exactly the same as the others

10 mm

60x180 cm (24”x71”), 60x90 cm (24”x36”), 60x60 cm (24”x24”), 15x90 cm (6”x36”), 15x60 cm (6”x24”), 15x30 cm (6”x12”),

15x15 cm (6”x6”)

chevron: 9,6x56,5 cm (4”x22”)

Scan the QR code to

download the technical

features in other languages

use

installation

recommended adhesive

recommended joints

recommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Colours

Floors, walls – indoor, outdoors.

The double spreading technique is recommended for the 60x180 size.

Adhesive for porcelain stoneware.

2mm joints.

CEMENT-BASED GROUT / EPOXY GROUT.

Remove all traces of grout carefully before it dries completely.

CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA or similar). Wet the floor with water, dilute the product 1:5 with water

and pour it on the floor. Wait for 2-3 minutes then use a white scotch brite pad and rinse well with clean water.

EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.

SILICONE: Solvent for silicone e.g. FILA ZERO SIL. Put it straight onto the stain, wait for 20 minutes and remove the mark using scotch brite.

PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer

which solvent is most suitable.

RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.

You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.

During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.

This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk

of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after

washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to

remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing in

this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.

– 5 colours: Bone, Storm, Terra, Grey Green, Dark Grey

UNI EN 14411 App A (AI group) UGL

33

59.8 x 179.8 cm

59.8 x 89.8 cm

59.8 x 59.8 cm

14.8 x 89.8 cm

14.8 x 59.8 cm

14.8 x 29.8 cm

14.8 x 14.8 cm

4,5

corner tile

33·60·4,5 cm

13”·24”·1

7/8

”

4,5

skirting

3,8·60 cm

2”·24”

3,8

60

33

60

60x180 cm

60x90 cm

60x60 cm

15x90 cm

15x60 cm

15x30 cm

15x15 cm

466

KOSEI

KOSEI

467

SX DX

Chevron

9,6x56,5 cm

Bone

Storm

Terra

Grey Green

Dark Grey

For information about the available grouts, please contact the sales department.
