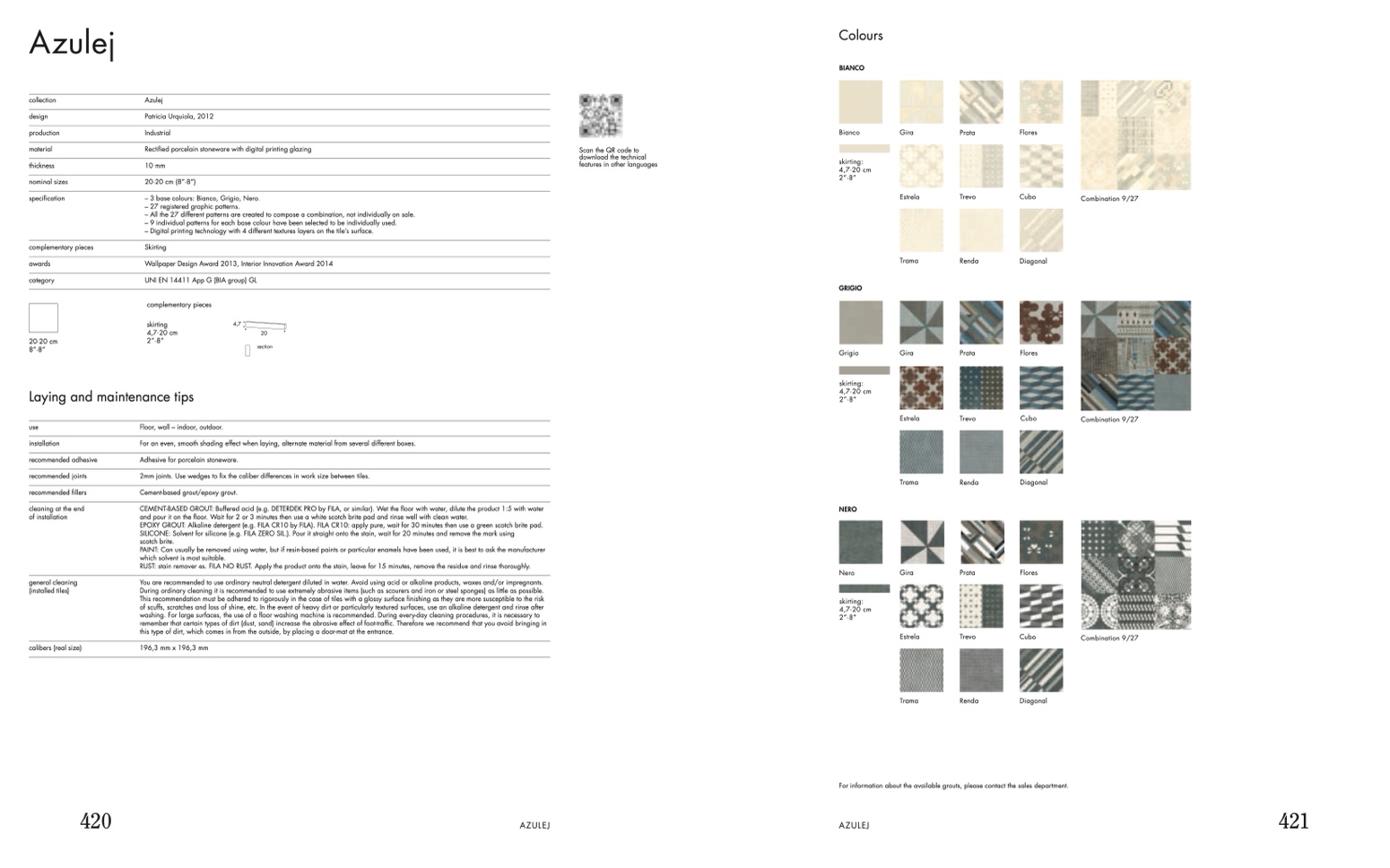

Azulej

collection

design

production

material

thickness

nominal sizes

specification

complementary pieces

awards

category

20·20 cm

8”·8”

Colours

Azulej

Patricia Urquiola, 2012

Industrial

Rectified porcelain stoneware with digital printing glazing

10 mm

20·20 cm (8”·8”)

– 3 base colours: Bianco, Grigio, Nero.

– 27 registered graphic patterns.

– All the 27 different patterns are created to compose a combination, not individually on sale.

– 9 individual patterns for each base colour have been selected to be individually used.

– Digital printing technology with 4 different textures layers on the tile’s surface.

Skirting

Wallpaper Design Award 2013, Interior Innovation Award 2014

UNI EN 14411 App G (BIA group) GL

Scan the QR code to

download the technical

features in other languages

BIANCO

Bianco

skirting:

4,7·20 cm

2”·8”

GRIGIO

Grigio

skirting:

4,7·20 cm

2”·8”

NERO

Nero

skirting:

4,7·20 cm

2”·8”

Gira

Prata

Estrela

Trevo

Trama

Renda

Gira

Prata

Estrela

Trevo

Trama

Renda

Gira

Prata

Estrela

Trevo

Trama

Renda

Flores

Cubo

Diagonal

Flores

Cubo

Diagonal

Flores

Cubo

Diagonal

Combination 9/27

complementary pieces

skirting

4,7·20 cm

2”·8”

4,7

20

section

Laying and maintenance tips

use

installation

recommended adhesive

recommended joints

recommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Floor, wall – indoor, outdoor.

For an even, smooth shading effect when laying, alternate material from several different boxes.

Adhesive for porcelain stoneware.

2mm joints. Use wedges to fix the caliber differences in work size between tiles.

Cement-based grout/epoxy grout.

CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water

and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.

EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.

SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using

scotch brite.

PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer

which solvent is most suitable.

RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.

You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.

During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.

This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk

of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after

washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to

remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing in

this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.

196,3 mm x 196,3 mm

Combination 9/27

Combination 9/27

420

AZULEJ

AZULEJ

421

For information about the available grouts, please contact the sales department.
