BIOFLEX Pipe syste

m

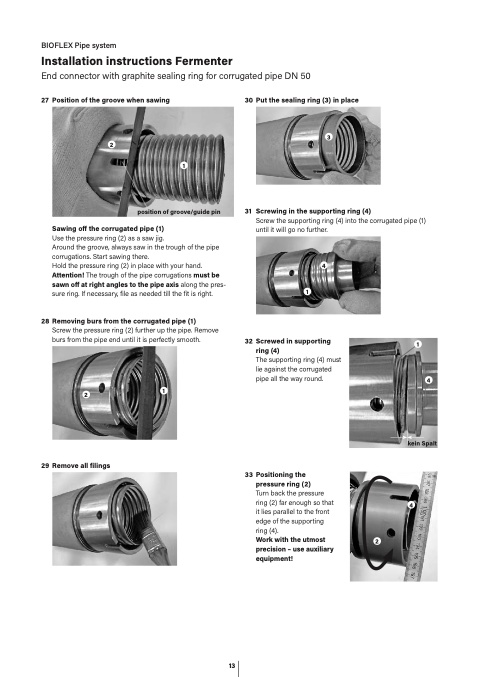

Installation instructions Fermenter

End connector with graphite sealing ring for corrugated pipe DN 50

27 Position of the groove when sawing

30 Put the sealing ring (3) in plac

e

3

2

1

position of groove/guide pi

n

Sawing off the corrugated pipe (1

)

Use the pressure ring (2) as a saw jig

.

Around the groove, always saw in the trough of the pipe

corrugations. Start sawing there.

Hold the pressure ring (2) in place with your hand.

Attention! The trough of the pipe corrugations must be

sawn off at right angles to the pipe axis along the pres-

sure ring. If necessary, file as needed till the

fit is right.

31 Screwing in the supporting ring (4)

Screw the supporting ring (4) into the corrugated pipe (1)

until it will go no further

.

4

28 Removing burs from the corrugated pipe (1

)

Screw the pressure ring (2) further up the pipe. Remov

e

burs from the pipe end until it is perfectly smooth

.

1

32 Screwed in supporting

1

ring (4

)

The supporting ring (4) mus

t

lie against the corrugate

d

pipe all the way round.

4

1

2

kein Spal

t

29 Remove all

filings

33 Positioning th

e

pressure ring (2

)

Turn back the pressur

e

ring (2) far enough so that

it lies parallel to the fron

t

edge of the supporting

ring (4).

Work with the utmost

precision – use auxiliary

equipment

!

4

2
