BIOFLEX Pipe system

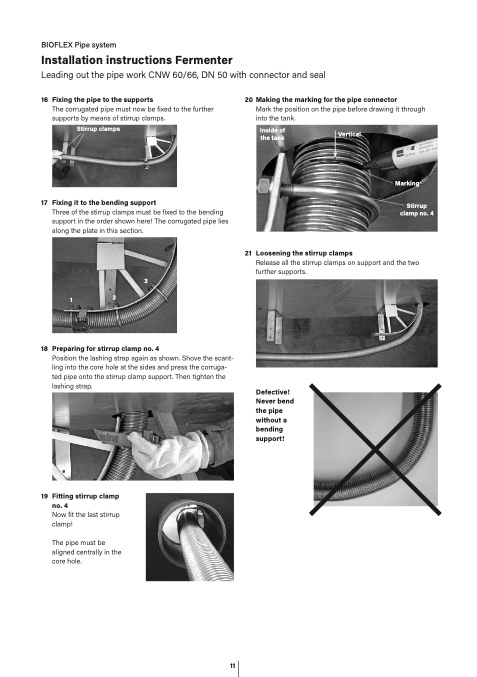

Installation instructions Fermente

r

Leading out the pipe work CNW 60/66, DN 50 with connector and sea

l

16 Fixing the pipe to the supports

The corrugated pipe must now be

fixed to the further

supports by means of stirrup clamps

.

Stirrup clamps

20 Making the marking for the pipe connector

Mark the position on the pipe before drawing it through

into the tank.

Inside of

the tan

k

Vertical

Marking

17 Fixing it to the bending support

Three of the stirrup clamps must be fixed to the bending

support in the order shown here! The corrugated pipe lie

s

along the plate in this section

.

Stirrup

clamp no. 4

21 Loosening the stirrup clamp

s

Release all the stirrup clamps on support and the two

further supports.

3

1

2

18 Preparing for stirrup clamp no. 4

Position the lashing strap again as shown. Shove the scant-

ling into the core hole at the sides and press the corruga-

ted pipe onto the stirrup clamp support. Then tighten th

e

lashing strap

.

Defective

!

Never ben

d

the pip

e

without

a

bendin

g

support

!

19 Fitting stirrup clamp

no. 4

Now

fit the last stirru

p

clamp!

The pipe must b

e

aligned centrally in the

core hole

.

24.02.2021 Subject to change without notice. T +49 5031 170-0 · brugg.de Page 4
