VERSIONI STANDARD
STANDARD VERSIONS
VERSIONES STANDARD
Corpo pompa/Pump body
Cuerpo bomba c. 907000-0
Valigetta PVC/PVC carrying case
Maletín de PVC c. 010121
c.134005.1 Ø 6 R 31
c.134006.1 Ø 8 R 31
c.112035.1 Ø 10 R 31
c.112036.1 Ø 12 R 34
c.112037.1 Ø 14 R 41
c.112038.1 Ø 15 R 48
c.112065.1 Ø 16 R 63
c.112041.1 Ø 18 R 72
c.112042.1 Ø 20 R 80
c.112043.1 Ø 22 R 88
c.112086.1 1/4" R 31 (6.35)
c.112087.1 5/16" R 31 (9.94)
c.112088.1 3/8" R 31 (9.52)
c.112089.1 1/2" R 34 (12.70)
c.112090.1 5/8" R 49 (15.88)
c.112091.1 3/4" R 80 (19,05)
c.112092.1 7/8" R 88 (22.22)
10-12
c. 000003
14-17 rinf.
c. 000231
18-22 rinf.
c. 000173
Peso/Weight/Peso
L
6 - 22
Cod.
9070050
•
•
•
M
10 - 22
Cod.
9070055
•
•
•
N
1/4” - 7/8”
Cod.
9070060
•
•
•
32

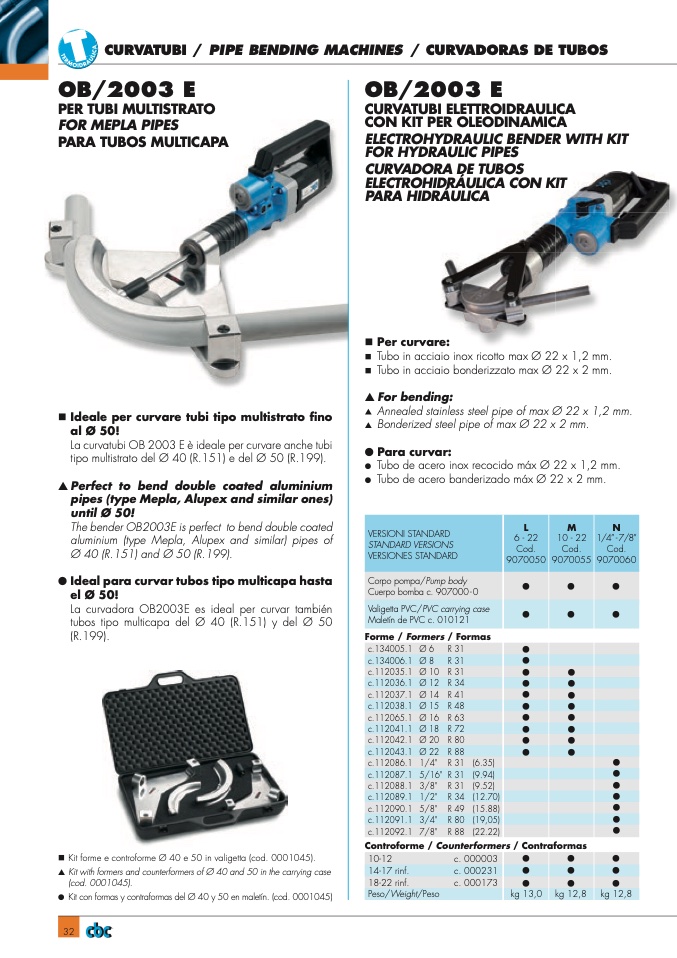

CURVATUBI / PIPE BENDING MACHINES / CURVADORAS DE TUBOS
OB/2003 E
PER TUBI MULTISTRATO
FOR MEPLA PIPES
PARA TUBOS MULTICAPA
OB/2003 E
CURVATUBI ELETTROIDRAULICA
CON KIT PER OLEODINAMICA
ELECTROHYDRAULIC BENDER WITH KIT
FOR HYDRAULIC PIPES
CURVADORA DE TUBOS
ELECTROHIDRÁULICA CON KIT
PARA HIDRÁULICA
nPer curvare:
n
Tubo in acciaio inox ricotto max Ø 22 x 1,2 mm.
n
Tubo in acciaio bonderizzato max Ø 22 x 2 mm.
▲
For bending:
▲
Annealed stainless steel pipe of max Ø 22 x 1,2 mm.
▲
Bonderized steel pipe of max Ø 22 x 2 mm.
●
Para curvar:
●
Tubo de acero inox recocido máx Ø 22 x 1,2 mm.
●
Tubo de acero banderizado máx Ø 22 x 2 mm.
nIdeale per curvare tubi tipo multistrato fino
al Ø 50!
La curvatubi OB 2003 E è ideale per curvare anche tubi
tipo multistrato del Ø 40 (R.151) e del Ø 50 (R.199).
▲
Perfect to bend double coated aluminium
pipes (type Mepla, Alupex and similar ones)
until Ø 50!
The bender OB2003E is perfect to bend double coated
aluminium (type Mepla, Alupex and similar) pipes of
Ø 40 (R.151) and Ø 50 (R.199).
●
Ideal para curvar tubos tipo multicapa hasta
el Ø 50!
La curvadora OB2003E es ideal per curvar también
tubos tipo multicapa del Ø 40 (R.151) y del Ø 50
(R.199).
Forme / Formers / Formas
n Kit forme e controforme Ø 40 e 50 in valigetta (cod. 0001045).
▲
Kit with formers and counterformers of Ø 40 and 50 in the carrying case
(cod. 0001045).
•••
Controforme / Counterformers / Contraformas
•••
•••
●
Kit con formas y contraformas del Ø 40 y 50 en malet
ín. (cod. 0001045)
kg 13,0 kg 12,8 kg 12,8
