VERSIONI STANDARD

STANDARD VERSIONS

VERSIONES STANDARD

Corpo pompa/Pump body

Cuerpo bomba c. 000018.1

Valigetta PVC/PVC carrying case

Maletín PVC c. 010085

Forme/Formers/Formas

c.134005.1 Ø 6 R 31

c.134006.1 Ø 8 R 31

c.112035.1 Ø 10 R 31

c.112036.1 Ø 12 R 34

c.112037.1 Ø 14 R 41

c.112038.1 Ø 15 R 48

c.112065.1 Ø 16 R 63

c.112041.1 Ø 18 R 72

c.112042.1 Ø 20 R 80

c.112043.1 Ø 22 R 88

c.112086.1 1/4" R 31 (6.35)

c.112087.1 5/16" R 31 (9.94)

c.112088.1 3/8" R 31 (9.52)

c.112089.1 1/2" R 34 (12.70)

c.112090.1 5/8" R 49 (15.88)

c.112091.1 3/4" R 80 (19,05)

c.112092.1 7/8" R 88 (22.22)

Controforme/Counterformers/Contraformas

c. 000003

10-12

c. 000231

14-17 rinf.

c. 000173

18-22 rinf.

Peso/Weight/Peso

A

6 - 22

Cod.

9050050

•

•

•

••

••

••

kg 7,7

B

10 - 22

Cod.

9050055

•

•

•

kg 7,5

C

1/4” - 7/8”

Cod.

9050060

•

•

•

•

•

•

kg 7,5

24

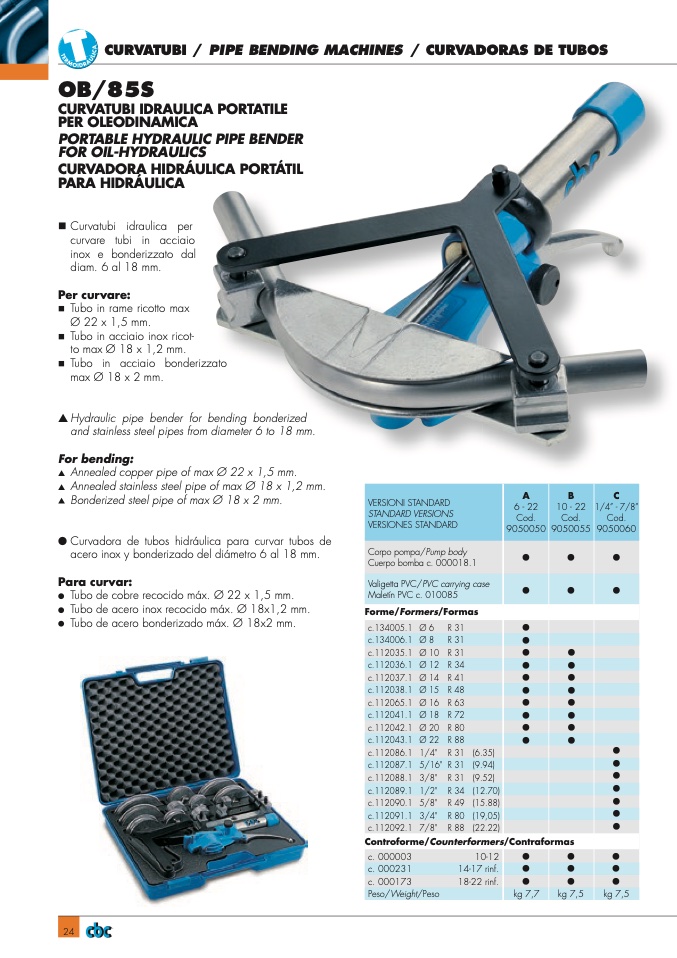

CURVATUBI / PIPE BENDING MACHINES / CURVADORAS DE TUBOS

OB/85S

CURVATUBI IDRAULICA PORTATILE

PER OLEODINAMICA

PORTABLE HYDRAULIC PIPE BENDER

FOR OIL-HYDRAULICS

CURVADORA HIDRÁULICA PORTÁTIL

PARA HIDRÁULICA

nCurvatubi idraulica per

curvare tubi in acciaio

inox e bonderizzato dal

diam. 6 al 18 mm.

Per curvare:

n

Tubo in rame ricotto max

Ø 22 x 1,5 mm.

n

Tubo in acciaio inox ricot-

to max Ø 18 x 1,2 mm.

n

Tubo in acciaio bonderizzato

max Ø 18 x 2 mm.

▲

Hydraulic pipe bender for bending bonderized

and stainless steel pipes from diameter 6 to 18 mm.

For bending:

▲

Annealed copper pipe of max Ø 22 x 1,5 mm.

▲

Annealed stainless steel pipe of max Ø 18 x 1,2 mm.

▲

Bonderized steel pipe of max Ø 18 x 2 mm.

●

Curvadora de tubos hidráulica para curvar tubos de

acero inox y bonderizado del diámetro 6 al 18 mm.

Para curvar:

●

Tubo de cobre recocido máx. Ø 22 x 1,5 mm.

●

Tubo de acero inox recocido m

áx. Ø 18x1,2 mm.

●

Tubo de acero bonderizado máx. Ø 18x2 mm.
