RO Reverse Osmosis equipments

T

R

E

A

T

M

E

N

T

S

Y

S

T

E

M

S

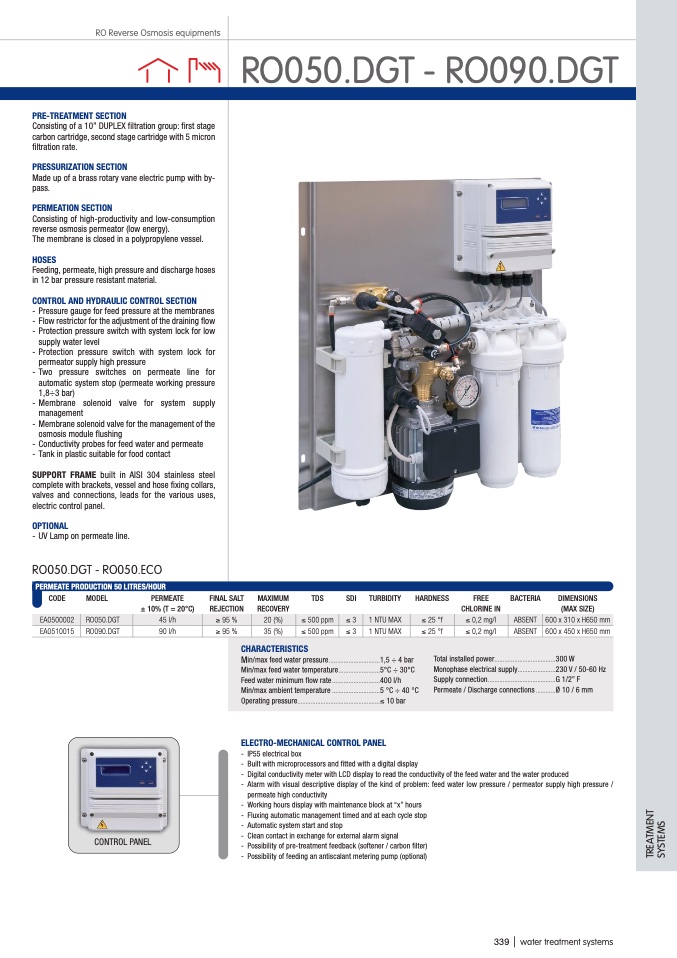

RO050.DGT - RO090.DGT

PRE-TREATMENT SECTION

Consisting of a 10” DUPLEX filtration group: first stage

carbon cartridge, second stage cartridge with 5 micron

filtration rate.

PRESSURIZATION SECTION

Made up of a brass rotary vane electric pump with by-

pass.

PERMEATION SECTION

Consisting of high-productivity and low-consumption

reverse osmosis permeator (low energy).

The membrane is closed in a polypropylene vessel.

HOSES

Feeding, permeate, high pressure and discharge hoses

in 12 bar pressure resistant material.

CONTROL AND HYDRAULIC CONTROL SECTION

- Pressure gauge for feed pressure at the membranes

- Flow restrictor for the adjustment of the draining flow

- Protection pressure switch with system lock for low

supply water level

- Protection pressure switch with system lock for

permeator supply high pressure

- Two pressure switches on permeate line for

automatic system stop (permeate working pressure

1,8÷3 bar)

- Membrane solenoid valve for system supply

management

- Membrane solenoid valve for the management of the

osmosis module flushing

- Conductivity probes for feed water and permeate

- Tank in plastic suitable for food contact

SUPPORT FRAME built in AISI 304 stainless steel

complete with brackets, vessel and hose fixing collars,

valves and connections, leads for the various uses,

electric control panel.

OPTIONAL

- UV Lamp on permeate line.

RO050.DGT - RO050.ECO

PERMEATE PRODUCTION 50 LITRES/HOUR

CODE

MODEL

PERMEATE

FINALSALT

MAXIMUM

TDS

SDI

TURBIDITY

HARDNESS

FREE

BACTERIA

DIMENSIONS

± 10% (T = 20°C)

REJECTION

≥ 95 %

≥ 95 %

RECOVERY

20 (%)

35 (%)

CHLORINE IN

≤ 0,2 mg/l

≤ 0,2 mg/l

(MAX SIZE)

600 x 310 x H650 mm

600 x 450 x H650 mm

EA0500002

EA0510015

RO050.DGT

RO090.DGT

45 l/h

90 l/h

≤ 500 ppm

≤ 500 ppm

≤ 3

≤ 3

1 NTU MAX

1 NTU MAX

≤ 25 °f

≤ 25 °f

ABSENT

ABSENT

CHARACTERISTICS

Min/max feed water pressure

...............................

1,5 ÷ 4 bar

Min/max feed water temperature.........................5°C ÷ 30°C

Feed water minimum flow rate.............................400 l/h

Min/max ambient temperature .............................5 °C ÷ 40 °C

Operating pressure..................................................≤ 10 bar

Total installed power.....................................300 W

Monophase electrical supply.......................230 V / 50-60 Hz

Supply connection.........................................G 1/2” F

Permeate / Discharge connections ............Ø 10 / 6 mm

ELECTRO-MECHANICAL CONTROL PANEL

CONTROL PANEL

CONTROL PANEL

- IP55 electrical box

- Built with microprocessors and fitted with a digital display

- Digital conductivity meter with LCD display to read the conductivity of the feed water and the water produced

- Alarm with visual descriptive display of the kind of problem: feed water low pressure / permeator supply high pressure /

permeate high conductivity

- Working hours display with maintenance block at “x” hours

- Fluxing automatic management timed and at each cycle stop

- Automatic system start and stop

- Clean contact in exchange for external alarm signal

- Possibility of pre-treatment feedback (softener / carbon filter)

- Possibility of feeding an antiscalant metering pump (optional)

339 | water treatment systems
