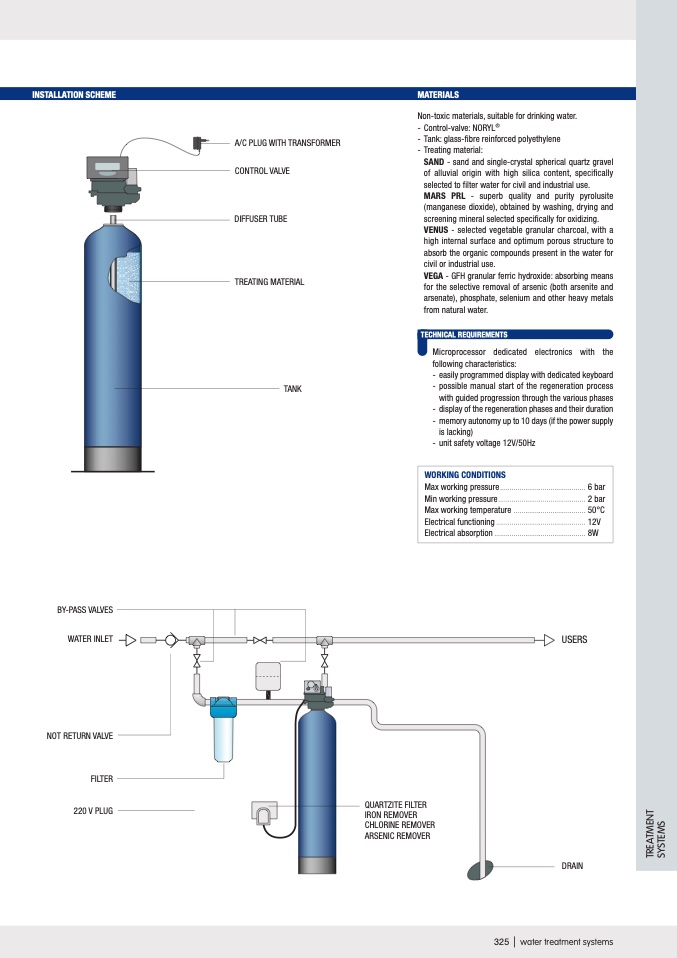

IPNESRTACALLRATTUICOCNESSCXHEME

MATERIALS

A/C PLUG WITH TRANSFORMER

CONTROL VALVE

DIFFUSER TUBE

TREATING MATERIAL

TANK

Non-toxic materials, suitable for drinking water.

- Control-valve: NORYL

®

- Tank: glass-fibre reinforced polyethylene

- Treating material:

SAND - sand and single-crystal spherical quartz gravel

of alluvial origin with high silica content, specifically

selected to filter water for civil and industrial use.

MARS PRL - superb quality and purity pyrolusite

(manganese dioxide), obtained by washing, drying and

screening mineral selected specifically for oxidizing.

VENUS - selected vegetable granular charcoal, with a

high internal surface and optimum porous structure to

absorb the organic compounds present in the water for

civil or industrial use.

VEGA - GFH granular ferric hydroxide: absorbing means

for the selective removal of arsenic (both arsenite and

arsenate), phosphate, selenium and other heavy metals

from natural water.

TECHNICAL REQUIREMENTS

Microprocessor dedicated electronics with the

following characteristics:

- easily programmed display with dedicated keyboard

- possible manual start of the regeneration process

with guided progression through the various phases

- display of the regeneration phases and their duration

- memory autonomy up to 10 days (if the power supply

is lacking)

- unit safety voltage 12V/50Hz

WORKING CONDITIONS

Max working pressure

............................................

6 bar

Min working pressure

.............................................

2 bar

Max working temperature

.....................................

50°C

Electrical functioning

..............................................

12V

Electrical absorption

...............................................

8W

BY-PASS VALVES

WATER INLET

NOT RETURN VALVE

FILTER

220 V PLUG

USERS

QUARTZITE FILTER

IRON REMOVER

CHLORINE REMOVER

ARSENIC REMOVER

325 | water treatment systems
