ATLAS

green

R

I

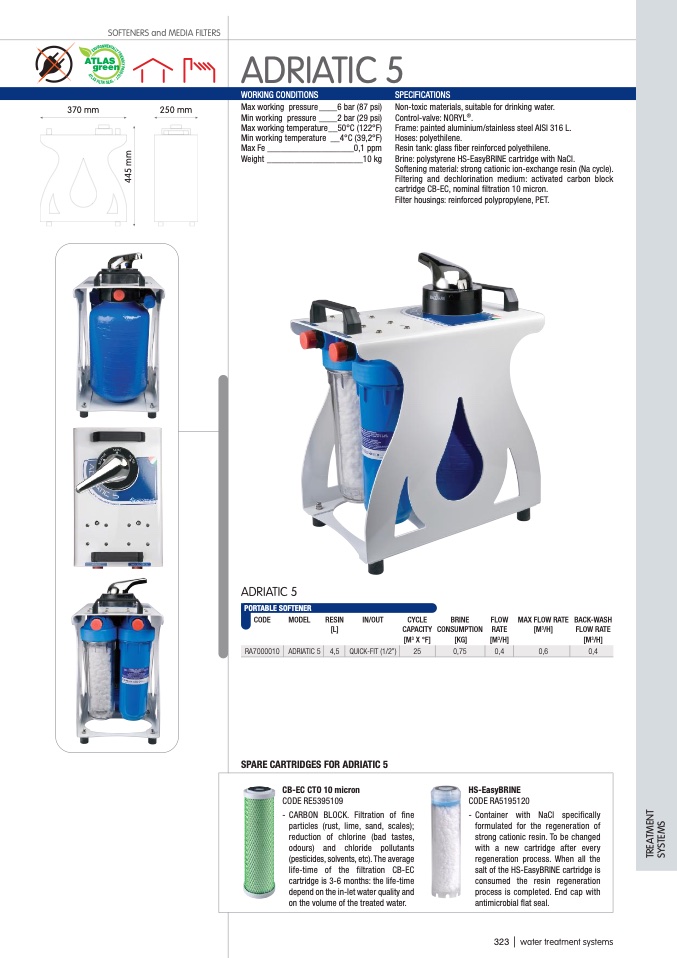

ADRIATIC 5

WORKING CONDITIONS

SPECIFICATIONS

370 mm

250 mm

4

4

5

m

m

Max working pressure____6 bar (87 psi)

Min working pressure ____2 bar (29 psi)

Max working temperature__50°C (122°F)

Min working temperature __4°C (39,2°F)

Max Fe ___________________0,1 ppm

Weight _____________________10 kg

Non-toxic materials, suitable for drinking water.

Control-valve: NORYL

®

.

Frame: painted aluminium/stainless steel AISI 316 L.

Hoses: polyethilene.

Resin tank: glass fiber reinforced polyethilene.

Brine: polystyrene HS-EasyBRINE cartridge with NaCl.

Softening material: strong cationic ion-exchange resin (Na cycle).

Filtering and dechlorination medium: activated carbon block

cartridge CB-EC, nominal filtration 10 micron.

Filter housings: reinforced polypropylene, PET.

ADRIATIC 5

PORTABLE SOFTENER

CODE

MODEL

RESIN

[L]

RA7000010 ADRIATIC 5 4,5

IN/OUT

QUICK-FIT (1/2”)

CYCLE

CAPACITY

[M

3

X °F]

25

BRINE

FLOW

CONSUMPTION RATE

[KG]

[M

3

/H]

0,75

0,4

MAX FLOW RATE

[M

3

/H]

0,6

BACK-WASH

FLOW RATE

[M

3

/H]

0,4

SPARE CARTRIDGES FOR ADRIATIC 5

323 | water treatment systems

CB-EC CTO 10 micron

CODE RE5395109

- CARBON BLOCK. Filtration of fine

particles (rust, lime, sand, scales);

reduction of chlorine (bad tastes,

odours) and chloride pollutants

(pesticides, solvents, etc). The average

life-time of the filtration CB-EC

cartridge is 3-6 months: the life-time

depend on the in-let water quality and

on the volume of the treated water.

HS-EasyBRINE

CODE RA5195120

- Container with NaCl specifically

formulated for the regeneration of

strong cationic resin. To be changed

with a new cartridge after every

regeneration process. When all the

salt of the HS-EasyBRINE cartridge is

consumed the resin regeneration

process is completed. End cap with

antimicrobial flat seal.
