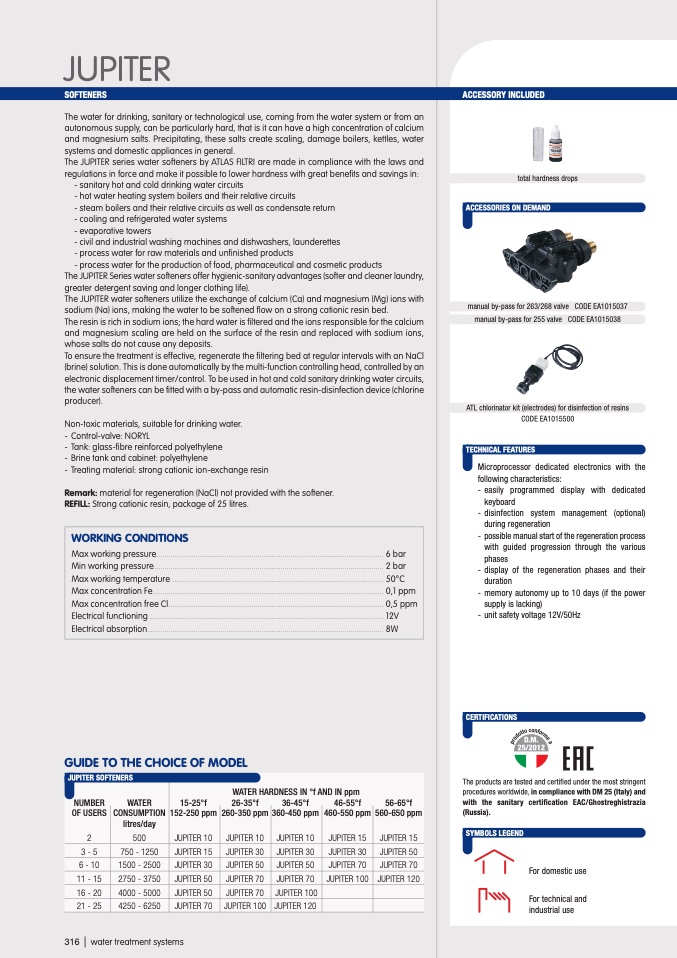

JUPITER

SOFTENERS

ACCESSORY INCLUDED

The water for drinking, sanitary or technological use, coming from the water system or from an

autonomous supply, can be particularly hard, that is it can have a high concentration of calcium

and magnesium salts. Precipitating, these salts create scaling, damage boilers, kettles, water

systems and domestic appliances in general.

The JUPITER series water softeners by ATLAS FILTRI are made in compliance with the laws and

regulations in force and make it possible to lower hardness with great benefits and savings in:

- sanitary hot and cold drinking water circuits

- hot water heating system boilers and their relative circuits

- steam boilers and their relative circuits as well as condensate return

- cooling and refrigerated water systems

- evaporative towers

- civil and industrial washing machines and dishwashers, launderettes

- process water for raw materials and unfinished products

- process water for the production of food, pharmaceutical and cosmetic products

The JUPITER Series water softeners offer hygienic-sanitary advantages (softer and cleaner laundry,

greater detergent saving and longer clothing life).

The JUPITER water softeners utilize the exchange of calcium (Ca) and magnesium (Mg) ions with

sodium (Na) ions, making the water to be softened flow on a strong cationic resin bed.

The resin is rich in sodium ions; the hard water is filtered and the ions responsible for the calcium

and magnesium scaling are held on the surface of the resin and replaced with sodium ions,

whose salts do not cause any deposits.

To ensure the treatment is effective, regenerate the filtering bed at regular intervals with an NaCl

(brine) solution. This is done automatically by the multi-function controlling head, controlled by an

electronic displacement timer/control. To be used in hot and cold sanitary drinking water circuits,

the water softeners can be fitted with a by-pass and automatic resin-disinfection device (chlorine

producer).

Non-toxic materials, suitable for drinking water.

- Control-valve: NORYL

- Tank: glass-fibre reinforced polyethylene

- Brine tank and cabinet: polyethylene

- Treating material: strong cationic ion-exchange resin

Remark: material for regeneration (NaCl) not provided with the softener.

REFILL: Strong cationic resin, package of 25 litres.

WORKING CONDITIONS

Max working pressure

.....................................................................................................................

Min working pressure

......................................................................................................................

Max working temperature

.............................................................................................................

Max concentration Fe

.......................................................................................................................

Max concentration free Cl

...............................................................................................................

Electrical functioning

.........................................................................................................................

Electrical absorption

..........................................................................................................................

6 bar

2 bar

50°C

0,1 ppm

0,5 ppm

12V

8W

GUIDE TO THE CHOICE OF MODEL

JUPITER SOFTENERS

WATER HARDNESS IN °f AND IN ppm

NUMBER

WATER

15-25°f

26-35°f

36-45°f

46-55°f

56-65°f

OF USERS CONSUMPTION 152-250 ppm 260-350 ppm 360-450 ppm 460-550 ppm 560-650 ppm

litres/day

2

500

JUPITER 10

JUPITER 10

JUPITER 10

JUPITER 15

JUPITER 15

3 -5

750 - 1250

JUPITER 15

JUPITER 30

JUPITER 30

JUPITER 30

JUPITER 50

6 - 10

1500 - 2500

JUPITER 30

JUPITER 50

JUPITER 50

JUPITER 70

JUPITER 70

11 - 15

2750 - 3750

JUPITER 50

JUPITER 70

JUPITER 70

JUPITER 100

JUPITER 120

16 - 20

4000 - 5000

JUPITER 50

JUPITER 70

JUPITER 100

21 - 25

4250 - 6250

JUPITER 70

JUPITER 100

JUPITER 120

316 | water treatment systems

total hardness drops

ACCESSORIES ON DEMAND

manual by-pass for 263/268 valve CODE EA1015037

manual by-pass for 255 valve CODE EA1015038

ATL chlorinator kit (electrodes) for disinfection of resins

CODE EA1015500

TECHNICAL FEATURES

Microprocessor dedicated electronics with the

following characteristics:

- easily programmed display with dedicated

keyboard

- disinfection system management (optional)

during regeneration

- possible manual start of the regeneration process

with guided progression through the various

phases

- display of the regeneration phases and their

duration

- memory autonomy up to 10 days (if the power

supply is lacking)

- unit safety voltage 12V/50Hz

CERTIFICATIONS

The products are tested and certified under the most stringent

procedures worldwide, in compliance with DM 25 (Italy) and

with the sanitary certification EAC/Ghostreghistrazia

(Russia).

SYMBOLS LEGEND

For domestic use

For technical and

industrial use
