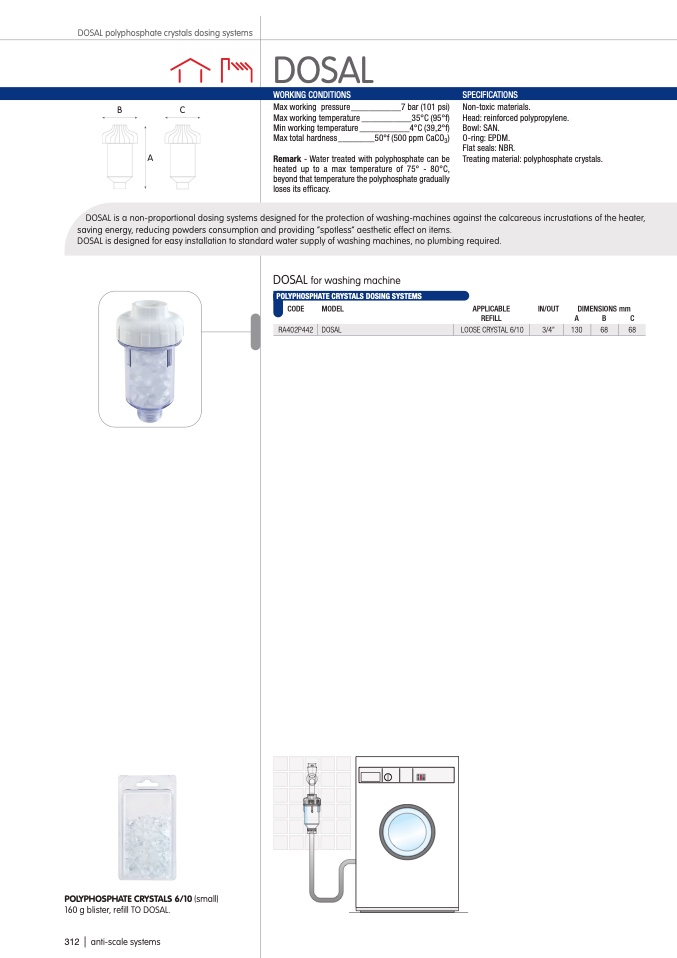

DOSAL polyphosphate crystals dosing systems

B

C

DOSAL

WORKING CONDITIONS

Max working pressure___________7 bar (101 psi)

Max working temperature ___________35°C (95°f)

Min working temperature ___________4°C (39,2°f)

Max total hardness________50°f (500 ppm CaCO

3

)

SPECIFICATIONS

Non-toxic materials.

Head: reinforced polypropylene.

Bowl: SAN.

O-ring: EPDM.

Flat seals: NBR.

Treating material: polyphosphate crystals.

A

Remark - Water treated with polyphosphate can be

heated up to a max temperature of 75° - 80°C,

beyond that temperature the polyphosphate gradually

loses its efficacy.

DOSAL is a non-proportional dosing systems designed for the protection of washing-machines against the calcareous incrustations of the heater,

saving energy, reducing powders consumption and providing “spotless” aesthetic effect on items.

DOSAL is designed for easy installation to standard water supply of washing machines, no plumbing required.

DOSAL for washing machine

POLYPHOSPHATE CRYSTALS DOSING SYSTEMS

CODE

MODEL

APPLICABLE

REFILL

LOOSE CRYSTAL 6/10

IN/OUT

3/4”

DIMENSIONS mm

A

B

C

130

68

68

RA402P442

DOSAL

POLYPHOSPHATE CRYSTALS 6/10 (small)

160 g blister, refill TO DOSAL.

312 | anti-scale systems
