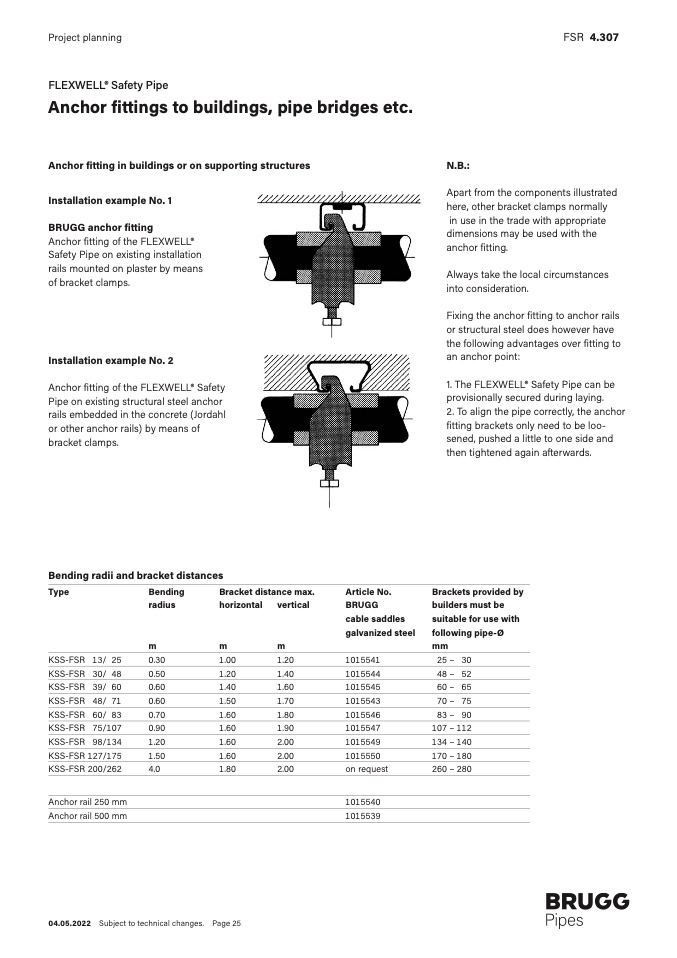

FSR

Project planning

4.307

FLEXWELL® Safety Pipe

Anchor

fittings to buildings, pipe bridges etc.

Anchor fitting in buildings or on supporting structures

Installation example No. 1

BRUGG anchor fittin

g

Anchor fitting of the FLEXWELL

®

Safety Pipe on existing installatio

n

rails mounted on plaster by mean

s

of bracket clamps

.

N.B.

:

Apart from the components illustrated

here, other bracket clamps normall

y

in use in the trade with appropriate

dimensions may be used with th

e

anchor

fitting.

Always take the local circumstances

into consideration.

Installation example No. 2

Anchor fitting of the FLEXWELL® Safety

Pipe on existing structural steel anchor

rails embedded in the concrete (Jordah

l

or other anchor rails) by means o

f

bracket clamps

.

Fixing the anchor

fitting to anchor rails

or structural steel does however have

the following advantages over

fitting t

o

an anchor point:

1. The FLEXWELL® Safety Pipe can be

provisionally secured during laying.

2. To align the pipe correctly, the ancho

r

fitting brackets only need to be loo-

sened, pushed a little to one side an

d

then tightened again afterwards.

Bending radii and bracket distance

s

Type

Bending

Bracket distance max.

Article No.

Brackets provided b

y

radius

horizontal vertical

BRUGG

builders must b

e

cable saddles

suitable for use wit

h

galvanized steel

following pipe-

Ø

m

m

m

m

m

KSS-FSR 13/ 25

0.30

1.00

1.20

1015541

25 – 30

KSS-FSR 30/ 48

0.50

1.20

1.40

1015544

48 – 52

KSS-FSR 39/ 60

0.60

1.40

1.60

1015545

60 – 65

KSS-FSR 48/ 71

0.60

1.50

1.70

1015543

70 – 75

KSS-FSR 60/ 83

0.70

1.60

1.80

1015546

83 – 90

KSS-FSR 75/107

0.90

1.60

1.90

1015547

10

7 – 112

KSS-FSR 98/134

1.20

1.60

2.00

1015549

13

4 – 140

KSS-FSR 127/175

1.50

1.60

2.00

1015550

17

0 – 180

KSS-FSR 200/262

4.0

1.80

2.00

on request

26

0 – 280

Anchor rail 250 mm

101554

0

Anchor rail 500 mm

101553

9

04.05.2022 Subject to technical changes. Page 25
