R08005
2 VIE
R11038
3 VIE
R11039
R02062
R16110

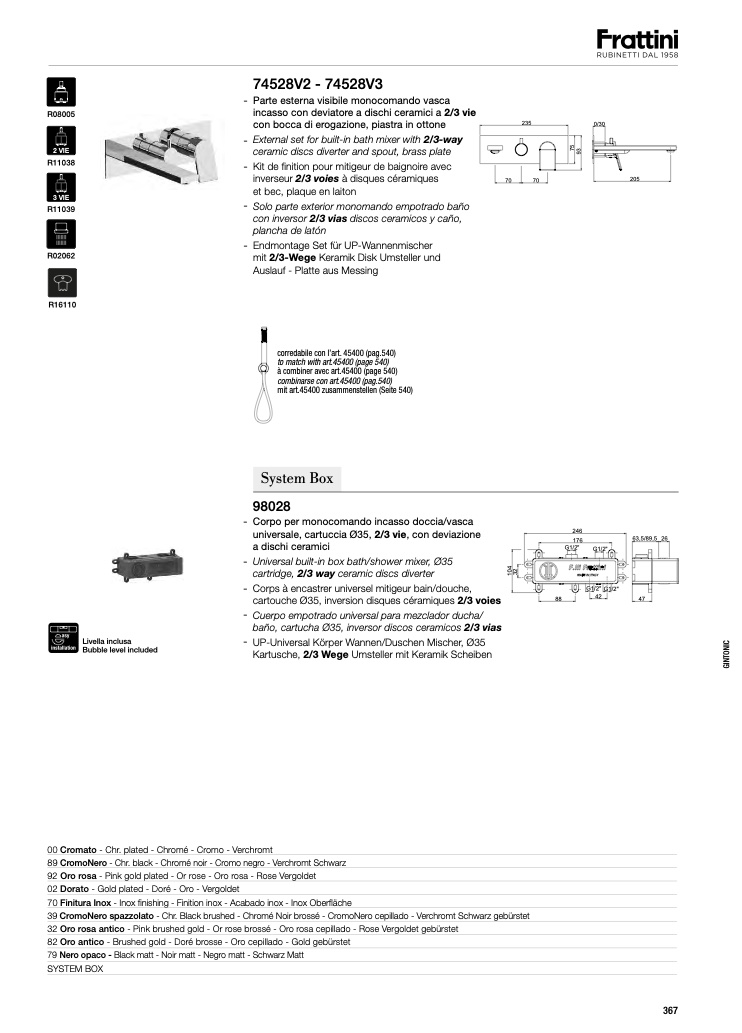

74528V2 - 74528V3
- Parte esterna visibile monocomando vasca
incasso con deviatore a dischi ceramici a 2/3 vie
con bocca di erogazione, piastra in ottone
- External set for built-in bath mixer with 2/3-way
ceramic discs diverter and spout, brass plate
- Kit de
finition pour mitigeur de baignoire avec
inverseur 2/3 voies
à disques céramiques
et bec, plaque en laiton
- Solo parte exterior monomando empotrado ba
ño
con inversor 2/3 vias discos ceramicos y ca
ño,
plancha de latón
- Endmontage Set für UP-Wannenmischer
mit 2/3-Wege Keramik Disk Umsteller und
Auslauf - Platte aus Messing
corredabile con l’art. 45400 (pag.540)
to match with art.45400 (page 540)
à combiner avec art.45400 (page 540)
combinarse con art.45400 (pag.540)
mit art.45400 zusammenstellen (Seite 540)
System Box
98028
- Corpo per monocomando incasso doccia/vasca
universale, cartuccia Ø35, 2/3 vie, con deviazione
a dischi ceramici
- Universal built-in box bath/shower mixer, Ø35
cartridge, 2/3 way ceramic discs diverter
- Corps à encastrer universel mitigeur bain/douche,
cartouche Ø35, inversion disques c
éramiques 2/3 voies
- Cuerpo empotrado universal para mezclador ducha/
baño, cartucha Ø35, inversor discos ceramicos 2/3 vias
- UP-Universal Körper Wannen/Duschen Mischer, Ø35
Kartusche, 2/3 Wege Umsteller mit Keramik Scheiben
235
70
70
0/30
Livella inclusa
Bubble level included
G1/2" G1/2"
88
42
47
C
I
N
O
T
N
I
G
00 Cromato - Chr. plated - Chromé - Cromo - Verchromt
89 CromoNero - Chr. black - Chrom
é noir - Cromo negro - Verchromt Schwarz
92 Oro rosa - Pink gold plated - Or rose - Oro rosa - Rose Vergoldet
02 Dorato - Gold plated - Dor
é - Oro - Vergoldet
70 Finitura Inox - Inox finishing - Finition inox - Acabado inox - Inox Ober
fläche
39 CromoNero spazzolato - Chr. Black brushed - Chromé Noir bross
é - CromoNero cepillado - Verchromt Schwarz gebürstet
32 Oro rosa antico - Pink brushed gold - Or rose brossé - Oro rosa cepillado - Rose Vergoldet gebürstet
82 Oro antico - Brushed gold - Dor
é brosse - Oro cepillado - Gold gebürstet
79 Nero opaco - Black matt - Noir matt - Negro matt - Schwarz Matt
SYSTEM BOX
4
0
1
2
3
246
176
G1/2"
63,5/89,5 26
5
7
3
9
G1/2"
205
367
