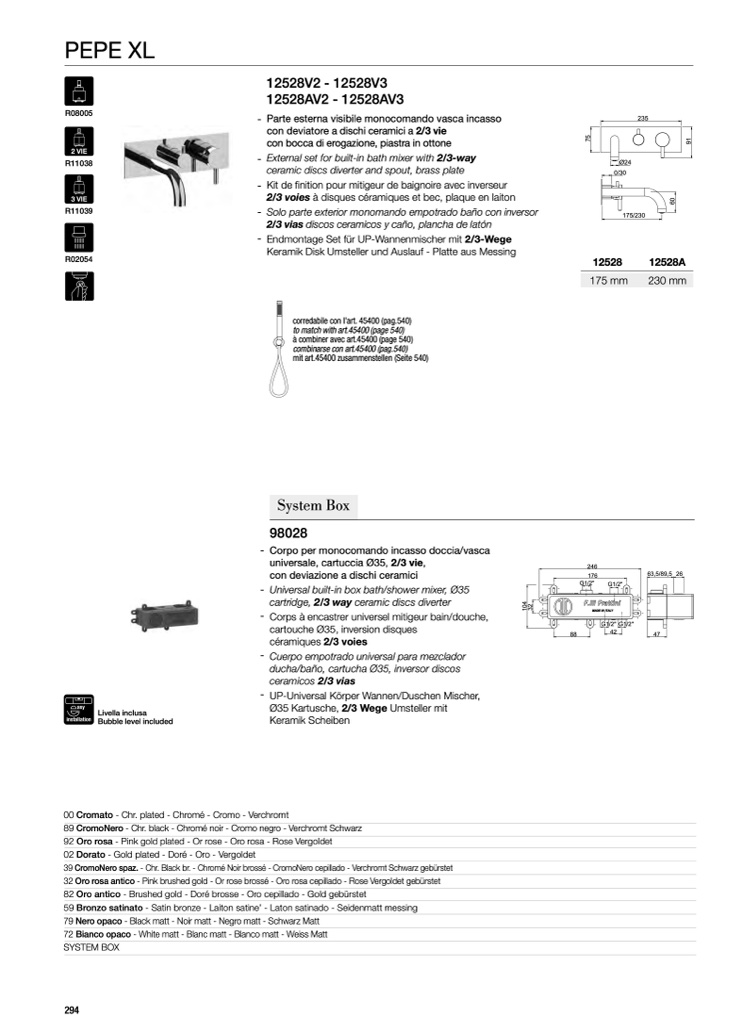

PEPE XL
R08005
2 VIE
R11038
3 VIE
R11039
R02054
12528V2 - 12528V3
12528AV2 - 12528AV3
- Parte esterna visibile monocomando vasca incasso
con deviatore a dischi ceramici a 2/3 vie
con bocca di erogazione, piastra in ottone
- External set for built-in bath mixer with 2/3-way
ceramic discs diverter and spout, brass plate
- Kit de finition pour mitigeur de baignoire avec inverseur
2/3 voies à disques c
éramiques et bec, plaque en laiton
- Solo parte exterior monomando empotrado ba
ño con inversor
2/3 vias discos ceramicos y caño, plancha de latón
- Endmontage Set für UP-Wannenmischer mit 2/3-Wege
Keramik Disk Umsteller und Auslauf - Platte aus Messing
corredabile con l’art. 45400 (pag.540)
to match with art.45400 (page 540)
à combiner avec art.45400 (page 540)
combinarse con art.45400 (pag.540)
mit art.45400 zusammenstellen (Seite 540)
235
5
7
1
9
Livella inclusa
Bubble level included
- Universal built-in box bath/shower mixer, Ø35
cartridge, 2/3 way ceramic discs diverter
4
0
1
2
3
- Corps à encastrer universel mitigeur bain/douche,
cartouche Ø35, inversion disques
88
c
éramiques 2/3 voies
- Cuerpo empotrado universal para mezclador
ducha/baño, cartucha Ø35, inversor discos
ceramicos 2/3 vias
- UP-Universal K
örper Wannen/Duschen Mischer,
Ø35 Kartusche, 2/3 Wege Umsteller mit
Keramik Scheiben
00 Cromato - Chr. plated - Chromé - Cromo - Verchromt
89 CromoNero - Chr. black - Chrom
é noir - Cromo negro - Verchromt Schwarz
92 Oro rosa - Pink gold plated - Or rose - Oro rosa - Rose Vergoldet
02 Dorato - Gold plated - Doré - Oro - Vergoldet
39 CromoNero spaz. - Chr. Black br. - Chromé Noir brossé - CromoNero cepillado - Verchromt Schwarz gebürstet
32 Oro rosa antico - Pink brushed gold - Or rose brossé - Oro rosa cepillado - Rose Vergoldet geb
ürstet
82 Oro antico - Brushed gold - Dor
é brosse - Oro cepillado - Gold gebürstet
59 Bronzo satinato - Satin bronze - Laiton satine’ - Laton satinado - Seidenmatt messing
79 Nero opaco - Black matt - Noir matt - Negro matt - Schwarz Matt
72 Bianco opaco - White matt - Blanc matt - Blanco matt - Weiss Matt
SYSTEM BOX
294
System Box
98028
- Corpo per monocomando incasso doccia/vasca
universale, cartuccia Ø35, 2/3 vie,
con deviazione a dischi ceramici
246
176
G1/2"
G1/2"
G1/2" G1/2"
42
63,5/89,5 26
47
12528
175 mm
Ø24
0/30
175/230
0
6
12528A
230 mm
