R08005

2 VIE

R11038

3 VIE

R11039

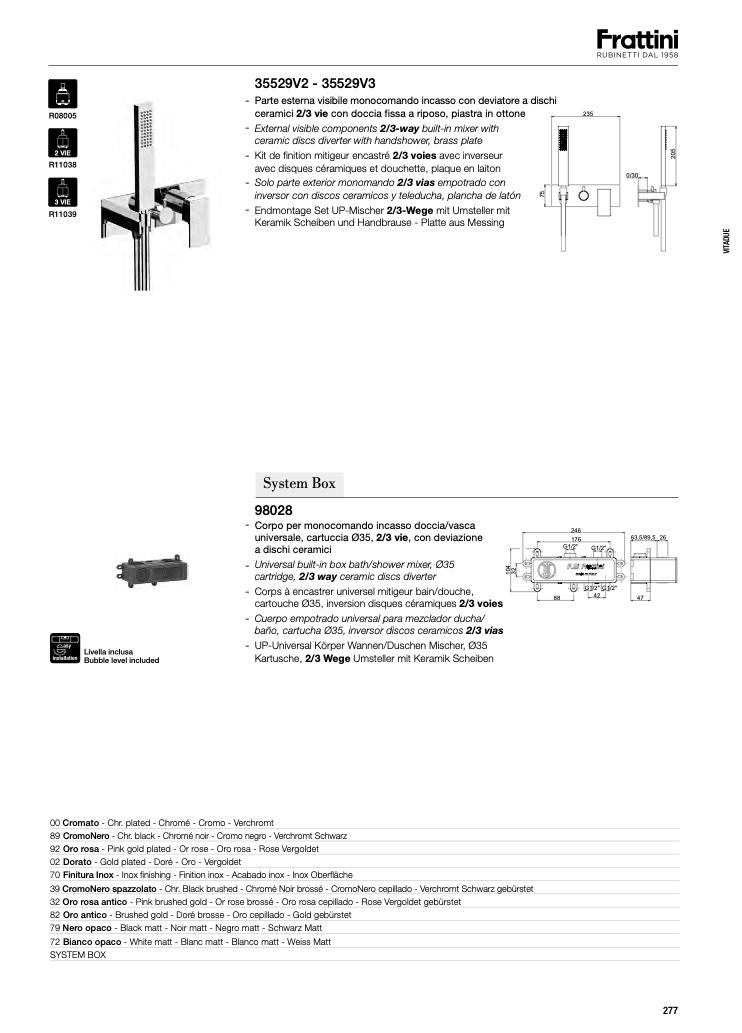

35529V2 - 35529V3

- Parte esterna visibile monocomando incasso con deviatore a dischi

ceramici 2/3 vie con doccia fissa a riposo, piastra in ottone

235

- External visible components 2/3-way built-in mixer with

ceramic discs diverter with handshower, brass plate

- Kit de finition mitigeur encastré 2/3 voies avec inverseur

avec disques c

éramiques et douchette, plaque en laiton

0/30

5

0

2

E

U

D

A

T

I

V

Livella inclusa

Bubble level included

- Solo parte exterior monomando 2/3 vias empotrado con

inversor con discos ceramicos y teleducha, plancha de lat

ón

- Endmontage Set UP-Mischer 2/3-Wege mit Umsteller mit

Keramik Scheiben und Handbrause - Platte aus Messing

5

7

System Box

98028

- Corpo per monocomando incasso doccia/vasca

universale, cartuccia Ø35, 2/3 vie, con deviazione

a dischi ceramici

246

176

63,5/89,5 26

G1/2"

G1/2"

- Universal built-in box bath/shower mixer, Ø35

cartridge, 2/3 way ceramic discs diverter

4

0

1

2

3

- Corps à encastrer universel mitigeur bain/douche,

cartouche Ø35, inversion disques c

éramiques 2/3 voies

- Cuerpo empotrado universal para mezclador ducha/

baño, cartucha Ø35, inversor discos ceramicos 2/3 vias

- UP-Universal Körper Wannen/Duschen Mischer, Ø35

Kartusche, 2/3 Wege Umsteller mit Keramik Scheiben

G1/2" G1/2"

88

42

47

00 Cromato - Chr. plated - Chrom

é - Cromo - Verchromt

89 CromoNero - Chr. black - Chromé noir - Cromo negro - Verchromt Schwarz

92 Oro rosa - Pink gold plated - Or rose - Oro rosa - Rose Vergoldet

02 Dorato - Gold plated - Doré - Oro - Vergoldet

70 Finitura Inox - Inox

finishing - Finition inox - Acabado inox - Inox Ober

fl

äche

39 CromoNero spazzolato - Chr. Black brushed - Chrom

é Noir brossé - CromoNero cepillado - Verchromt Schwarz gebürstet

32 Oro rosa antico - Pink brushed gold - Or rose brossé - Oro rosa cepillado - Rose Vergoldet gebürstet

82 Oro antico - Brushed gold - Dor

é brosse - Oro cepillado - Gold gebürstet

79 Nero opaco - Black matt - Noir matt - Negro matt - Schwarz Matt

72 Bianco opaco - White matt - Blanc matt - Blanco matt - Weiss Matt

SYSTEM BOX

277
