R08005

2 VIE

R11038

3 VIE

R11039

R02089

R16110

corredabile con l’art. 45400 (pag.540)

to match with art.45400 (page 540)

à combiner avec art.45400 (page 540)

combinarse con art.45400 (pag.540)

mit art.45400 zusammenstellen (Seite 540)

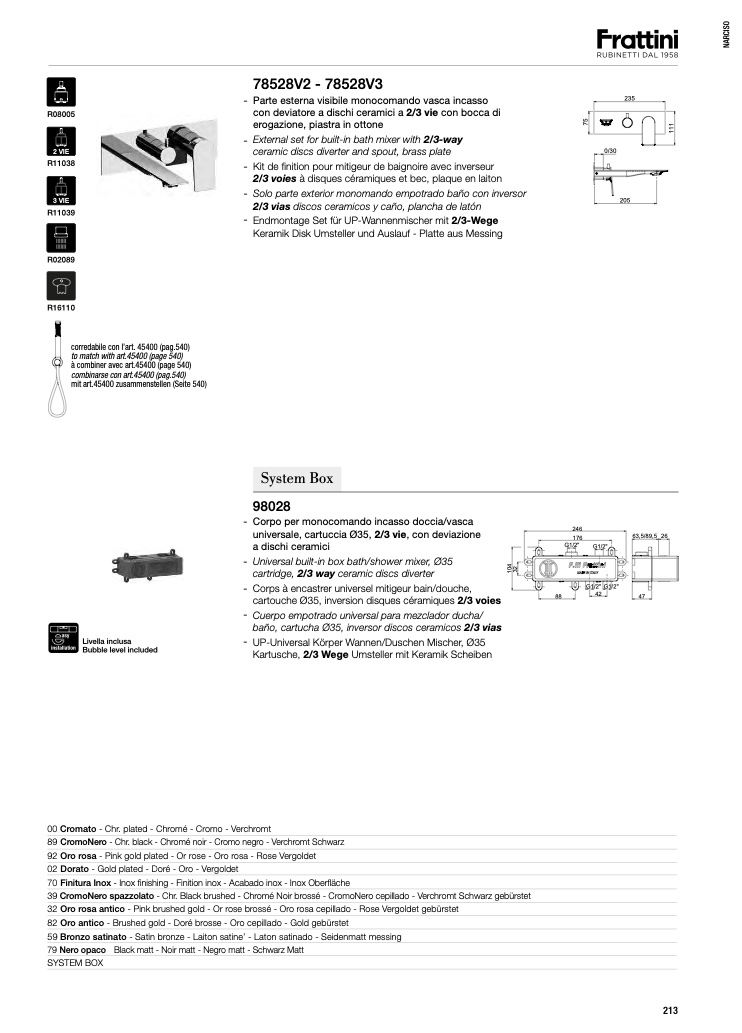

78528V2 - 78528V3

- Parte esterna visibile monocomando vasca incasso

235

con deviatore a dischi ceramici a 2/3 vie con bocca di

erogazione, piastra in ottone

5

7

1

- External set for built-in bath mixer with 2/3-way

ceramic discs diverter and spout, brass plate

0/30

- Kit de

finition pour mitigeur de baignoire avec inverseur

2/3 voies

à disques céramiques et bec, plaque en laiton

- Solo parte exterior monomando empotrado ba

ño con inversor

205

2/3 vias discos ceramicos y caño, plancha de lat

ón

- Endmontage Set für UP-Wannenmischer mit 2/3-Wege

Keramik Disk Umsteller und Auslauf - Platte aus Messing

Livella inclusa

Bubble level included

System Box

98028

- Corpo per monocomando incasso doccia/vasca

246

universale, cartuccia Ø35, 2/3 vie, con deviazione

176

63,5/89,5 26

a dischi ceramici

G1/2"

G1/2"

- Universal built-in box bath/shower mixer, Ø35

cartridge, 2/3 way ceramic discs diverter

4

0

1

2

3

- Corps à encastrer universel mitigeur bain/douche,

cartouche Ø35, inversion disques c

éramiques 2/3 voies

- Cuerpo empotrado universal para mezclador ducha/

baño, cartucha Ø35, inversor discos ceramicos 2/3 vias

- UP-Universal Körper Wannen/Duschen Mischer, Ø35

Kartusche, 2/3 Wege Umsteller mit Keramik Scheiben

G1/2" G1/2"

88

42

47

00 Cromato - Chr. plated - Chrom

é - Cromo - Verchromt

89 CromoNero - Chr. black - Chromé noir - Cromo negro - Verchromt Schwarz

92 Oro rosa - Pink gold plated - Or rose - Oro rosa - Rose Vergoldet

02 Dorato - Gold plated - Doré - Oro - Vergoldet

70 Finitura Inox - Inox

finishing - Finition inox - Acabado inox - Inox Ober

fl

äche

39 CromoNero spazzolato - Chr. Black brushed - Chrom

é Noir brossé - CromoNero cepillado - Verchromt Schwarz gebürstet

32 Oro rosa antico - Pink brushed gold - Or rose brossé - Oro rosa cepillado - Rose Vergoldet geb

ürstet

82 Oro antico - Brushed gold - Dor

é brosse - Oro cepillado - Gold gebürstet

59 Bronzo satinato - Satin bronze - Laiton satine’ - Laton satinado - Seidenmatt messing

79 Nero opaco

Black matt - Noir matt - Negro matt - Schwarz Matt

SYSTEM BOX

213
