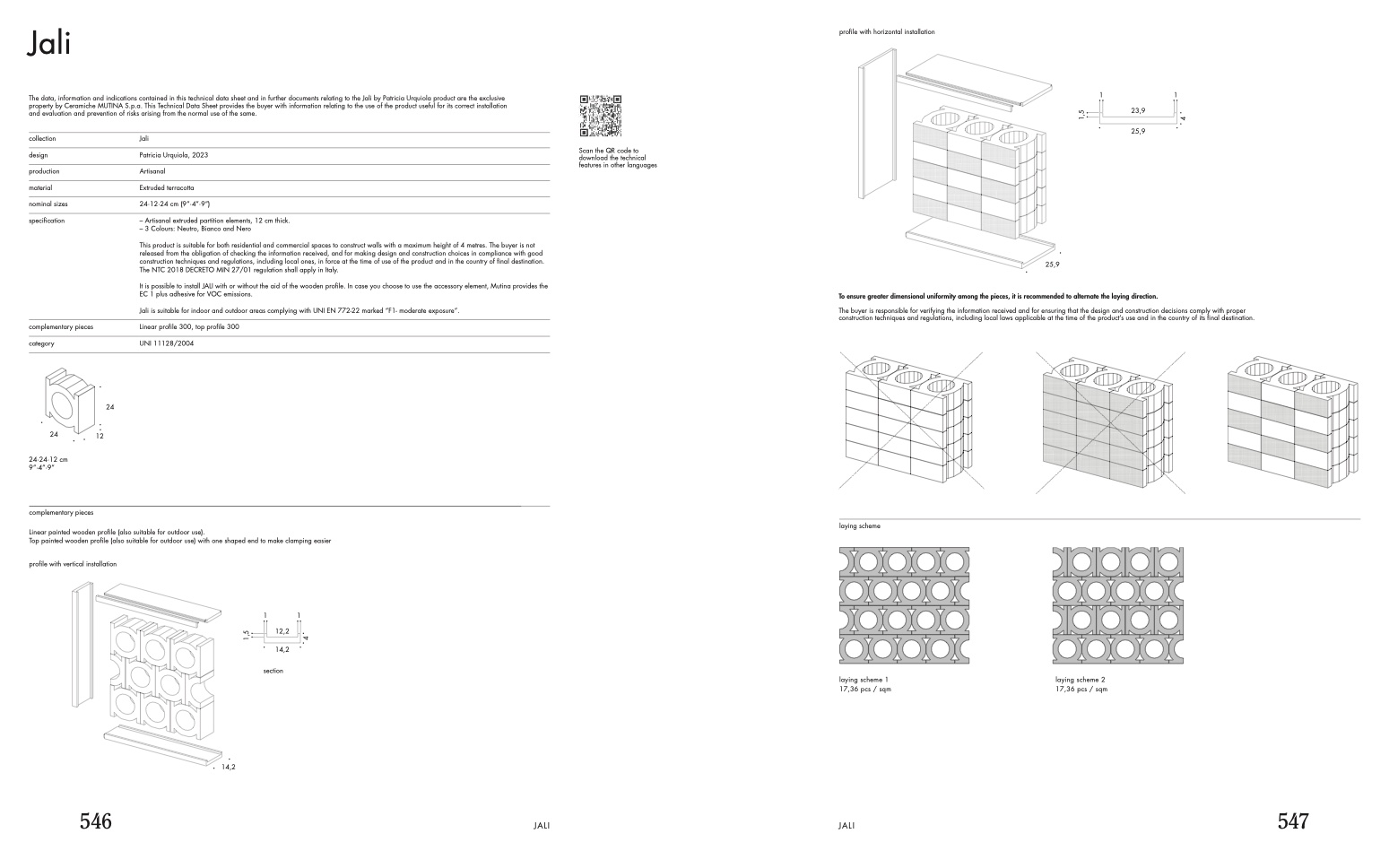

Jali

The data, information and indications contained in this technical data sheet and in further documents relating to the Jali by Patricia Urquiola product are the exclusive

property by Ceramiche MUTINA S.p.a. This Technical Data Sheet provides the buyer with information relating to the use of the product useful for its correct installation

and evaluation and prevention of risks arising from the normal use of the same.

profile with horizontal installation

collection

design

production

material

nominal sizes

specification

complementary pieces

category

24

24·24·12 cm

9”·4”·9”

complementary pieces

Jali

Patricia Urquiola, 2023

Artisanal

Extruded terracotta

24·12·24 cm (9”·4”·9”)

– Artisanal extruded partition elements, 12 cm thick.

– 3 Colours: Neutro, Bianco and Nero

This product is suitable for both residential and commercial spaces to construct walls with a maximum height of 4 metres. The buyer is not

released from the obligation of checking the information received, and for making design and construction choices in compliance with good

construction techniques and regulations, including local ones, in force at the time of use of the product and in the country of final destination.

The NTC 2018 DECRETO MIN 27/01 regulation shall apply in Italy.

It is possible to install JALI with or without the aid of the wooden profile. In case you choose to use the accessory element, Mutina provides the

EC 1 plus adhesive for VOC emissions.

Jali is suitable for indoor and outdoor areas complying with UNI EN 772-22 marked “F1- moderate exposure”.

Linear profile 300, top profile 300

UNI 11128/2004

1

1

23,9

5

,

1

4

25,9

24

12

Linear painted wooden profile (also suitable for outdoor use).

Top painted wooden profile (also suitable for outdoor use) with one shaped end to make clamping easier

laying scheme

profile with vertical installation

546

JALI

JALI

547

14,2

1

1

12,2

5

,

1

4

14,2

section

Scan the QR code to

download the technical

features in other languages

laying scheme 1

17,36 pcs / sqm

laying scheme 2

17,36 pcs / sqm

25,9

To ensure greater dimensional uniformity among the pieces, it is recommended to alternate the laying direction.

The buyer is responsible for verifying the information received and for ensuring that the design and construction decisions comply with proper

construction techniques and regulations, including local laws applicable at the time of the product’s use and in the country of its final destination.
