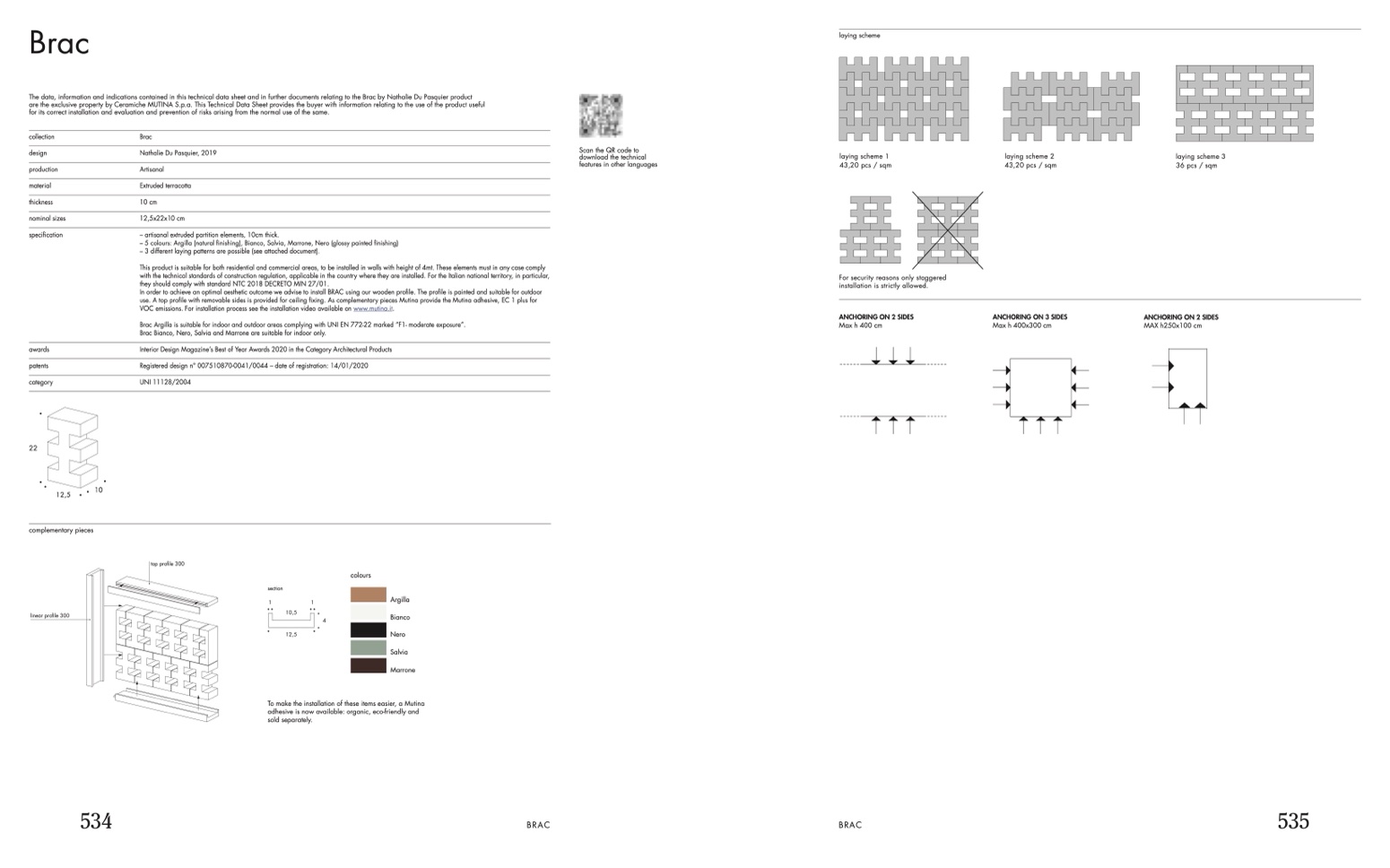

Brac
The data, information and indications contained in this technical data sheet and in further documents relating to the Brac by Nathalie Du Pasquier product
are the exclusive property by Ceramiche MUTINA S.p.a. This Technical Data Sheet provides the buyer with information relating to the use of the product useful
for its correct installation and evaluation and prevention of risks arising from the normal use of the same.
laying scheme
collection
design
production
material
thickness
nominal sizes
specification
awards
patents
category
22
complementary pieces
linear profile 300
Brac
Nathalie Du Pasquier, 2019
Artisanal
Extruded terracotta
10 cm
12,5x22x10 cm
– artisanal extruded partition elements, 10cm thick.
– 5 colours: Argilla (natural finishing), Bianco, Salvia, Marrone, Nero (glossy painted finishing)
– 3 different laying patterns are possible (see attached document).
This product is suitable for both residential and commercial areas, to be installed in walls with height of 4mt. These elements must in any case comply
with the technical standards of construction regulation, applicable in the country where they are installed. For the Italian national territory, in particular,
they should comply with standard NTC 2018 DECRETO MIN 27/01.
In order to achieve an optimal aesthetic outcome we advise to install BRAC using our wooden profile. The profile is painted and suitable for outdoor
use. A top profile with removable sides is provided for ceiling fixing. As complementary pieces Mutina provide the Mutina adhesive, EC 1 plus for
VOC emissions. For installation process see the installation video available on www.mutina.it.
Brac Argilla is suitable for indoor and outdoor areas complying with UNI EN 772-22 marked “F1- moderate exposure”.
Brac Bianco, Nero, Salvia and Marrone are suitable for indoor only.
Interior Design Magazine’s Best of Year Awards 2020 in the Category Architectural Products
Registered design n° 007510870-0041/0044 – date of registration: 14/01/2020
UNI 11128/2004
Scan the QR code to
download the technical
features in other languages
laying scheme 1
43,20 pcs / sqm
For security reasons only staggered
installation is strictly allowed.
ANCHORING ON 2 SIDES
Max h 400 cm
laying scheme 2
43,20 pcs / sqm
laying scheme 3
36 pcs / sqm
ANCHORING ON 3 SIDES
Max h 400x300 cm
ANCHORING ON 2 SIDES
MAX h250x100 cm
12,5
10
top profile 300
colours
section
1
1
10,5
4
12,5
Argilla
Bianco
Nero
Salvia
Marrone
To make the installation of these items easier, a Mutina
adhesive is now available: organic, eco-friendly and
sold separately.
534
BRAC
BRAC
535
