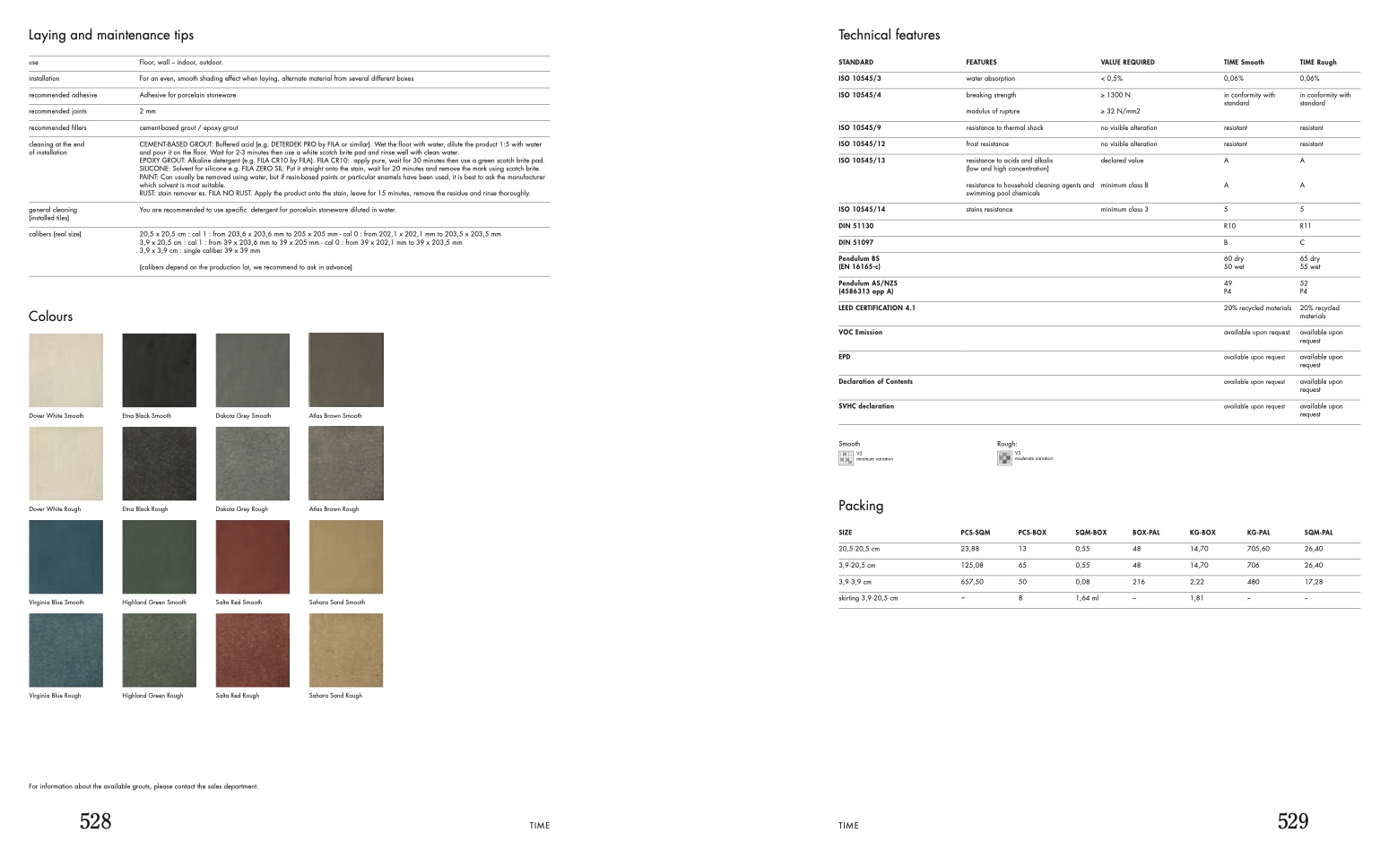

Laying and maintenance tips
Technical features
STANDARD
ISO 10545/3
ISO 10545/4
ISO 10545/9
ISO 10545/12
ISO 10545/13
ISO 10545/14
DIN 51130
DIN 51097
Pendulum BS
(EN 16165-c)
Pendulum AS/NZS
(4586313 app A)
LEED CERTIFICATION 4.1
VOC Emission
EPD
Declaration of Contents
SVHC declaration
Smooth
V2
minimum variation
Packing
SIZE
20,5·20,5 cm
3,9·20,5 cm
3,9·3,9 cm
skirting 3,9·20,5 cm
use
installation
recommended adhesive
recommended joints
recommended fillers
cleaning at the end
of installation
general cleaning
(installed tiles)
calibers (real size)
Colours
Dover White Smooth
Dover White Rough
Virginia Blue Smooth
Virginia Blue Rough
Floor, wall – indoor, outdoor.
For an even, smooth shading effect when laying, alternate material from several different boxes
Adhesive for porcelain stoneware
2 mm
cement-based grout / epoxy grout
CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA or similar). Wet the floor with water, dilute the product 1:5 with water
and pour it on the floor. Wait for 2-3 minutes then use a white scotch brite pad and rinse well with clean water.
EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.
SILICONE: Solvent for silicone e.g. FILA ZERO SIL. Put it straight onto the stain, wait for 20 minutes and remove the mark using scotch brite.
PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer
which solvent is most suitable.
RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.
You are recommended to use specific detergent for porcelain stoneware diluted in water.
20,5 x 20,5 cm : cal 1 : from 203,6 x 203,6 mm to 205 x 205 mm - cal 0 : from 202,1 x 202,1 mm to 203,5 x 203,5 mm
3,9 x 20,5 cm : cal 1 : from 39 x 203,6 mm to 39 x 205 mm - cal 0 : from 39 x 202,1 mm to 39 x 203,5 mm
3,9 x 3,9 cm : single caliber 39 x 39 mm
(calibers depend on the production lot, we recommend to ask in advance)
FEATURES
water absorption
breaking strength
modulus of rupture
resistance to thermal shock
frost resistance
resistance to acids and alkalis
(low and high concentration)
resistance to household cleaning agents and
swimming pool chemicals
stains resistance
VALUE REQUIRED
< 0,5%
≥ 1300 N
≥ 32 N/mm2
no visible alteration
no visible alteration
declared value
minimum class B
minimum class 3
TIME Smooth
0,06%
in conformity with
standard
resistant
resistant
A
A
5
R10
B
60 dry
50 wet
49
P4
20% recycled materials
available upon request
available upon request
available upon request
available upon request
TIME Rough
0,06%
in conformity with
standard
resistant
resistant
A
A
5
R11
C
65 dry
55 wet
52
P4
20% recycled
materials
available upon
request
available upon
request
available upon
request
available upon
request
SQM·PAL
26,40
26,40
17,28
–
Etna Black Smooth
Etna Black Rough
Highland Green Smooth
Highland Green Rough
Dakota Grey Smooth
Dakota Grey Rough
Salta Red Smooth
Salta Red Rough
Atlas Brown Smooth
Atlas Brown Rough
Sahara Sand Smooth
Sahara Sand Rough
PCS·SQM
23,88
125,08
657,50
-
Rough:
V3
moderate variation
PCS·BOX
13
65
50
8
SQM·BOX
0,55
0,55
0,08
1,64 ml
BOX·PAL
48
48
216
–
KG·BOX
14,70
14,70
2,22
1,81
KG·PAL
705,60
706
480
–
For information about the available grouts, please contact the sales department.
