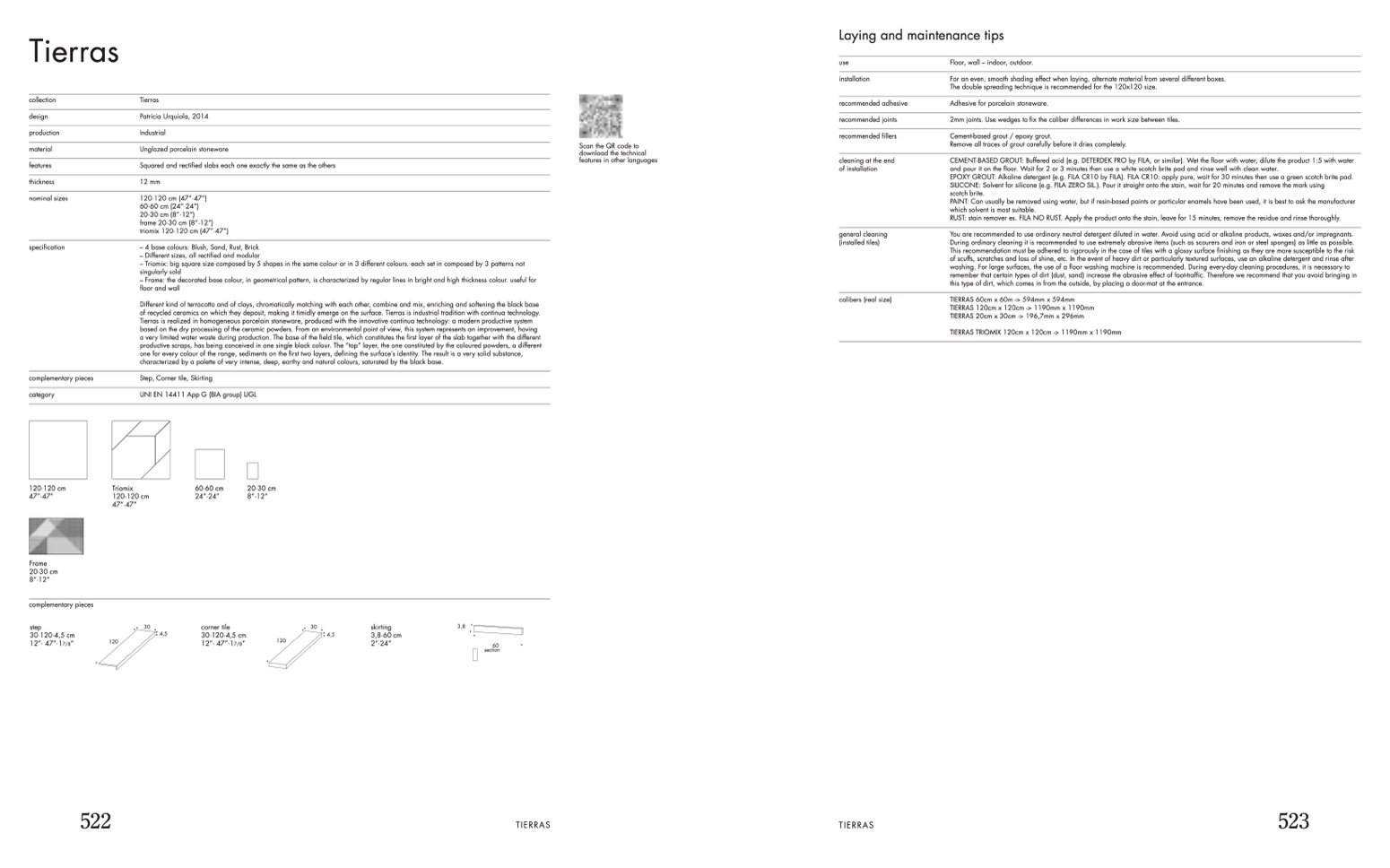

Tierras
collection
design
production
material
features
thickness
nominal sizes
specification
complementary pieces
category
120·120 cm
47”·47”
Frame
20·30 cm
8”·12”
complementary pieces
step
30·120·4,5 cm
12”· 47”·1
7/8
”
Laying and maintenance tips
Tierras
Patricia Urquiola, 2014
Industrial
Unglazed porcelain stoneware
Squared and rectified slabs each one exactly the same as the others
12 mm
120·120 cm (47”·47”)
60·60 cm (24”·24”)
20·30 cm (8”·12”)
frame 20·30 cm (8”·12”)
triomix 120·120 cm (47”·47”)
– 4 base colours: Blush, Sand, Rust, Brick
– Different sizes, all rectified and modular
– Triomix: big square size composed by 5 shapes in the same colour or in 3 different colours. each set in composed by 3 patterns not
singularly sold
– Frame: the decorated base colour, in geometrical pattern, is characterized by regular lines in bright and high thickness colour. useful for
floor and wall
Different kind of terracotta and of clays, chromatically matching with each other, combine and mix, enriching and softening the black base
of recycled ceramics on which they deposit, making it timidly emerge on the surface. Tierras is industrial tradition with continua technology.
Tierras is realized in homogeneous porcelain stoneware, produced with the innovative continua technology: a modern productive system
based on the dry processing of the ceramic powders. From an environmental point of view, this system represents an improvement, having
a very limited water waste during production. The base of the field tile, which constitutes the first layer of the slab together with the different
productive scraps, has being conceived in one single black colour. The “top” layer, the one constituted by the coloured powders, a different
one for every colour of the range, sediments on the first two layers, defining the surface’s identity. The result is a very solid substance,
characterized by a palette of very intense, deep, earthy and natural colours, saturated by the black base.
Scan the QR code to
download the technical
features in other languages
use
installation
recommended adhesive
recommended joints
recommended fillers
cleaning at the end
of installation
general cleaning
(installed tiles)
calibers (real size)
Floor, wall – indoor, outdoor.
For an even, smooth shading effect when laying, alternate material from several different boxes.
The double spreading technique is recommended for the 120x120 size.
Adhesive for porcelain stoneware.
2mm joints. Use wedges to fix the caliber differences in work size between tiles.
Cement-based grout / epoxy grout.
Remove all traces of grout carefully before it dries completely.
CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water
and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.
EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.
SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using
scotch brite.
PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer
which solvent is most suitable.
RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.
You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.
During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.
This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk
of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after
washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to
remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing in
this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.
TIERRAS 60cm x 60m -> 594mm x 594mm
TIERRAS 120cm x 120cm -> 1190mm x 1190mm
TIERRAS 20cm x 30cm -> 196,7mm x 296mm
TIERRAS TRIOMIX 120cm x 120cm -> 1190mm x 1190mm
Step, Corner tile, Skirting
UNI EN 14411 App G (BIA group) UGL
Triomix
120·120 cm
47”·47”
60·60 cm
24”·24”
corner tile
30·120·4,5 cm
12”· 47”·1
7/8
”
20·30 cm
8”·12”
522
TIERRAS
TIERRAS
523
120
120
60
section
30
30
skirting
3,8
3,8·60 cm
2”·24”
4,5
4,5
