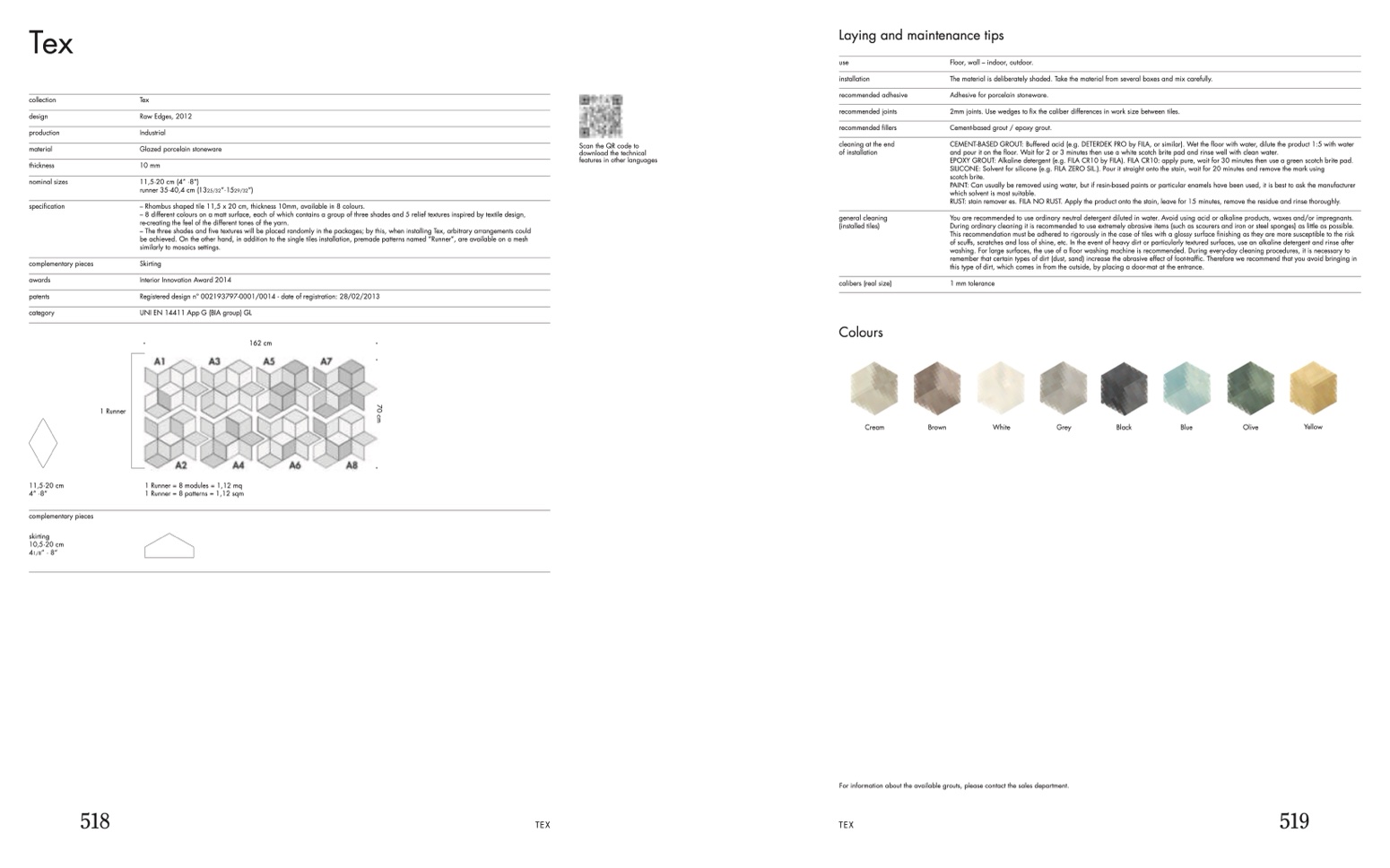

Tex

collection

design

production

material

thickness

nominal sizes

specification

complementary pieces

awards

patents

category

Laying and maintenance tips

11,5·20 cm

4” ·8”

1 Runner = 8 modules = 1,12 mq

1 Runner = 8 patterns = 1,12 sqm

complementary pieces

skirting

10,5·20 cm

4

1/8

” · 8”

518

TEX

TEX

519

1 Runner

Tex

Raw Edges, 2012

Industrial

Glazed porcelain stoneware

10 mm

11,5·20 cm (4” ·8”)

runner 35·40,4 cm (13

25/32

”·15

29/32

”)

– Rhombus shaped tile 11,5 x 20 cm, thickness 10mm, available in 8 colours.

– 8 different colours on a matt surface, each of which contains a group of three shades and 5 relief textures inspired by textile design,

re-creating the feel of the different tones of the yarn.

– The three shades and five textures will be placed randomly in the packages; by this, when installing Tex, arbitrary arrangements could

be achieved. On the other hand, in addition to the single tiles installation, premade patterns named “Runner”, are available on a mesh

similarly to mosaics settings.

Skirting

Interior Innovation Award 2014

Registered design n° 002193797-0001/0014 - date of registration: 28/02/2013

UNI EN 14411 App G (BIA group) GL

162 cm

Scan the QR code to

download the technical

features in other languages

use

installation

recommended adhesive

recommended joints

recommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Colours

Cream

Floor, wall – indoor, outdoor.

The material is deliberately shaded. Take the material from several boxes and mix carefully.

Adhesive for porcelain stoneware.

2mm joints. Use wedges to fix the caliber differences in work size between tiles.

Cement-based grout / epoxy grout.

CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water

and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.

EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.

SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using

scotch brite.

PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer

which solvent is most suitable.

RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.

You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.

During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.

This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk

of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after

washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to

remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing in

this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.

Brown

White

Grey

Black

Blue

Olive

Yellow

1 mm tolerance

For information about the available grouts, please contact the sales department.
