ROCK

AIR

WIND

Colours

HONEYCOMB A

Honeycomb A Bianco

HONEYCOMB B

Honeycomb B Bianco

ROCK

Rock Bianco

AIR

Air Bianco

WIND

Wind Bianco

net 29·29 cm

net 11

13/16

”·11

13/16

”

29 cm

net 30·30 cm

net 12”·12”

30 cm

1,1 cm

1,1 cm

net 25·25 cm

net 10”·10”

25 cm

29 cm

0,5·1,8 cm

0,5·1,8 cm

Honeycomb A Grigio

Honeycomb B Grigio

Rock Grigio

Air Grigio

Wind Grigio

Honeycomb A Fango

Honeycomb B Fango

Rock Fango

Air Fango

Wind Fango

Honeycomb A Nero

Honeycomb B Nero

Rock Nero

Air Nero

Wind Nero

Honeycomb A Blu

Honeycomb B Blu

Rock Blu

Air Blu

Wind Blu

Honeycomb A Verde

Honeycomb B Verde

Rock Verde

Air Verde

Wind Verde

Honeycomb A Rosa

Honeycomb B Rosa

Rock Rosa

Air Rosa

Wind Rosa

1,1 cm

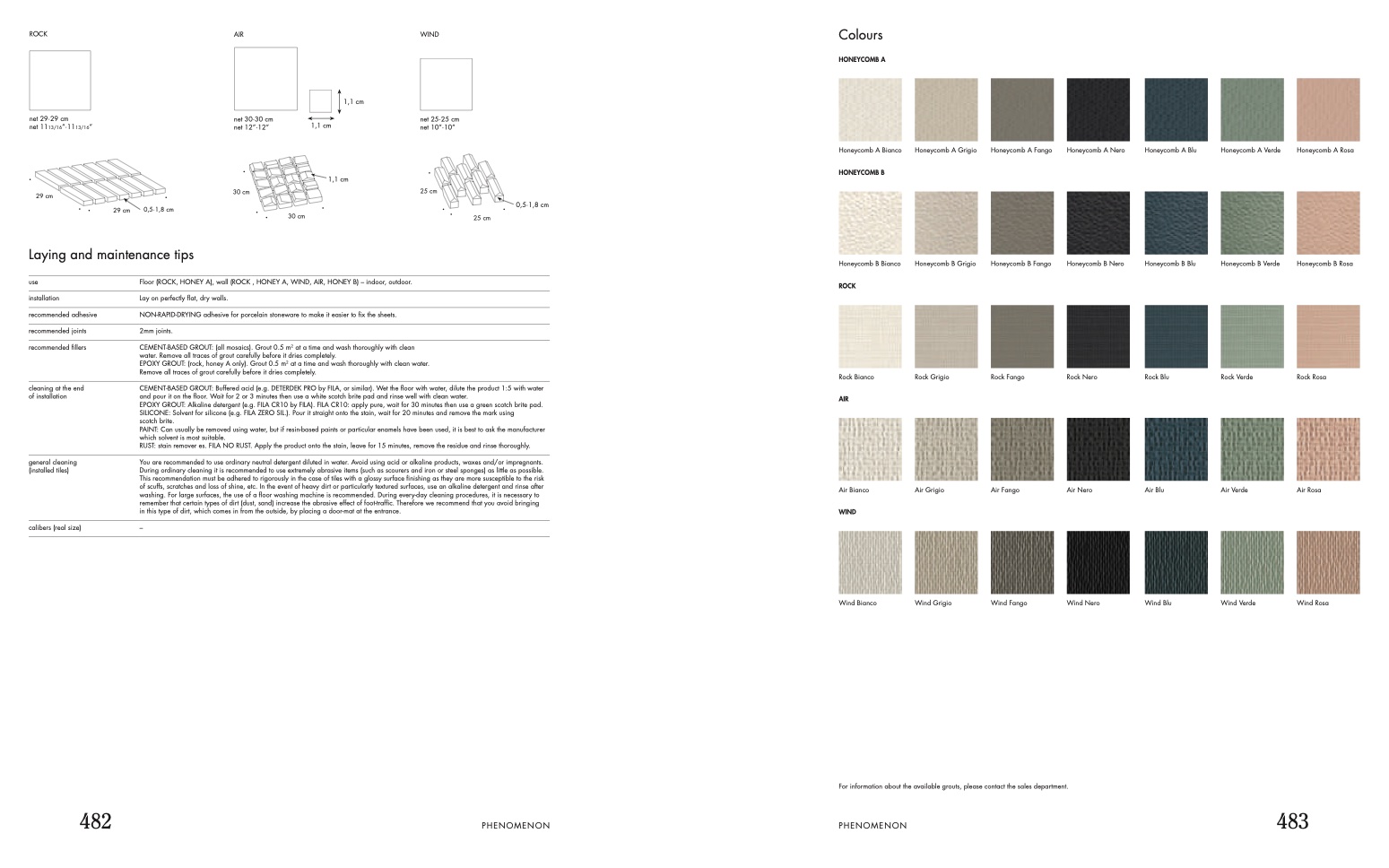

Laying and maintenance tips

30 cm

25 cm

use

installation

recommended adhesive

recommended joints

recommended fillers

cleaning at the end

of installation

general cleaning

(installed tiles)

calibers (real size)

Floor (ROCK, HONEY A), wall (ROCK , HONEY A, WIND, AIR, HONEY B) – indoor, outdoor.

Lay on perfectly flat, dry walls.

NON-RAPID-DRYING adhesive for porcelain stoneware to make it easier to fix the sheets.

2mm joints.

CEMENT-BASED GROUT: (all mosaics). Grout 0.5 m

2

at a time and wash thoroughly with clean

water. Remove all traces of grout carefully before it dries completely.

EPOXY GROUT: (rock, honey A only). Grout 0.5 m

2

at a time and wash thoroughly with clean water.

Remove all traces of grout carefully before it dries completely.

CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water

and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.

EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.

SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using

scotch brite.

PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer

which solvent is most suitable.

RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.

You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.

During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.

This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk

of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after

washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to

remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing

in this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.

–

482

PHENOMENON

PHENOMENON

483

For information about the available grouts, please contact the sales department.
