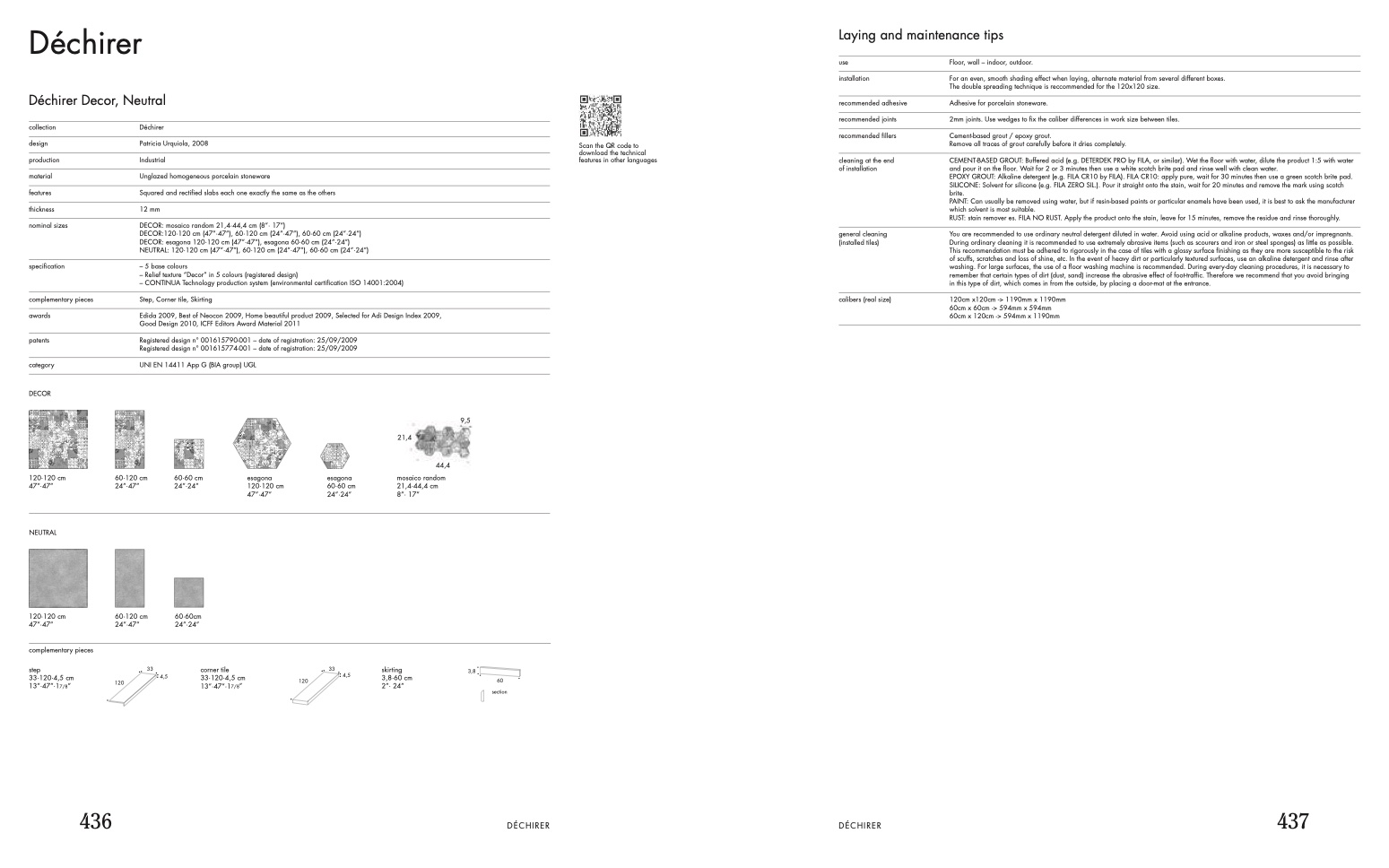

Déchirer
Déchirer Decor, Neutral
Laying and maintenance tips
collection
design
production
material
features
thickness
nominal sizes
specification
complementary pieces
awards
patents
category
DECOR
120·120 cm
47”·47”
NEUTRAL
120·120 cm
47”·47”
complementary pieces
step
33·120·4,5 cm
13”·47”·1
7/8
”
Déchirer
Patricia Urquiola, 2008
Industrial
Unglazed homogeneous porcelain stoneware
Squared and rectified slabs each one exactly the same as the others
12 mm
DECOR: mosaico random 21,4·44,4 cm (8”· 17”)
DECOR:120·120 cm (47”·47”), 60·120 cm (24”·47”), 60·60 cm (24”·24”)
DECOR: esagona 120·120 cm (47”·47”), esagona 60·60 cm (24”·24”)
NEUTRAL: 120·120 cm (47”·47”), 60·120 cm (24”·47”), 60·60 cm (24”·24”)
– 5 base colours
– Relief texture “Decor” in 5 colours (registered design)
– CONTINUA Technology production system (environmental certification ISO 14001:2004)
Step, Corner tile, Skirting
Edida 2009, Best of Neocon 2009, Home beautiful product 2009, Selected for Adi Design Index 2009,
Good Design 2010, ICFF Editors Award Material 2011
Registered design n° 001615790-001 – date of registration: 25/09/2009
Registered design n° 001615774-001 – date of registration: 25/09/2009
Scan the QR code to
download the technical
features in other languages
use
installation
recommended adhesive
recommended joints
recommended fillers
cleaning at the end
of installation
general cleaning
(installed tiles)
calibers (real size)
Floor, wall – indoor, outdoor.
For an even, smooth shading effect when laying, alternate material from several different boxes.
The double spreading technique is reccommended for the 120x120 size.
Adhesive for porcelain stoneware.
2mm joints. Use wedges to fix the caliber differences in work size between tiles.
Cement-based grout / epoxy grout.
Remove all traces of grout carefully before it dries completely.
CEMENT-BASED GROUT: Buffered acid (e.g. DETERDEK PRO by FILA, or similar). Wet the floor with water, dilute the product 1:5 with water
and pour it on the floor. Wait for 2 or 3 minutes then use a white scotch brite pad and rinse well with clean water.
EPOXY GROUT: Alkaline detergent (e.g. FILA CR10 by FILA). FILA CR10: apply pure, wait for 30 minutes then use a green scotch brite pad.
SILICONE: Solvent for silicone (e.g. FILA ZERO SIL.). Pour it straight onto the stain, wait for 20 minutes and remove the mark using scotch
brite.
PAINT: Can usually be removed using water, but if resin-based paints or particular enamels have been used, it is best to ask the manufacturer
which solvent is most suitable.
RUST: stain remover es. FILA NO RUST. Apply the product onto the stain, leave for 15 minutes, remove the residue and rinse thoroughly.
You are recommended to use ordinary neutral detergent diluted in water. Avoid using acid or alkaline products, waxes and/or impregnants.
During ordinary cleaning it is recommended to use extremely abrasive items (such as scourers and iron or steel sponges) as little as possible.
This recommendation must be adhered to rigorously in the case of tiles with a glossy surface finishing as they are more susceptible to the risk
of scuffs, scratches and loss of shine, etc. In the event of heavy dirt or particularly textured surfaces, use an alkaline detergent and rinse after
washing. For large surfaces, the use of a floor washing machine is recommended. During every-day cleaning procedures, it is necessary to
remember that certain types of dirt (dust, sand) increase the abrasive effect of foot-traffic. Therefore we recommend that you avoid bringing
in this type of dirt, which comes in from the outside, by placing a door-mat at the entrance.
120cm x120cm -> 1190mm x 1190mm
60cm x 60cm -> 594mm x 594mm
60cm x 120cm -> 594mm x 1190mm
UNI EN 14411 App G (BIA group) UGL
21,4
9,5
44,4
60·120
24”·47”
cm
60·60 cm
24”·24”
60·60cm
24”·24”
corner tile
33·120·4,5 cm
13”·47”·1
7/8
”
esagona
120·120 cm
47”·47”
esagona
60·60 cm
24”·24”
mosaico random
21,4·44,4 cm
8”· 17”
60·120 cm
24”·47”
436
DÉCHIRER
DÉCHIRER
437
120
4,5
120
33
33
4,5
skirting
3,8·60 cm
2”· 24”
3,8
60
section
