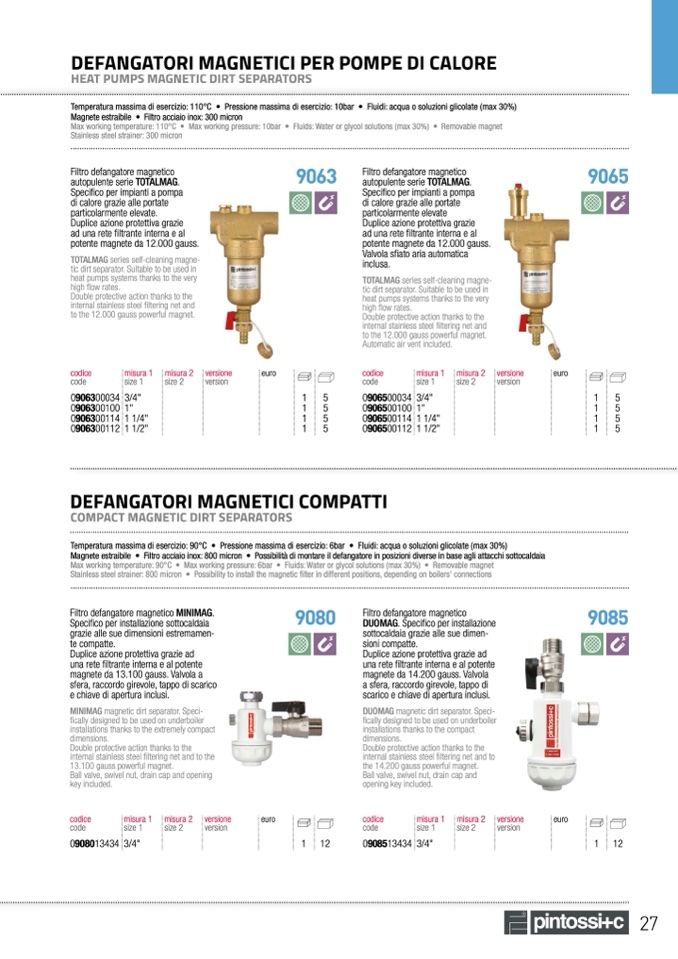

DEFANGATORI MAGNETICI PER POMPE DI CALORE

HEAT PUMPS MAGNETIC DIRT SEPARATORS

Temperatura massima di esercizio: 110°C • Pressione massima di esercizio: 10bar • Fluidi: acqua o soluzioni glicolate (max 30%)

Magnete estraibile • Filtro acciaio inox: 300 micron

Max working temperature: 110°C • Max working pressure: 10bar • Fluids: Water or glycol solutions (max 30%) • Removable magnet

Stainless steel strainer: 300 micron

Filtro defangatore magnetico

autopulente serie TOTALMAG.

Speci

fico per impianti a pompa

di calore grazie alle portate

particolarmente elevate.

Duplice azione protettiva grazie

ad una rete filtrante interna e al

potente magnete da 12.000 gauss.

TOTALMAG series self-cleaning magne-

tic dirt separator. Suitable to be used in

heat pumps systems thanks to the very

high flow rates.

Double protective action thanks to the

internal stainless steel

filtering net and

to the 12.000 gauss powerful magnet.

9063

Filtro defangatore magnetico

autopulente serie TOTALMAG.

Speci

fico per impianti a pompa

di calore grazie alle portate

particolarmente elevate

Duplice azione protettiva grazie

ad una rete filtrante interna e al

potente magnete da 12.000 gauss.

Valvola s

fiato aria automatica

inclusa.

TOTALMAG series self-cleaning magne-

tic dirt separator. Suitable to be used in

heat pumps systems thanks to the very

high flow rates.

Double protective action thanks to the

internal stainless steel

filtering net and

to the 12.000 gauss powerful magnet.

Automatic air vent included.

9065

codice

code

0906300034

0906300100

0906300114

0906300112

misura 1

size 1

misura 2

size 2

versione

version

euro

codice

code

0906500034

0906500100

0906500114

0906500112

misura 1 misura 2

size 1

size 2

versione

version

euro

3/4"

1

5

1"

1

5

1 1/4"

1

5

1 1/2"

1

5

3/4"

1

5

1"

1

5

DEFANGATORI MAGNETICI COMPATTI

COMPACT MAGNETIC DIRT SEPARATORS

1 1/4"

1 1/2"

1

5

1

5

Temperatura massima di esercizio: 90°C • Pressione massima di esercizio: 6bar • Fluidi: acqua o soluzioni glicolate (max 30%)

Magnete estraibile • Filtro acciaio inox: 800 micron • Possibilità di montare il defangatore in posizioni diverse in base agli attacchi sottocaldaia

Max working temperature: 90°C • Max working pressure: 6bar • Fluids: Water or glycol solutions (max 30%) • Removable magnet

Stainless steel strainer: 800 micron • Possibility to install the magnetic filter in different positions, depending on boilers' connections

Filtro defangatore magnetico MINIMAG.

Speci

fico per installazione sottocaldaia

grazie alle sue dimensioni estremamen-

te compatte.

Duplice azione protettiva grazie ad

una rete

filtrante interna e al potente

magnete da 13.100 gauss. Valvola a

sfera, raccordo girevole, tappo di scarico

e chiave di apertura inclusi.

MINIMAG magnetic dirt separator. Speci-

fically designed to be used on underboiler

installations thanks to the extremely compact

dimensions.

Double protective action thanks to the

internal stainless steel filtering net and to the

13.100 gauss powerful magnet.

Ball valve, swivel nut, drain cap and opening

key included.

9080

Filtro defangatore magnetico

DUOMAG. Speci

fico per installazione

sottocaldaia grazie alle sue dimen-

sioni compatte.

Duplice azione protettiva grazie ad

una rete

filtrante interna e al potente

magnete da 14.200 gauss. Valvola

a sfera, raccordo girevole, tappo di

scarico e chiave di apertura inclusi.

DUOMAG magnetic dirt separator. Speci-

fically designed to be used on underboiler

installations thanks to the compact

dimensions.

Double protective action thanks to the

internal stainless steel

filtering net and to

the 14.200 gauss powerful magnet.

Ball valve, swivel nut, drain cap and

opening key included.

9085

codice

code

misura 1

size 1

misura 2

size 2

versione

euro

version

codice

misura 1

code

size 1

0908513434 3/4"

misura 2

size 2

versione

version

euro

0908013434 3/4"

1

12

1 12
